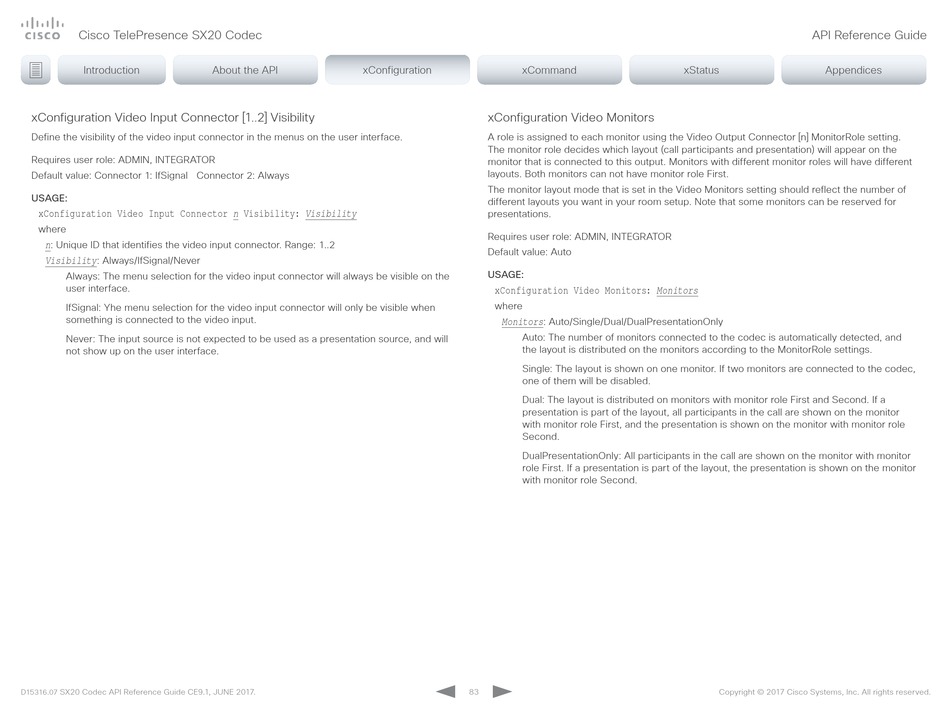

xConfiguration Video Input Connector [1..2] Visibility

Define the visibility of the video input connector in the menus on the user interface.
Requires user role: ADMIN, INTEGRATOR
Default value: Connector 1: IfSignal Connector 2: Always
USAGE:
xConfiguration Video Input Connector
where
: Unique ID that identifies the video input connector. Range: 1..2
n
: Always/IfSignal/Never
Visibility
Always: The menu selection for the video input connector will always be visible on the
user interface.
IfSignal: Yhe menu selection for the video input connector will only be visible when
something is connected to the video input.
Never: The input source is not expected to be used as a presentation source, and will
not show up on the user interface.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
n Visibility: Visibility
xCommand

xConfiguration Video Monitors

A role is assigned to each monitor using the Video Output Connector [n] MonitorRole setting.
The monitor role decides which layout (call participants and presentation) will appear on the
monitor that is connected to this output. Monitors with different monitor roles will have different
layouts. Both monitors can not have monitor role First.
The monitor layout mode that is set in the Video Monitors setting should reflect the number of
different layouts you want in your room setup. Note that some monitors can be reserved for
presentations.
Requires user role: ADMIN, INTEGRATOR
Default value: Auto
USAGE:
xConfiguration Video Monitors:
where
: Auto/Single/Dual/DualPresentationOnly
Monitors
Auto: The number of monitors connected to the codec is automatically detected, and
the layout is distributed on the monitors according to the MonitorRole settings.
Single: The layout is shown on one monitor. If two monitors are connected to the codec,
one of them will be disabled.
Dual: The layout is distributed on monitors with monitor role First and Second. If a
presentation is part of the layout, all participants in the call are shown on the monitor
with monitor role First, and the presentation is shown on the monitor with monitor role
Second.
DualPresentationOnly: All participants in the call are shown on the monitor with monitor
role First. If a presentation is part of the layout, the presentation is shown on the monitor
with monitor role Second.
