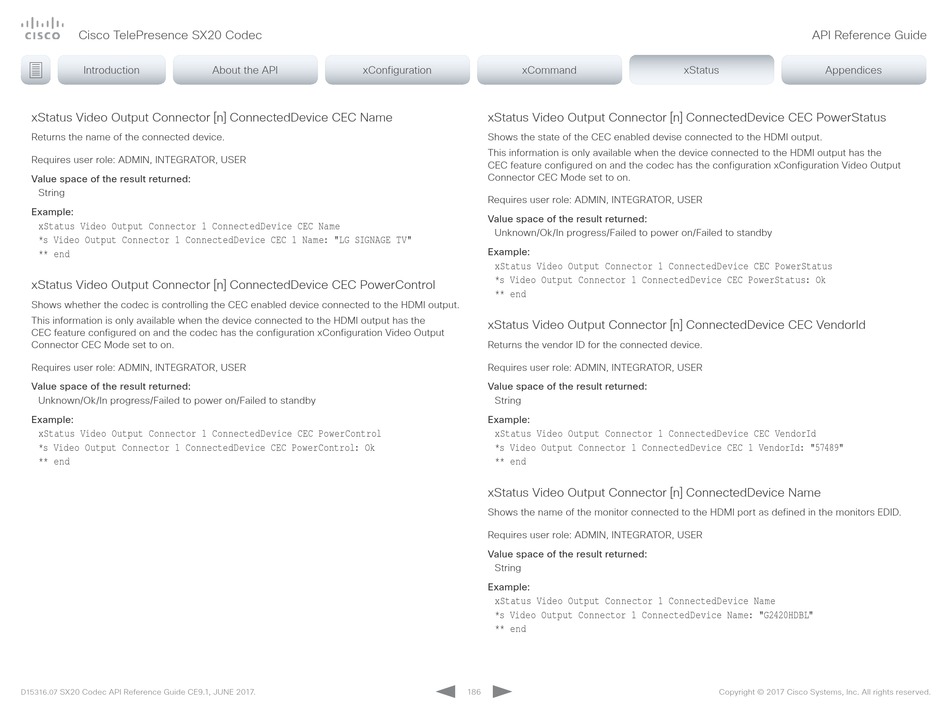

xStatus Video Output Connector [n] ConnectedDevice CEC Name

Returns the name of the connected device.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
String
Example:
xStatus Video Output Connector 1 ConnectedDevice CEC Name
*s Video Output Connector 1 ConnectedDevice CEC 1 Name: "LG SIGNAGE TV"
** end

xStatus Video Output Connector [n] ConnectedDevice CEC PowerControl

Shows whether the codec is controlling the CEC enabled device connected to the HDMI output.
This information is only available when the device connected to the HDMI output has the
CEC feature configured on and the codec has the configuration xConfiguration Video Output
Connector CEC Mode set to on.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Unknown/Ok/In progress/Failed to power on/Failed to standby
Example:
xStatus Video Output Connector 1 ConnectedDevice CEC PowerControl
*s Video Output Connector 1 ConnectedDevice CEC PowerControl: Ok
** end
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xCommand

xStatus Video Output Connector [n] ConnectedDevice CEC PowerStatus

Shows the state of the CEC enabled devise connected to the HDMI output.
This information is only available when the device connected to the HDMI output has the
CEC feature configured on and the codec has the configuration xConfiguration Video Output
Connector CEC Mode set to on.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
Unknown/Ok/In progress/Failed to power on/Failed to standby
Example:
xStatus Video Output Connector 1 ConnectedDevice CEC PowerStatus
*s Video Output Connector 1 ConnectedDevice CEC PowerStatus: Ok
** end

xStatus Video Output Connector [n] ConnectedDevice CEC VendorId

Returns the vendor ID for the connected device.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
String
Example:
xStatus Video Output Connector 1 ConnectedDevice CEC VendorId
*s Video Output Connector 1 ConnectedDevice CEC 1 VendorId: "57489"
** end

xStatus Video Output Connector [n] ConnectedDevice Name

Shows the name of the monitor connected to the HDMI port as defined in the monitors EDID.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
String
Example:
xStatus Video Output Connector 1 ConnectedDevice Name
*s Video Output Connector 1 ConnectedDevice Name: "G2420HDBL"
** end
