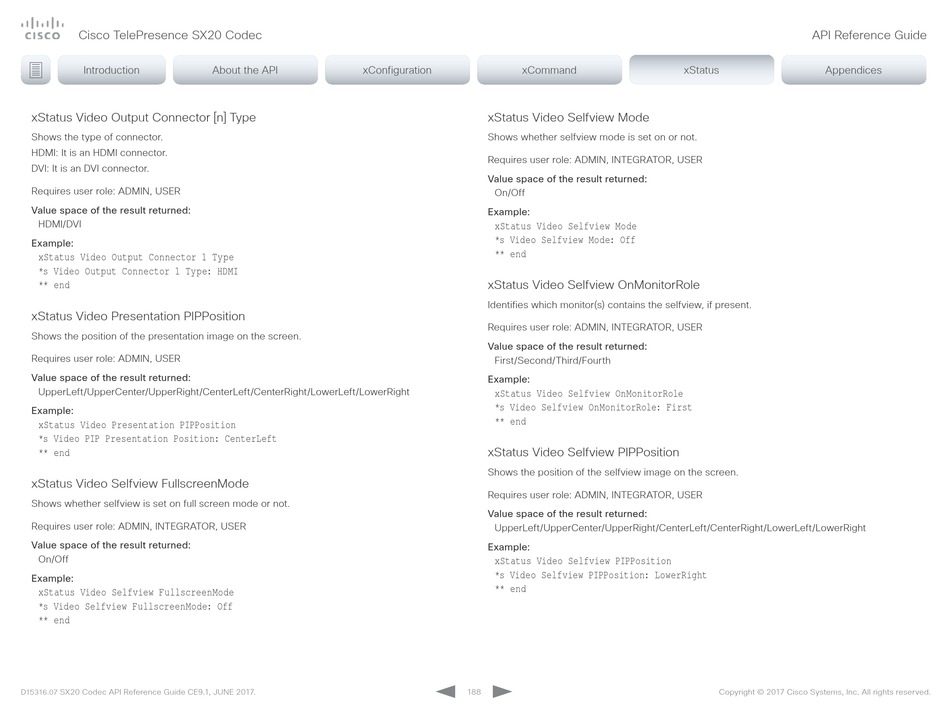

xStatus Video Output Connector [n] Type

Shows the type of connector.
HDMI: It is an HDMI connector.
DVI: It is an DVI connector.
Requires user role: ADMIN, USER
Value space of the result returned:
HDMI/DVI
Example:
xStatus Video Output Connector 1 Type
*s Video Output Connector 1 Type: HDMI
** end

xStatus Video Presentation PIPPosition

Shows the position of the presentation image on the screen.
Requires user role: ADMIN, USER
Value space of the result returned:
UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/LowerRight
Example:
xStatus Video Presentation PIPPosition
*s Video PIP Presentation Position: CenterLeft
** end

xStatus Video Selfview FullscreenMode

Shows whether selfview is set on full screen mode or not.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
On/Off
Example:
xStatus Video Selfview FullscreenMode
*s Video Selfview FullscreenMode: Off
** end
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xCommand

xStatus Video Selfview Mode

Shows whether selfview mode is set on or not.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
On/Off
Example:
xStatus Video Selfview Mode
*s Video Selfview Mode: Off
** end

xStatus Video Selfview OnMonitorRole

Identifies which monitor(s) contains the selfview, if present.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
First/Second/Third/Fourth
Example:
xStatus Video Selfview OnMonitorRole
*s Video Selfview OnMonitorRole: First
** end

xStatus Video Selfview PIPPosition

Shows the position of the selfview image on the screen.
Requires user role: ADMIN, INTEGRATOR, USER
Value space of the result returned:
UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/LowerRight
Example:
xStatus Video Selfview PIPPosition
*s Video Selfview PIPPosition: LowerRight
** end
