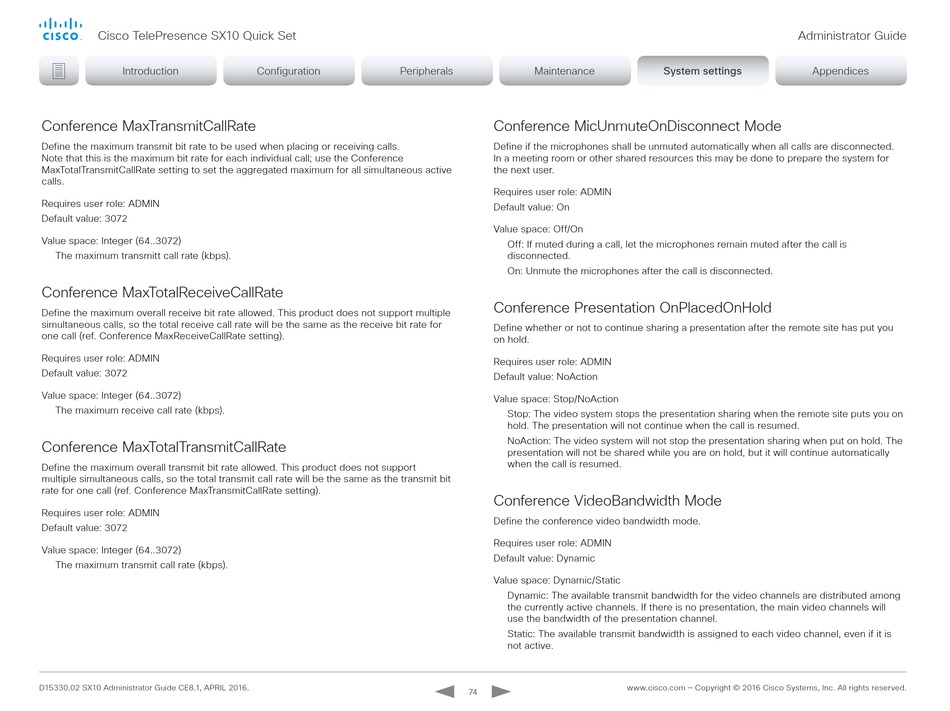

Conference MaxTransmitCallRate

Define the maximum transmit bit rate to be used when placing or receiving calls.
Note that this is the maximum bit rate for each individual call; use the Conference
MaxTotalTransmitCallRate setting to set the aggregated maximum for all simultaneous active
calls.
Requires user role: ADMIN
Default value: 3072
Value space: Integer (64..3072)
The maximum transmitt call rate (kbps).

Conference MaxTotalReceiveCallRate

Define the maximum overall receive bit rate allowed. This product does not support multiple
simultaneous calls, so the total receive call rate will be the same as the receive bit rate for
one call (ref. Conference MaxReceiveCallRate setting).
Requires user role: ADMIN
Default value: 3072
Value space: Integer (64..3072)
The maximum receive call rate (kbps).

Conference MaxTotalTransmitCallRate

Define the maximum overall transmit bit rate allowed. This product does not support
multiple simultaneous calls, so the total transmit call rate will be the same as the transmit bit
rate for one call (ref. Conference MaxTransmitCallRate setting).
Requires user role: ADMIN
Default value: 3072
Value space: Integer (64..3072)
The maximum transmit call rate (kbps).
D15330.02 SX10 Administrator Guide CE8.1, APRIL 2016.
Configuration Peripherals Maintenance

Conference MicUnmuteOnDisconnect Mode

Define if the microphones shall be unmuted automatically when all calls are disconnected.
In a meeting room or other shared resources this may be done to prepare the system for
the next user.
Requires user role: ADMIN
Default value: On
Value space: Off/On
Off: If muted during a call, let the microphones remain muted after the call is
disconnected.
On: Unmute the microphones after the call is disconnected.

Conference Presentation OnPlacedOnHold

Define whether or not to continue sharing a presentation after the remote site has put you
on hold.
Requires user role: ADMIN
Default value: NoAction
Value space: Stop/NoAction
Stop: The video system stops the presentation sharing when the remote site puts you on
hold. The presentation will not continue when the call is resumed.
NoAction: The video system will not stop the presentation sharing when put on hold. The
presentation will not be shared while you are on hold, but it will continue automatically
when the call is resumed.

Conference VideoBandwidth Mode

Define the conference video bandwidth mode.
Requires user role: ADMIN
Default value: Dynamic
Value space: Dynamic/Static
Dynamic: The available transmit bandwidth for the video channels are distributed among
the currently active channels. If there is no presentation, the main video channels will
use the bandwidth of the presentation channel.
Static: The available transmit bandwidth is assigned to each video channel, even if it is
not active.
