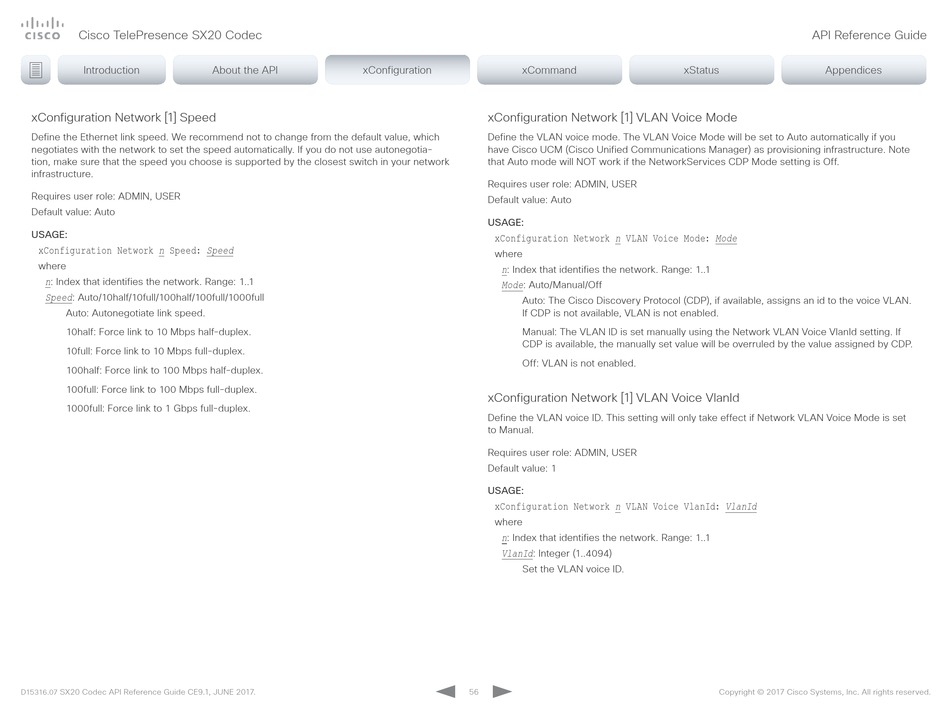

xConfiguration Network [1] Speed

Define the Ethernet link speed. We recommend not to change from the default value, which
negotiates with the network to set the speed automatically. If you do not use autonegotia-
tion, make sure that the speed you choose is supported by the closest switch in your network
infrastructure.
Requires user role: ADMIN, USER
Default value: Auto
USAGE:
xConfiguration Network n Speed:
where
: Index that identifies the network. Range: 1..1
n
: Auto/10half/10full/100half/100full/1000full
Speed
Auto: Autonegotiate link speed.
10half: Force link to 10 Mbps half-duplex.
10full: Force link to 10 Mbps full-duplex.
100half: Force link to 100 Mbps half-duplex.
100full: Force link to 100 Mbps full-duplex.
1000full: Force link to 1 Gbps full-duplex.
SX20 Codec API Reference Guide CE9.1, JUNE 2017.
D15316.07
About the API xConfiguration xConfiguration
Speed
xCommand

xConfiguration Network [1] VLAN Voice Mode

Define the VLAN voice mode. The VLAN Voice Mode will be set to Auto automatically if you
have Cisco UCM (Cisco Unified Communications Manager) as provisioning infrastructure. Note
that Auto mode will NOT work if the NetworkServices CDP Mode setting is Off.
Requires user role: ADMIN, USER
Default value: Auto
USAGE:
xConfiguration Network n VLAN Voice Mode:
where
: Index that identifies the network. Range: 1..1
n
: Auto/Manual/Off
Mode
Auto: The Cisco Discovery Protocol (CDP), if available, assigns an id to the voice VLAN.
If CDP is not available, VLAN is not enabled.
Manual: The VLAN ID is set manually using the Network VLAN Voice VlanId setting. If
CDP is available, the manually set value will be overruled by the value assigned by CDP.
Off: VLAN is not enabled.

xConfiguration Network [1] VLAN Voice VlanId

Define the VLAN voice ID. This setting will only take effect if Network VLAN Voice Mode is set
to Manual.
Requires user role: ADMIN, USER
Default value: 1
USAGE:
xConfiguration Network n VLAN Voice VlanId:
where
: Index that identifies the network. Range: 1..1
n
: Integer (1..4094)
VlanId
Set the VLAN voice ID.
