Technical features

Address setting

At the IO-Link master, the addressing on PROFIBUS-DP is done via 2 decimal rotary coding
switches.
A maximum of 99 addresses (01 to 100) can be allocated, whereas switch position 01 corre-
sponds to address "1" and switch position 00 to address "100".

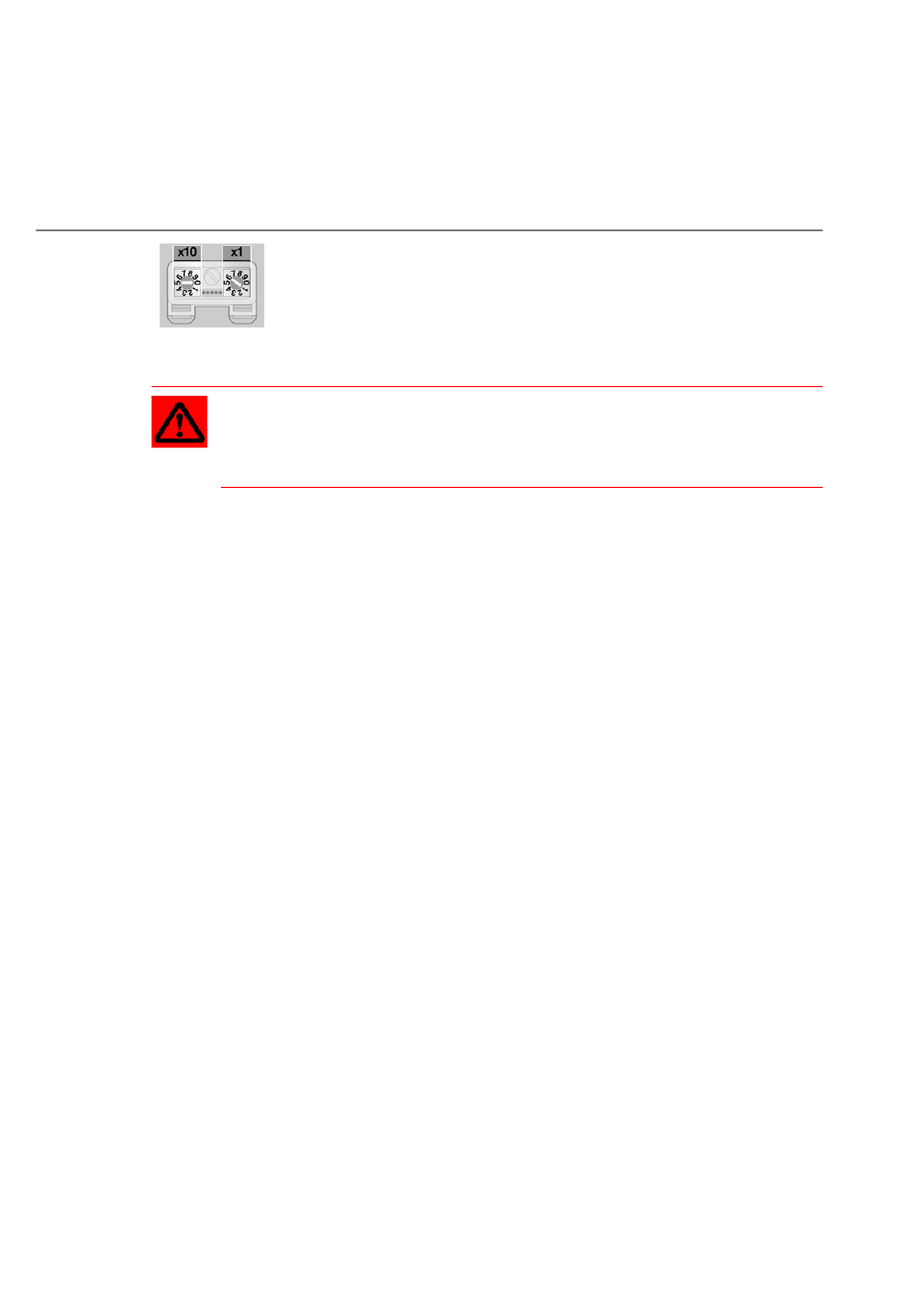

Figure 8:
Rotary coding
switches for ad-
dress setting
Each address may be allocated only once in the entire bus structure.
3-8
01 = addr. 1
00 = addr. 100
Attention
The cover of the decimal rotary coding-switches must be closed by tightening the
screw after use. The seal in the cover must not be damaged or slipped. The protec-
tion class IP67 can only be guaranteed when the cover is closed correctly.
