Application example with Siemens PLC and FB 102 (IO-Link CALL)
Write access
Changing of parameter "Update of display (diS)" (index 55) to value 0x03 (50 ms update/
display 180 deg) from TURCK pressure sensor, PS100R-501-LI2UPN8X-H1141 at IO-Link
port 1.

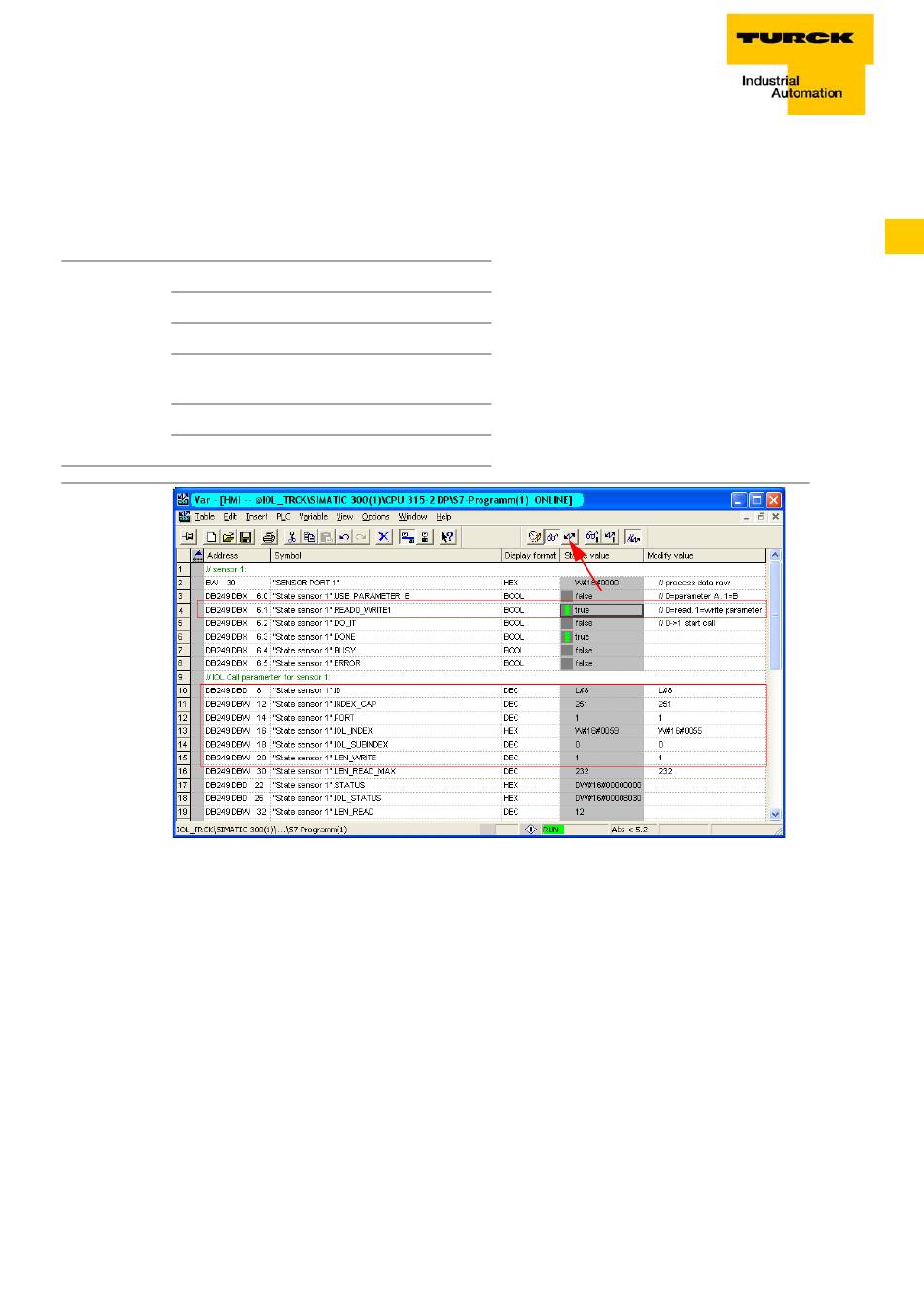

1 Please write the function block's input variables via "Modify variable" as follows (descrip-
tion see above):
Table 19:
READ0_WRITE1
Example input
ID
variables
Index_CAP
PORT
(ENTITY_PORT)
IOL_INDEX
LEN_READ
Figure 25:
Input variables
for write access
D301171 - IO-Link master 1108
1
Addr. 8
251
1
0×55
1
4
4-13
