Application example with Siemens PLC and FB 102 (IO-Link CALL)
For the meaning of the parameters (IO-Link, index 1, subindex x), please read the
documentation for the respective sensor
used Siemens
SIO mode
If the port has to be operated in SIO mode, please select devices with 0 byte of process
data [TURCK ... (SIO mode) or Generic 0 Byte (SIO mode)] from the hardware catalog.

Configuration of the IO-Link ports in this example

1 A TURCK pressure sensor (PS100R-501-LI2UPN8X-H1141) is connected to IO-Link port 1
(slot 2) which has to be operated in IO-Link mode.
The default-entry "Generic In 8 Byte" at slot 2 is therefore replaced by the sensor Turck
PS series (IOL mode) from the hardware catalog.
Parameterization of the TURCK-sensors

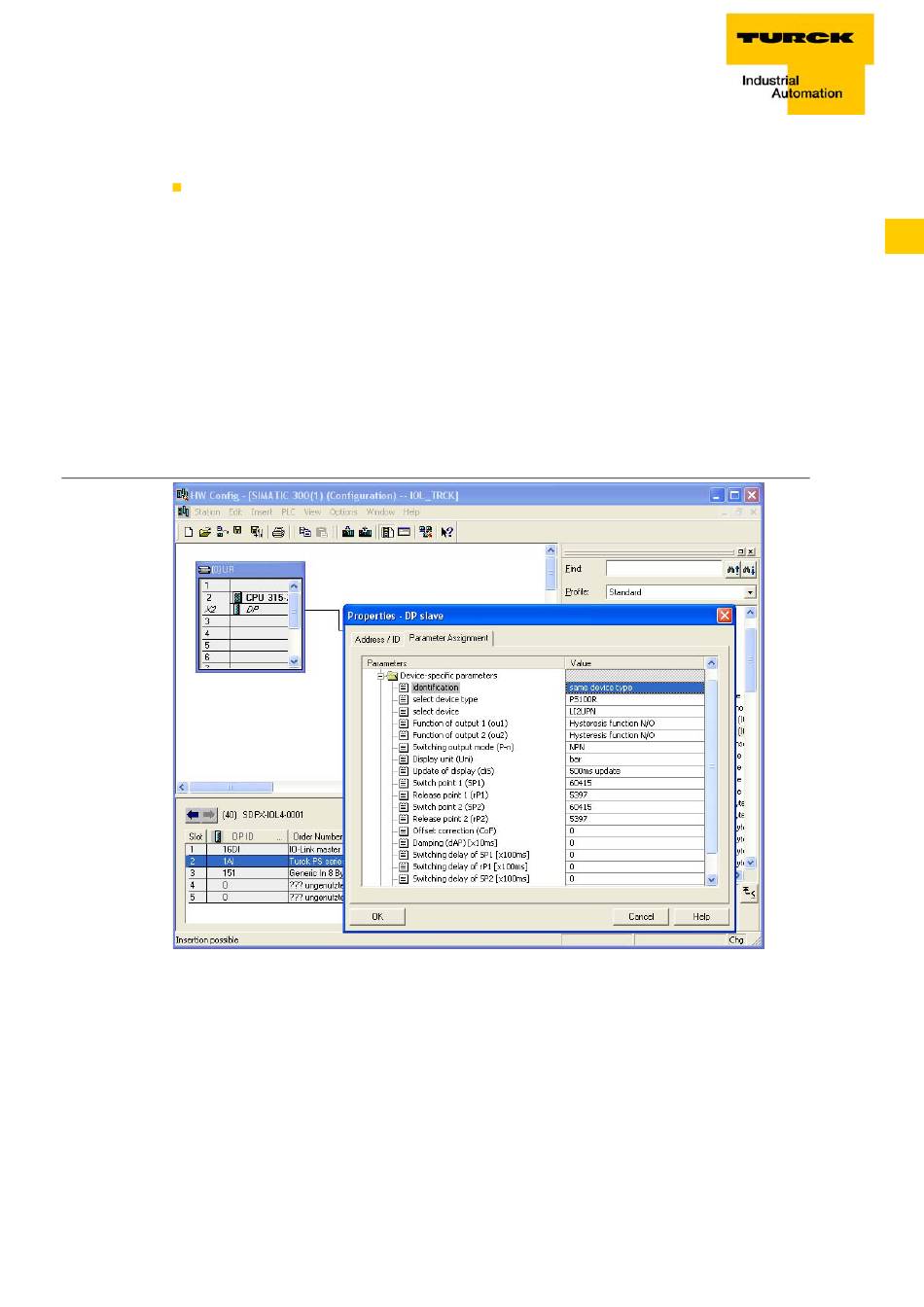

The TURCK sensor is parameterized according to the application as shown for example in
Figure 17: "Parameterization via
in the respective sensor-documentation under www.turck.com.
Figure 17:
Parameteriza-
tion via GSD
2 A Siemens ultra sonic sensor, PXS310C M18 IO-Link (6GR6333-3KS00) is connected to
IO-Link port 3 (slot 4). It should also be used in IO-Link mode.
The sensor is not part of the GSD-file of the TURCK IO-Link master and can therefore only
be inserted as generic sensor (see
vendor, it has 2 byte of process data.
D301171 - IO-Link master 1108
sensor".
GSD". A description of the sensor-parameters can be found
"Configuration of the IO-Link
Figure 19: "Extract from the documentation of the
ports"). According to the
