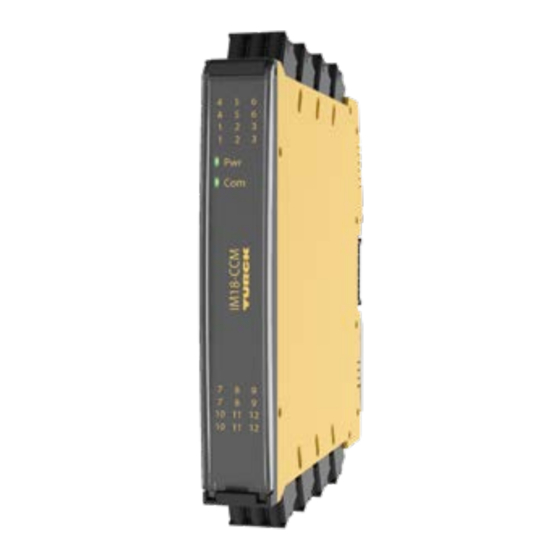

- Page 1 Your Global Automation Partner IM18-CCM51-12I Current Measurement Module Instructions for Use...
- Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 3: Table Of Contents
Measured data and status information.............. 13 Operation ............................ 14 LED indications ...................... 14 Reading the memory .................... 14 10 Troubleshooting .......................... 15 11 Maintenance........................... 16 12 Repair............................... 16 12.1 Returning devices....................... 16 13 Disposal ............................ 16 14 Technical Data.......................... 17 15 Turck Subsidiaries - Contact Information ................. 18 V01.00 | 2021/06... - Page 4 Contents Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 5: About These Instructions
This symbol denotes actions that the user must carry out. RESULTS OF ACTION This symbol denotes relevant results of actions. Other documents Besides this document the following material can be found on the Internet at www.turck.com: Data sheet Quick Start Guide EU Declaration of Conformity (current version) -
Page 6: Notes On The Product
CAD files in numerous export formats. The contact details of Turck subsidiaries worldwide can be found on p. [} 18]. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 7: For Your Safety
The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices. -
Page 8: Product Description
Operation only possible in conjunction with IM18-CCM50… series programmable cabinet guards Communication and power supply via backplane bus DIN rail mounting in accordance with DIN Rail EN 60715 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 9: Operating Principle
Operating principle The expansion module measures the currents of the connected current sensors and outputs the signals preprocessed to a cabinet guard. Functions and operating modes The device processes the signals of up to twelve AC current sensors and measures the signal frequency of the sensors. -
Page 10: Installing
Push two backplane bus connectors into the guide of the DIN rail and connect them to- gether. „ Plug the cabinet guard and the current measurement module onto the backplane bus connectors. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 11: Connection
Connection The device is provided with spring-loaded terminals for connecting the current sensors. The re- movable terminal blocks are coded. „ Only use cables (rigid or flexible) with a cross section of 0.2…2.5 mm². „ When using stranded wire: Secure the wire ends with ferrules. „... -
Page 12: Commissioning
Commissioning Commissioning After connecting and switching on the power supply, the device is automatically ready for op- eration. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 13: Setting And Parameterization
The current measurement module can be parameterized via the IM18-CCM50… cabinet guard. A library of parameters for the setting current measurement module is available as a free down- load from www.turck.com. The library enables direct access to the device. An additional bus address for the current meas- urement module is not required. -
Page 14: Operation
In normal operation, the operating hours counter is backed up automatically every 30 minutes. In the event of power supply interruptions, the counter is automatically reset to the last backed up state. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 15: Troubleshooting
Troubleshooting If the device does not function as expected, first check whether ambient interference is present. If there is no ambient interference present, check the connections of the device for faults. If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. -
Page 16: Maintenance
Disposal The devices must be disposed of correctly and must not be included in general household garbage. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 17: Technical Data
Technical Data Technical data IM18-CCM51-12I 100027058 Power supply 10…30 VDC Power consumption 624 mW at 24 V Sensor input – current Max. 350 mA Division factor of current transformer 3000:1 Measuring accuracy 0…9 A: 2 % (9 A, 50/60 Hz) 9…90 A: 2 % (90 A, 50/60 Hz) 9…600 A: 2 % (600 A, 50/60 Hz) -
Page 18: Turck Subsidiaries - Contact Information
Turck Banner Malaysia Sdn Bhd Unit A-23A-08, Tower A, Pinnacle Petaling Jaya, Jalan Utara C, 46200 Petaling Jaya Selangor www.turckbanner.my Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 19 Mexico Turck Comercial, S. de RL de CV Blvd. Campestre No. 100, Parque Industrial SERVER, C.P. 25350 Arteaga, Coahuila www.turck.com.mx Turck B. V. Netherlands Ruiterlaan 7, NL-8019 BN Zwolle www.turck.nl Austria Turck GmbH Graumanngasse 7/A5-1, A-1150 Wien www.turck.at Poland TURCK sp.z.o.o.
- Page 20 Over 30 subsidiaries and over 60 representations worldwide! 100029418 | 2021/06 100029418 www.turck.com...
