Acyclic data exchange via PROFIBUS-DP C2-master and TURCK IO-Link DTM

Configuration of the CommDTM in PACTware™

After the installation of the DTM for the PB-XEPI "CommDTM_PROFIBUS_DPV1", add it to
your project.

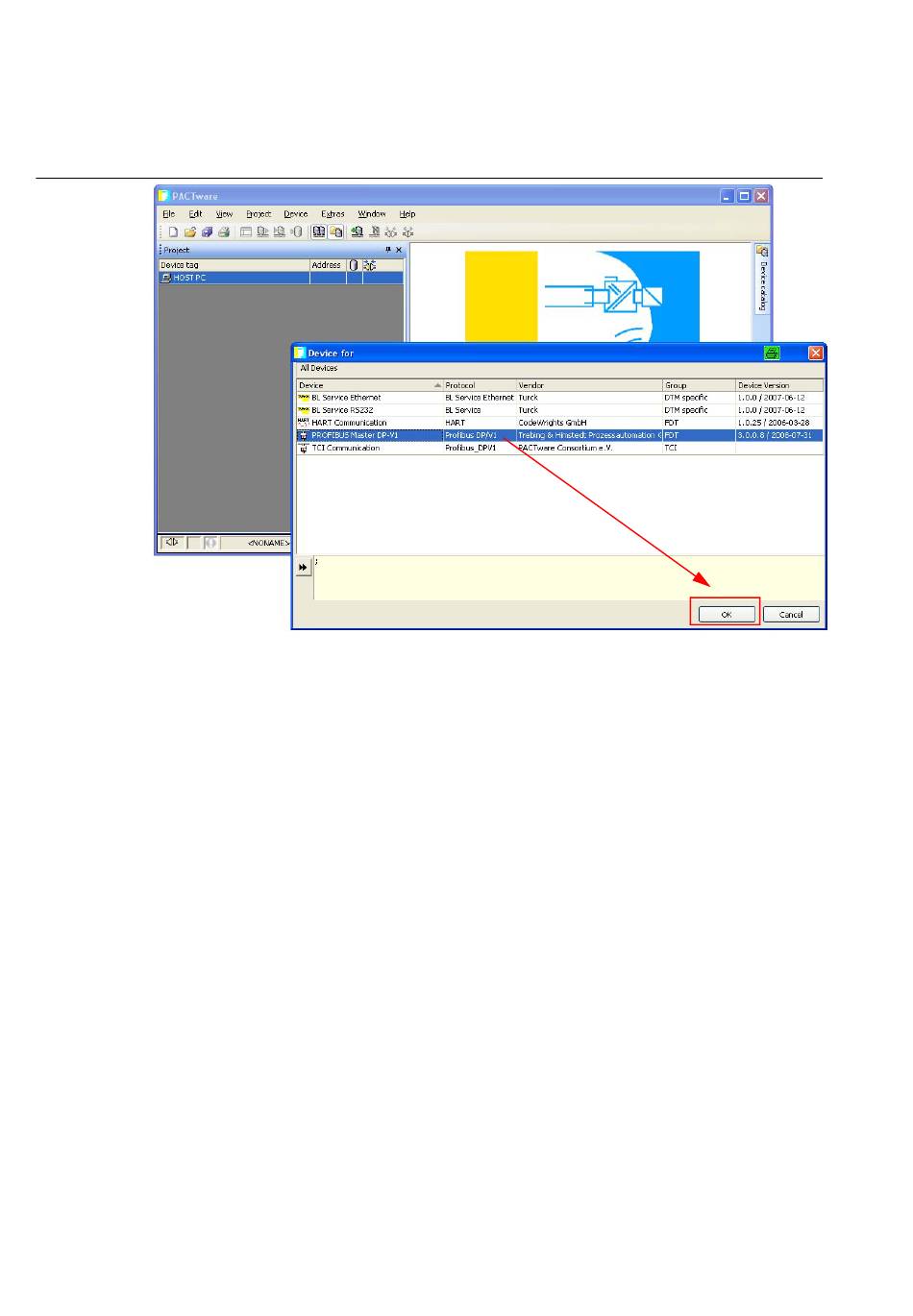

Figure 29:
Adding the
CommDTM to the
project
A double-click onto the CommDTM opens the dialog box "CommDTM_PROFIBUS_DPV1
Parameter".
Activate the option "search for new hardware" under "Hardware". The DTM scans the
EtherNet/IP-network for connected PB-XEPIs.
5-4 D301171 - IO-Link master 1108
