Technical features

Configuration in SIO-mode

If a TURCK-sensor is to be used in SIO-mode, it has also to be configured in SIO-mode (see
blow). The GSD-file also contains entries for the usage of TURCK-sensors in SIO-mode which
means, they can thus be directly selected for the ports as well.
In SIO-mode, devices of third-party-manufacturers have to be configured as generic sensors
as well, whereas the port has to be configured as "generic 0 byte (SIO-mode)".

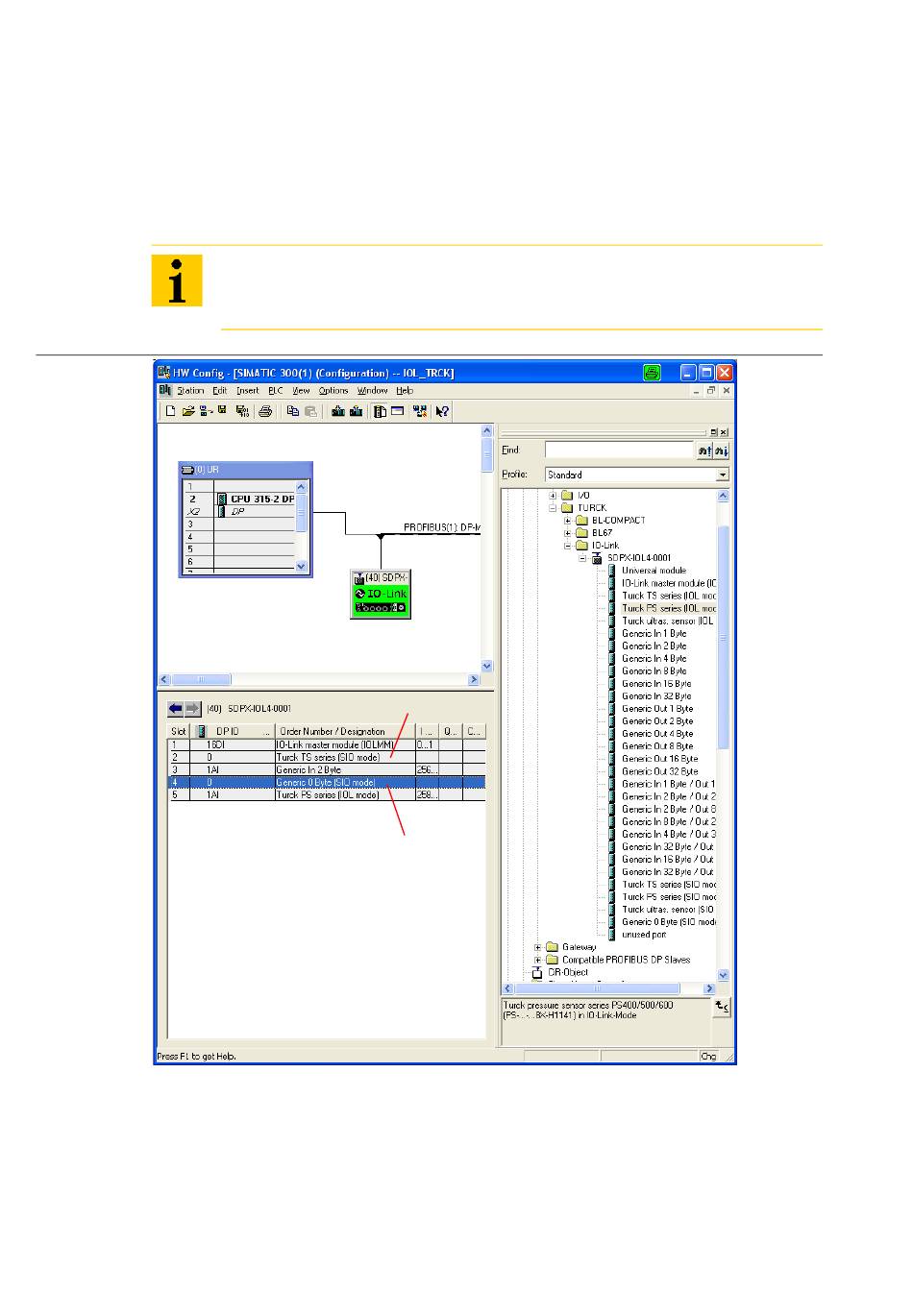

Figure 12:
Example config-
uration with
sensors in SIO-
mode
A TURCK-
sensor in SIO-
mode
B Third-party-
sensor as
generic
sensor in SIO-
mode
3-18
Note
If the sensors at slots 2 to 5 are operated in SIO-mode, their user data are mapped
into byte 0 (PIN 4) of the IO-Link master (see section
A
B
"Process
image",
page
D301171 - IO-Link master 1108
3-9).
