Application example with Siemens PLC and FB 102 (IO-Link CALL)

Opening the example project

Retrieve the archive IOL_TRCK_jjjj.mm.tt.zip in the SIMATIC Manager using the "File
→ Retrieve" command and open the example project "IOL-TRCK".

Hardware configuration

1 Open the Hardware configurator "HW Config" and adapt the configured CPU to the actual
configuration. In this example a CPU 315-2AG10-0AB0 is used.
2 Open the "Properties DP-Slave" dialog by double-clicking the symbol of the SDPX-IOL4-
0001. Open the dialog box "Properties - PROFIBUS Interface SDPX-IOL4-0001" via the
button "PROFIBUS" under "Node/Master System". In the register tab "Parameters" the
node address for the IO-Link master will be adapted (in this example address 40).

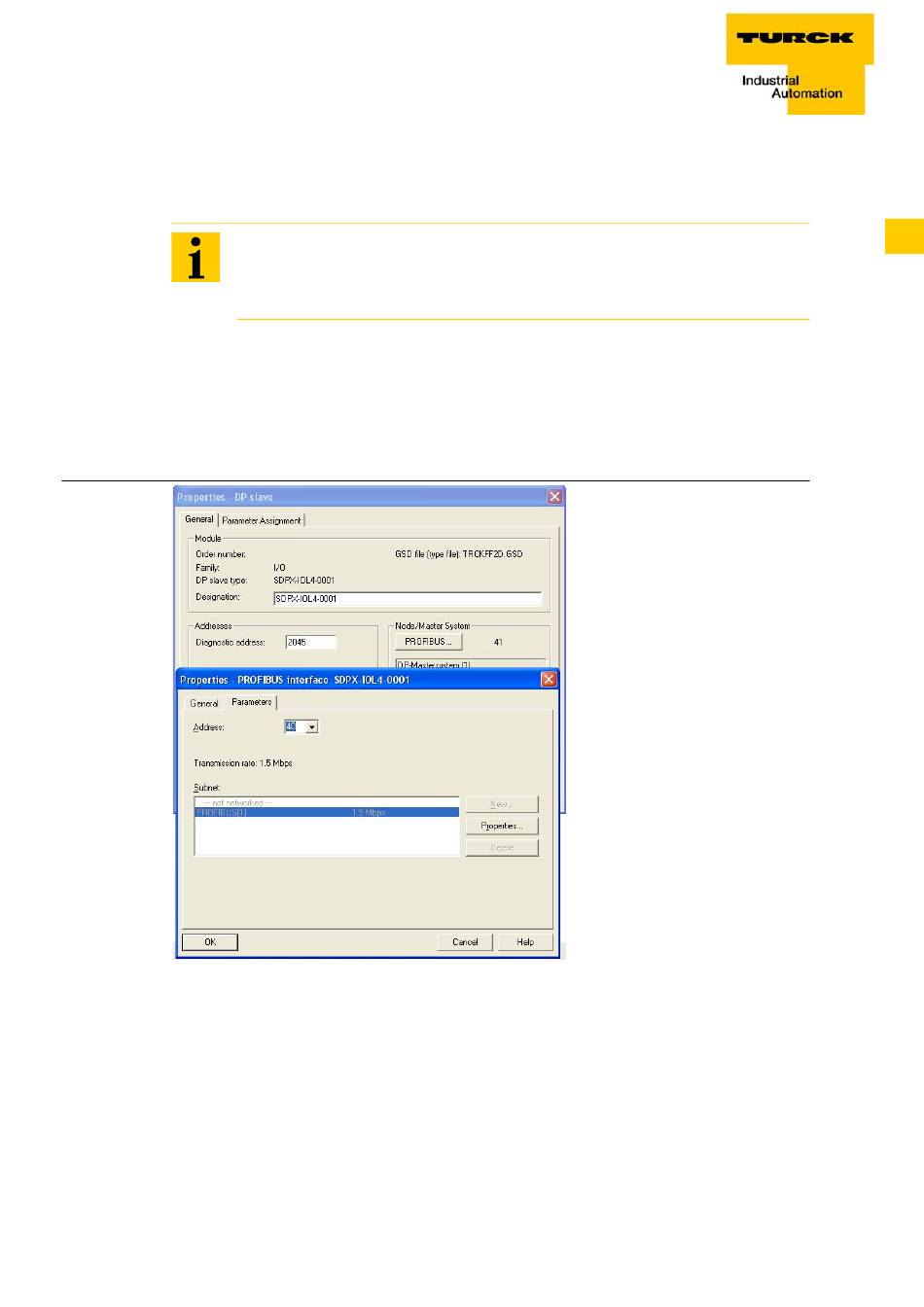

Figure 15:
Setting the
PROFIBUS
address
3 Even the in -and output addresses of the IO-Link master module IOLMM (slot 1) and of the
4 IO-Link ports (slot 2 to 5) have to be adapted to the application (see also
"Hardware-configuration with generic
D301171 - IO-Link master 1108
Note
The hardware configuration used in the example has to be adapted by each user to
his own hardware configuration. In the following description this adaptation is also
done according to the hardware configuration mentioned above.
sensor").
