turck IO-LINK MASTER User Manual page 63

Connection to a Siemens Step 7 - usage of the TURCK- example program
2 The value to be written (0x03) is entered in the variable table, column "modify value", and
then written to the module via "Modify variable".

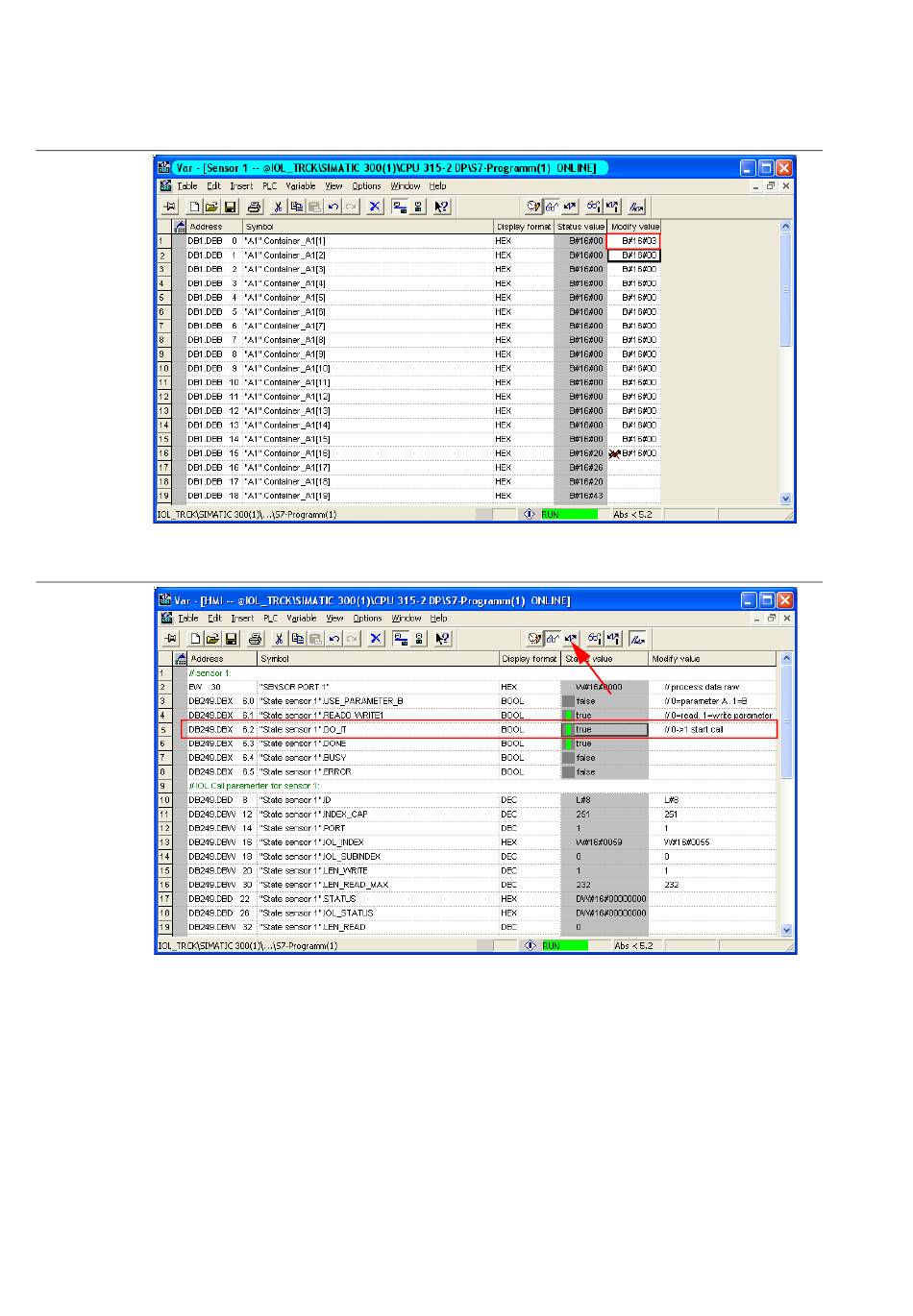

Figure 26:
Modify value for
index 0×55
3 After this, the write access has to be activated using a rising edge at "DO_IT":
Figure 27:
Activation of
write access
4 The sensor's display should now be rotated about 180°.
4-14 D301171 - IO-Link master 1108
