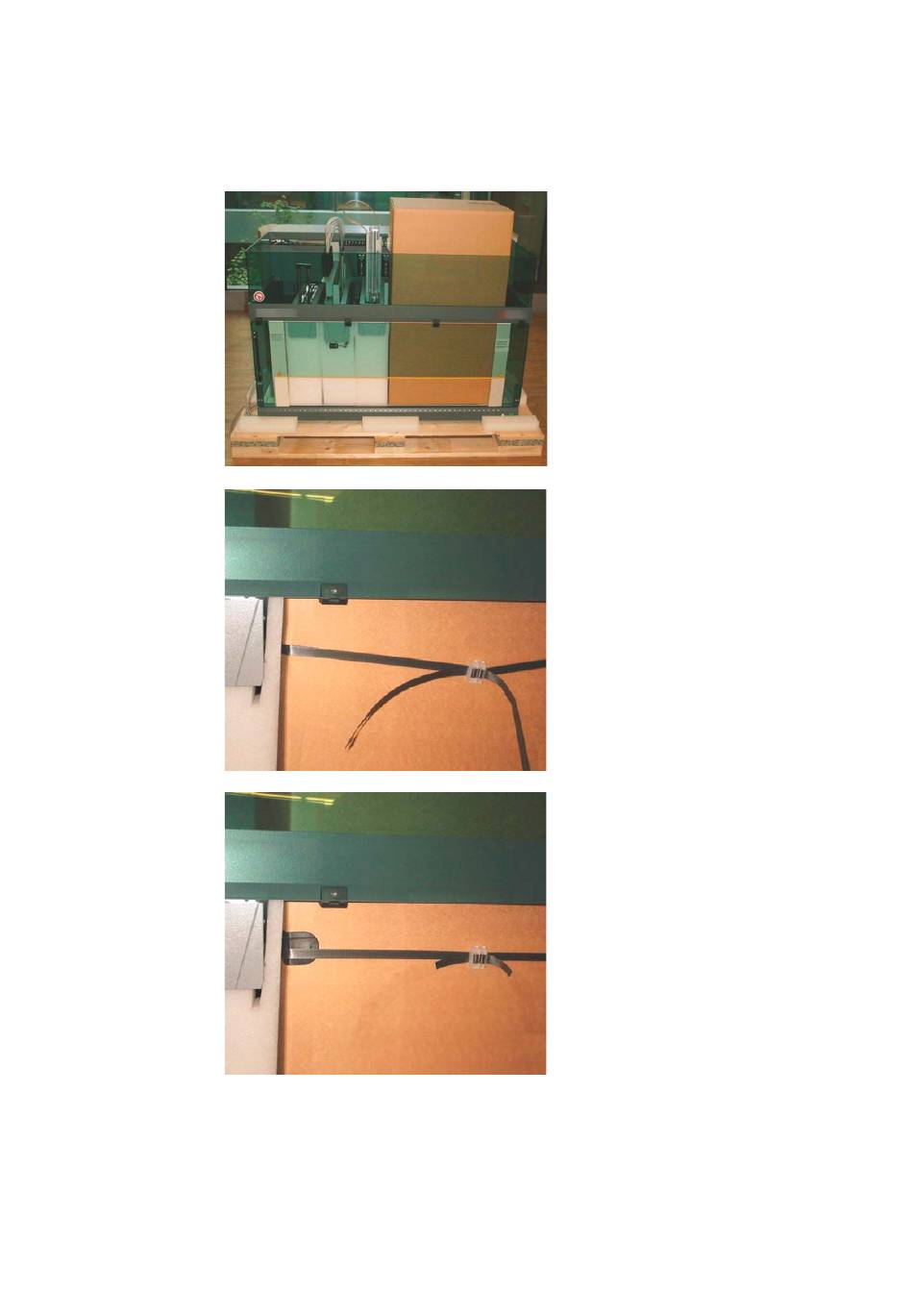

Place the accessory box (A) into the gap
•
as shown in the figure.
• Fasten the accessory box as follows:
o Attach the straps to the buckle
(A) as shown in the figure.
o At the corner of the accessory
box, apply edge protection (A)
between the strap and the box
as shown in the figure.
o Tension the strap
o Cut the excess strap (B)
Make sure that there is no gap
between the cardboard box and
the left foam block (arm sup-
port)
