Note: When replacing positioning pins, take note to the following:
Make sure to only replace a pin by one of exactly the same type and pay attention to
•
the orientation.
• Do not leave uncovered grid holes on the worktable as liquids might flow into the area
below the worktable.
ATTENTION
Loose positioning pins can result in bad positioning of carriers and labware.
It is recommended that you replace removed positioning pins with new ones.
•
PyroTec™ PRO Hardw are User's Manual, V1.2

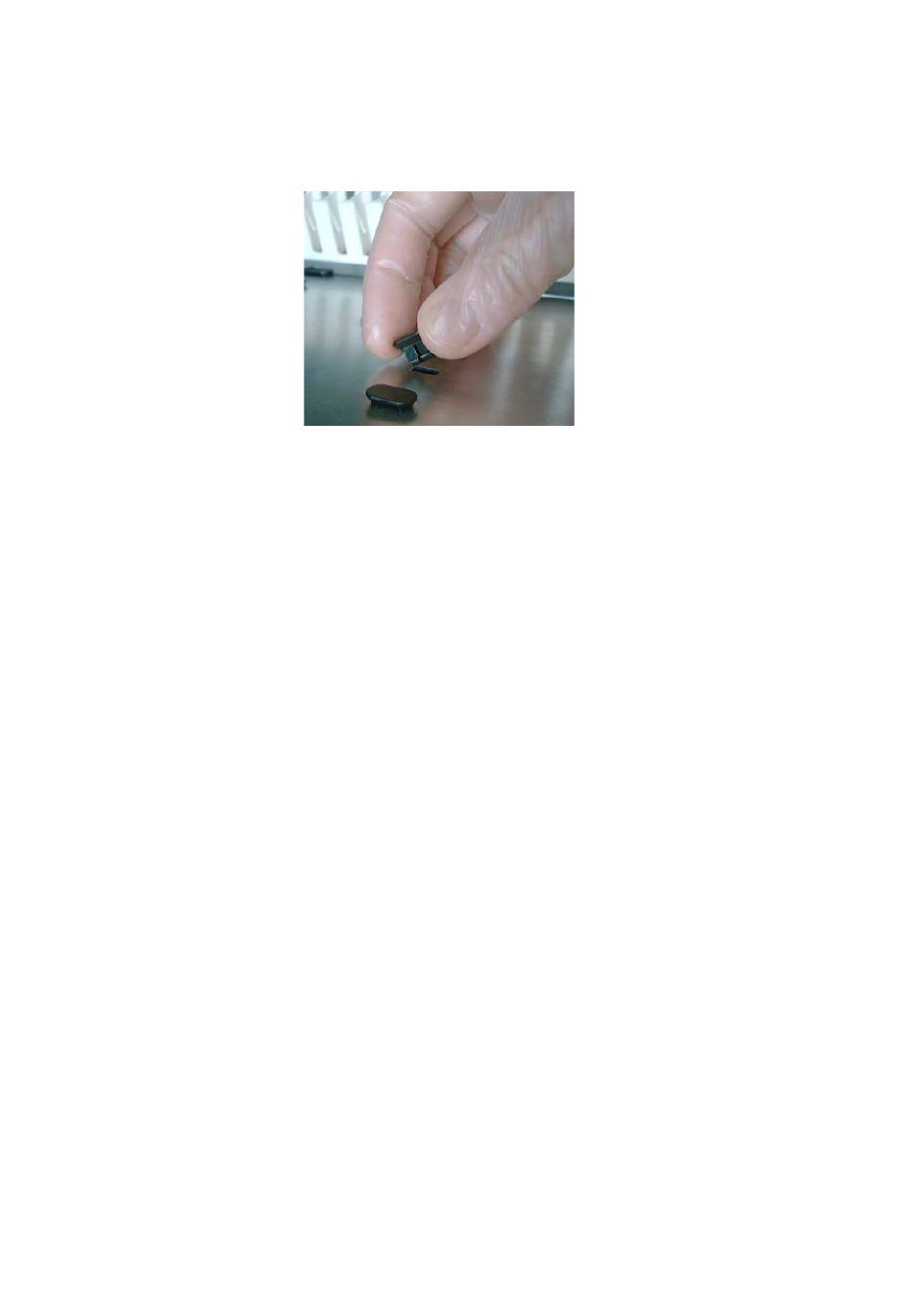

Inserting a positioning pin
Carefully press the new pin into the
•
hole on the worktable.
You can use a small rubber mallet if
the pin cannot be inserted manually.
