Function; Air Displacement Pipetting Arm (Air Liha) - Lonza PyroTec PRO Hardware User Manual

5.3 Function

5.3.1 Air Displacement Pipetting Arm (Air LiHa)

Purpose of Air The Air LiHa is a pipetting arm for general pipetting tasks. Aspiration and dispense of liq-
LiHa uids are based on air displacement.
Tip Servo motors move the tips in X, Y or Z-direction.
Movements
The pipetting tips can be moved independently in Z-direction. In Y-direction, equidistant
tip spreading is possible. This enables the arm to pipette e.g. from vessels with a small cav-
ity spacing (such as a microplate) to vessels with a larger cavity spacing (such as a tube
rack) with all tips simultaneously.

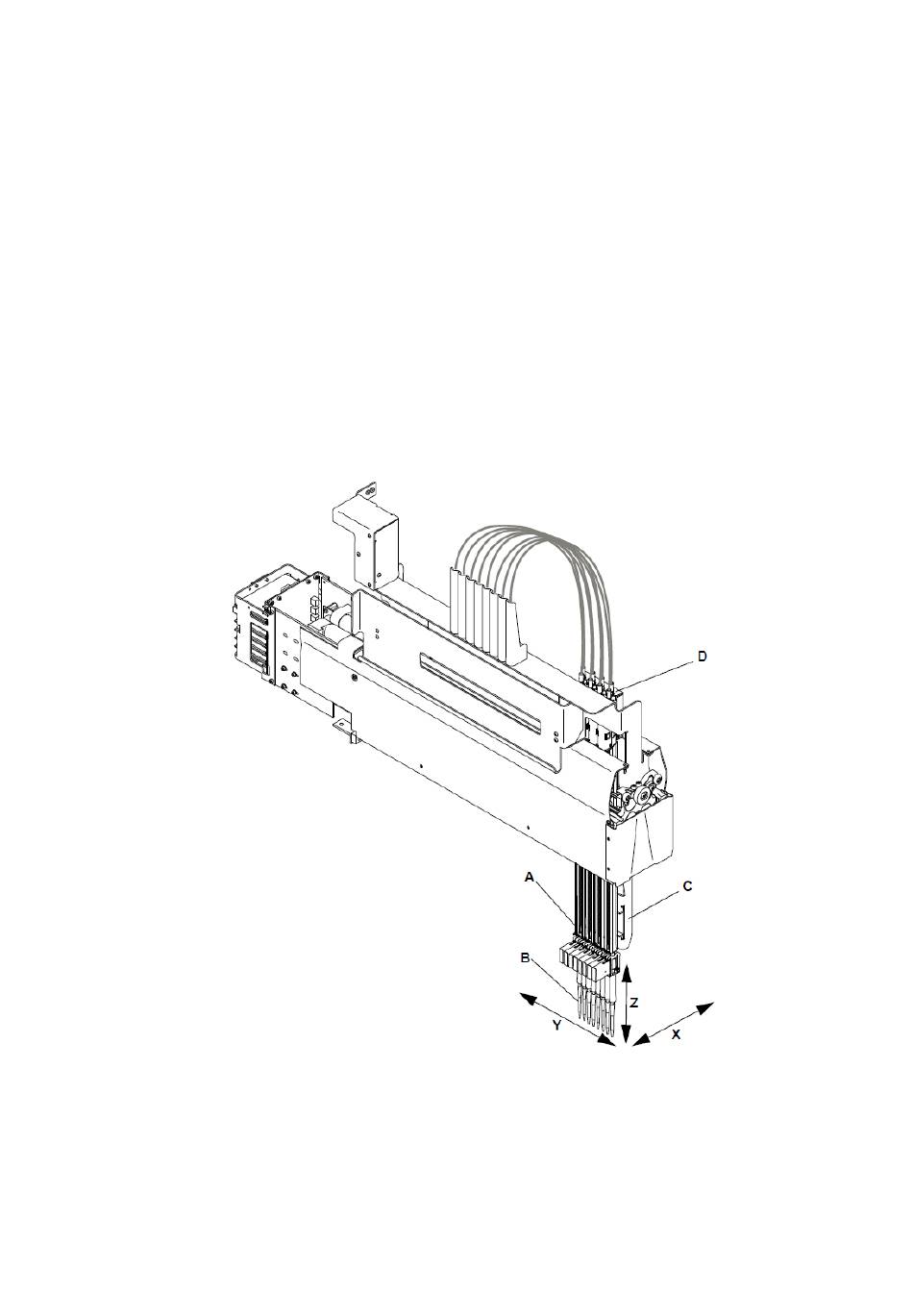

A
B
C
D
Tip Types The Air LiHa is intended for disposable tips only. Different DiTi sizes are available. The max-
imum volume of the air chamber (1250 µl) matches the largest DiTi type (1000 µl).
PyroTec™ PRO Hardw are User's Manual, V1.2
Air chamber in Z-rod
Disposable tip
Lower DiTi eject device
Plunger drive
X Axis from left to right of worktable
Y Axis from front to back of worktable
Z Vertical axis above worktable
Return to TOC
38
RT-MN024-1.2 02/21
