Technical Information
H1 Axial Piston Single Pumps, Size 045/053

Installation drawings

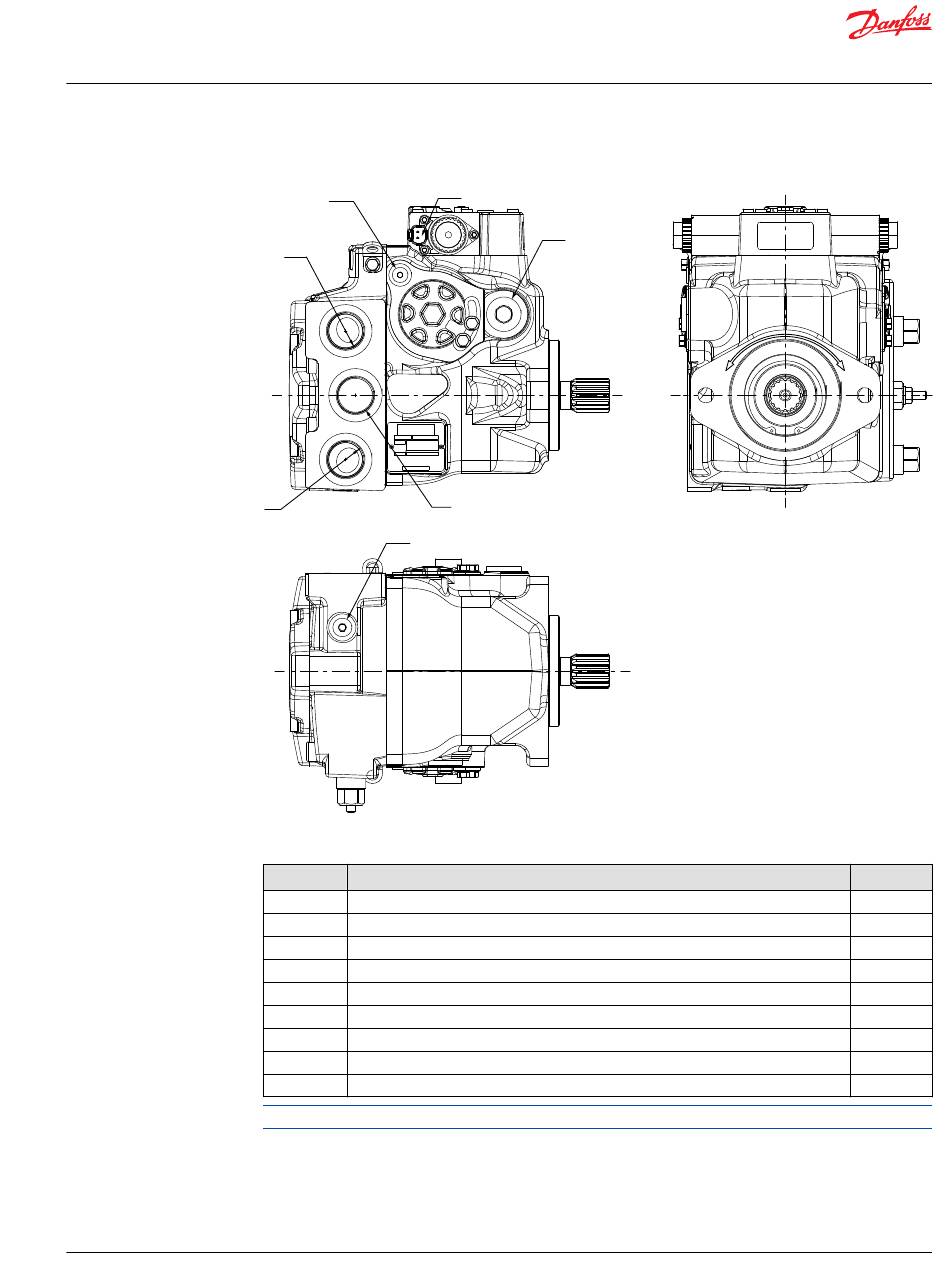

H1P single pump ports description

© Danfoss | May 2017
C2
M4
B
S
A
MA
Ports description (ports per ISO 11 926-1)
Port Description
A, B System ports (Optional ports Ø19)
E / F
Charge filtration ports (from filter / to filter)
L2, L4
Case drain ports
MA, MB System gauge ports A / B
M3
Charge gauge port
AM3
Alternate charge pressure port
M4, M5
Servo gauge ports (Ø29 max clearance for fitting)
M14
Case gauge port (Ø21 max clearance for fitting); EDC, FNR, NFPE
S Charge inlet port
Please contact Danfoss representative for specific installation drawings.
