Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Dimensions

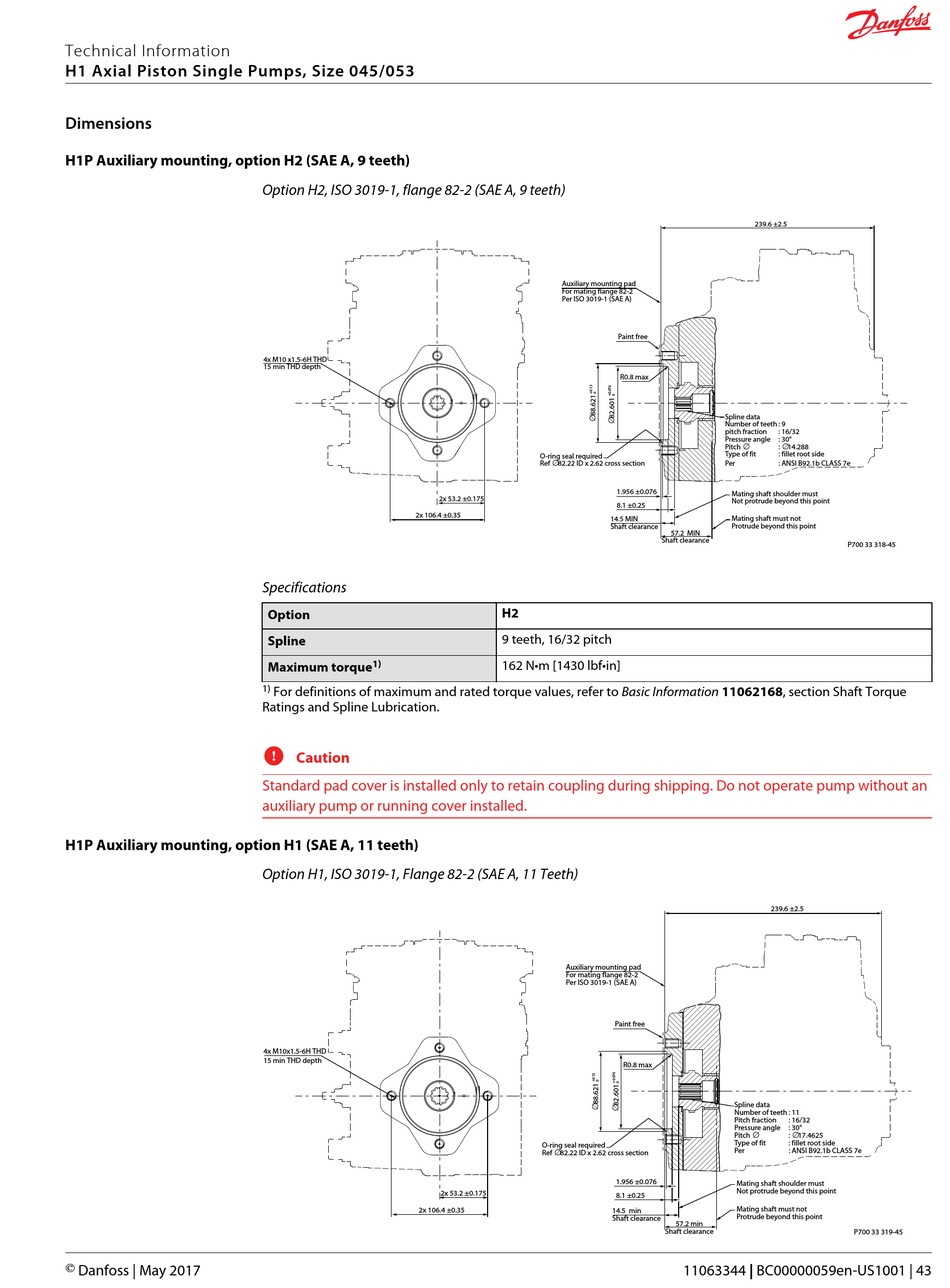

H1P Auxiliary mounting, option H2 (SAE A, 9 teeth)

H1P Auxiliary mounting, option H1 (SAE A, 11 teeth)

© Danfoss | May 2017
Option H2, ISO 3019-1, flange 82-2 (SAE A, 9 teeth)
4x M10 x1.5-6H THD
15 min THD depth
2x 53.2 ±0.175
2x 106.4 ±0.35
Specifications
Option
Spline
1)
Maximum torque
1)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
Option H1, ISO 3019-1, Flange 82-2 (SAE A, 11 Teeth)
4x M10x1.5-6H THD
15 min THD depth
2x 53.2 ±0.175
2x 106.4 ±0.35
Auxiliary mounting pad
For mating flange 82-2
Per ISO 3019-1 (SAE A)
Paint free
R0.8 max
O-ring seal required
Ref ∅82.22 ID x 2.62 cross section
1.956 ±0.076
8.1 ±0.25
14.5 MIN
Shaft clearance
57.2 MIN
Shaft clearance
H2
9 teeth, 16/32 pitch
162 N•m [1430 lbf•in]
Auxiliary mounting pad
For mating flange 82-2
Per ISO 3019-1 (SAE A)
Paint free
R0.8 max
O-ring seal required
Ref ∅82.22 ID x 2.62 cross section
1.956 ±0.076
8.1 ±0.25
14.5 min
Shaft clearance
57.2 min
Shaft clearance
239.6 ±2.5
Spline data
Number of teeth : 9
pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅14.288
Type of fit : fillet root side
Per : ANSI B92.1b CLASS 7e
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
P700 33 318-45
239.6 ±2.5
Spline data
Number of teeth : 11
Pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅17.4625
Type of fit : fillet root side
Per : ANSI B92.1b CLASS 7e
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
P700 33 319-45
11063344 | BC00000059en-US1001 | 43
