Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Dimensions

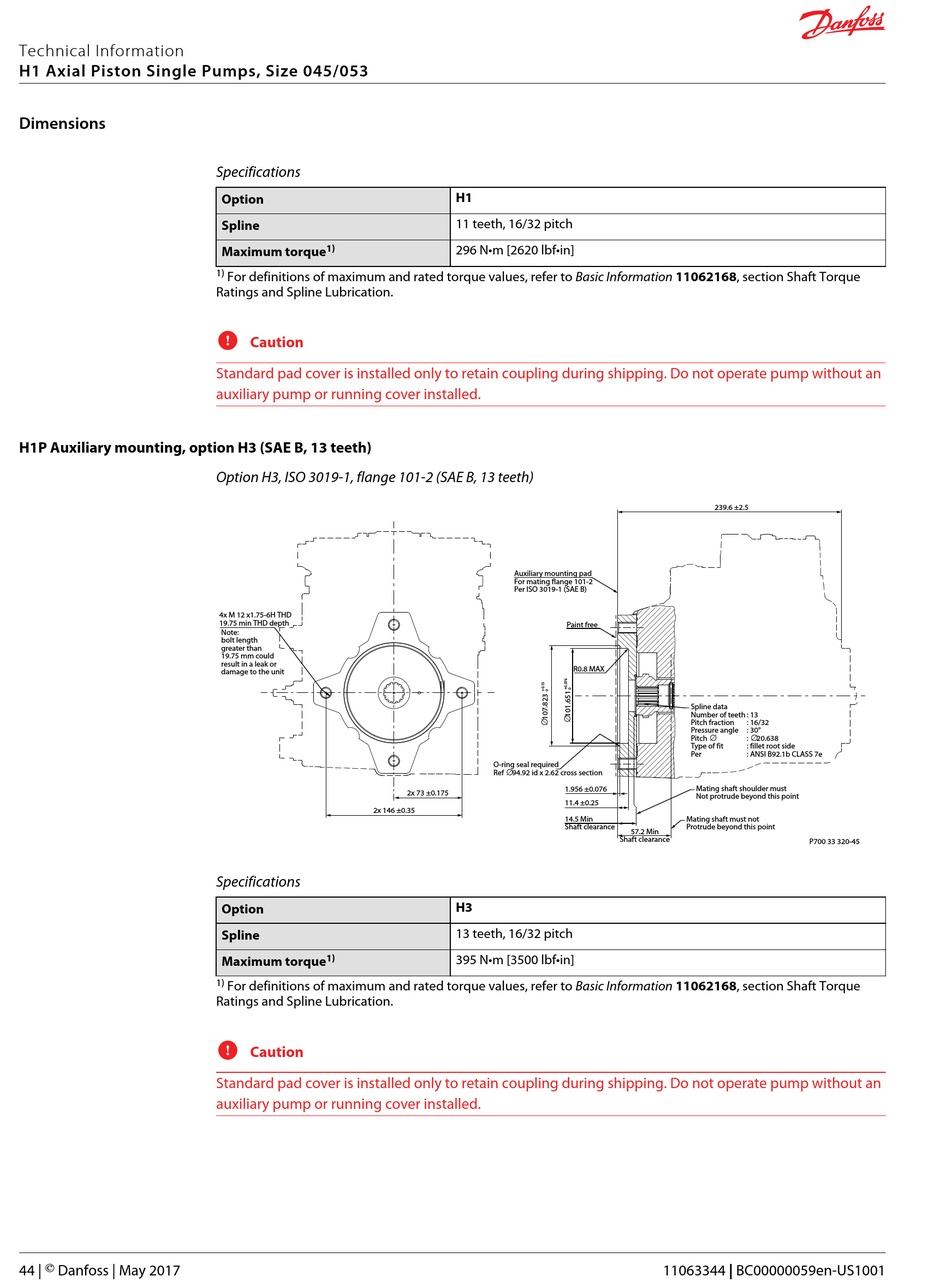

H1P Auxiliary mounting, option H3 (SAE B, 13 teeth)

44 | © Danfoss | May 2017
Specifications
Option
Spline
1)
Maximum torque
1)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
Option H3, ISO 3019-1, flange 101-2 (SAE B, 13 teeth)
4x M 12 x1.75-6H THD
19.75 min THD depth
Note:
bolt length
greater than
19.75 mm could
result in a leak or
damage to the unit
2x 146 ±0.35
Specifications
Option
Spline
1)
Maximum torque
1) For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
H1
11 teeth, 16/32 pitch
296 N•m [2620 lbf•in]
Auxiliary mounting pad
For mating flange 101-2
Per ISO 3019-1 (SAE B)
Paint free
R0.8 MAX
O-ring seal required
Ref ∅94.92 id x 2.62 cross section
1.956 ±0.076
2x 73 ±0.175
11.4 ±0.25
14.5 Min
Shaft clearance
H3
13 teeth, 16/32 pitch
395 N•m [3500 lbf•in]
239.6 ±2.5
Spline data
Number of teeth : 13
Pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅20.638
Type of fit : fillet root side
Per : ANSI B92.1b CLASS 7e
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
57.2 Min
Shaft clearance
11063344 | BC00000059en-US1001
P700 33 320-45
