Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Controls

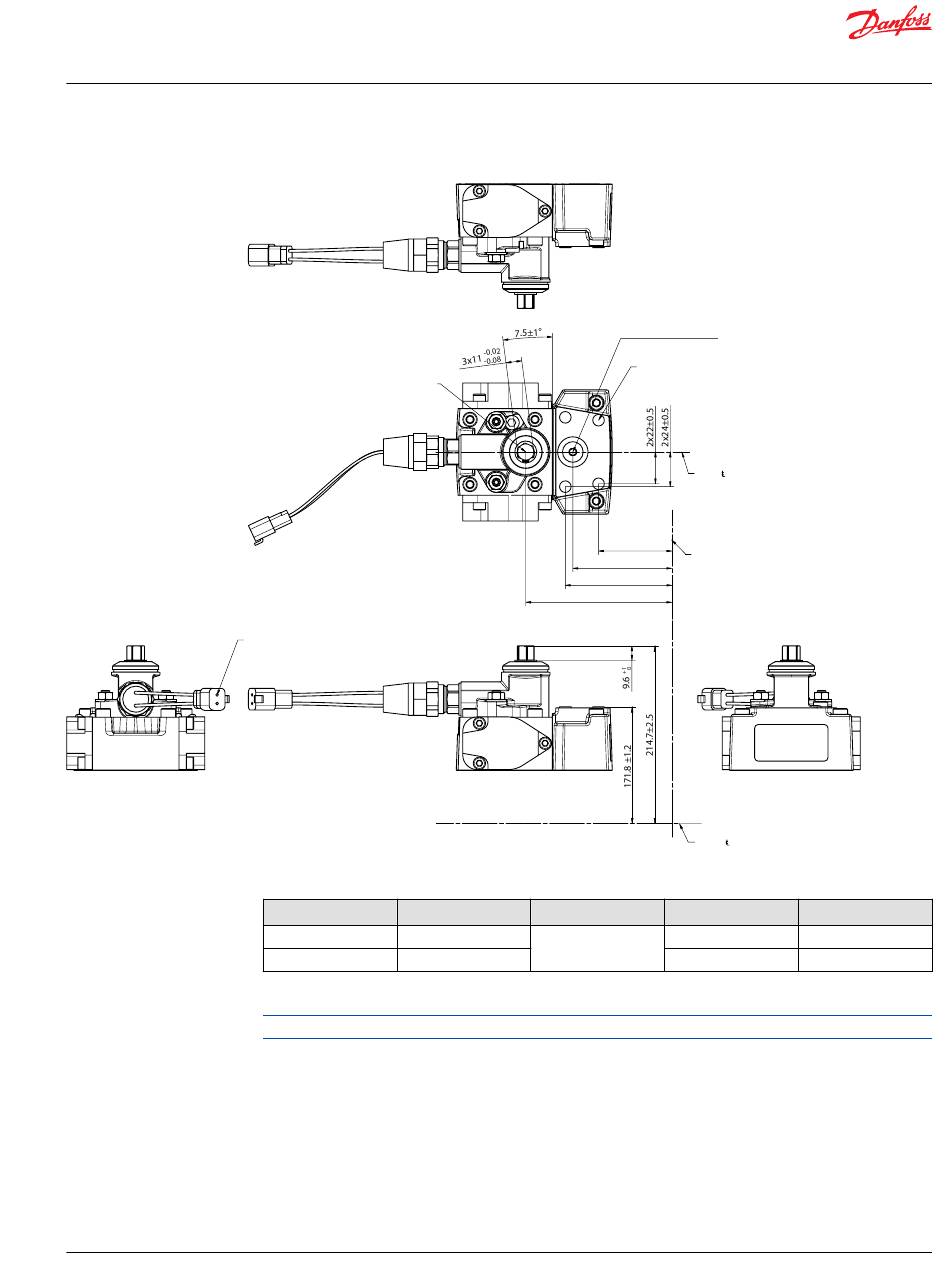

H1P 045/053 Manual Displacement Control (MDC) with NSS, option M2

© Danfoss | May 2017
Control handle shaft
Neutral Start Switch connector:
Deutsch DT04-2P
paint free
Neutral Start Switch connector:
Pin Assignment
1 Supply
2 Ground
Please contact Danfoss representative for specific installation drawings.
Case gauge port M14
ISO 11926-1 -7/16-20
4x M6x1-6H thd.
9 min. full thd. depth
paint free
Shaft
31.5±0.8
Mounting flange
49.3±0.8
54.5±0.8
81.9±0.8
Shaft
Pin
OR 1
2
11063344 | BC00000059en-US1001 | 55
045/053_70102283-D11
Assignment
Ground
Supply
