Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Dimensions

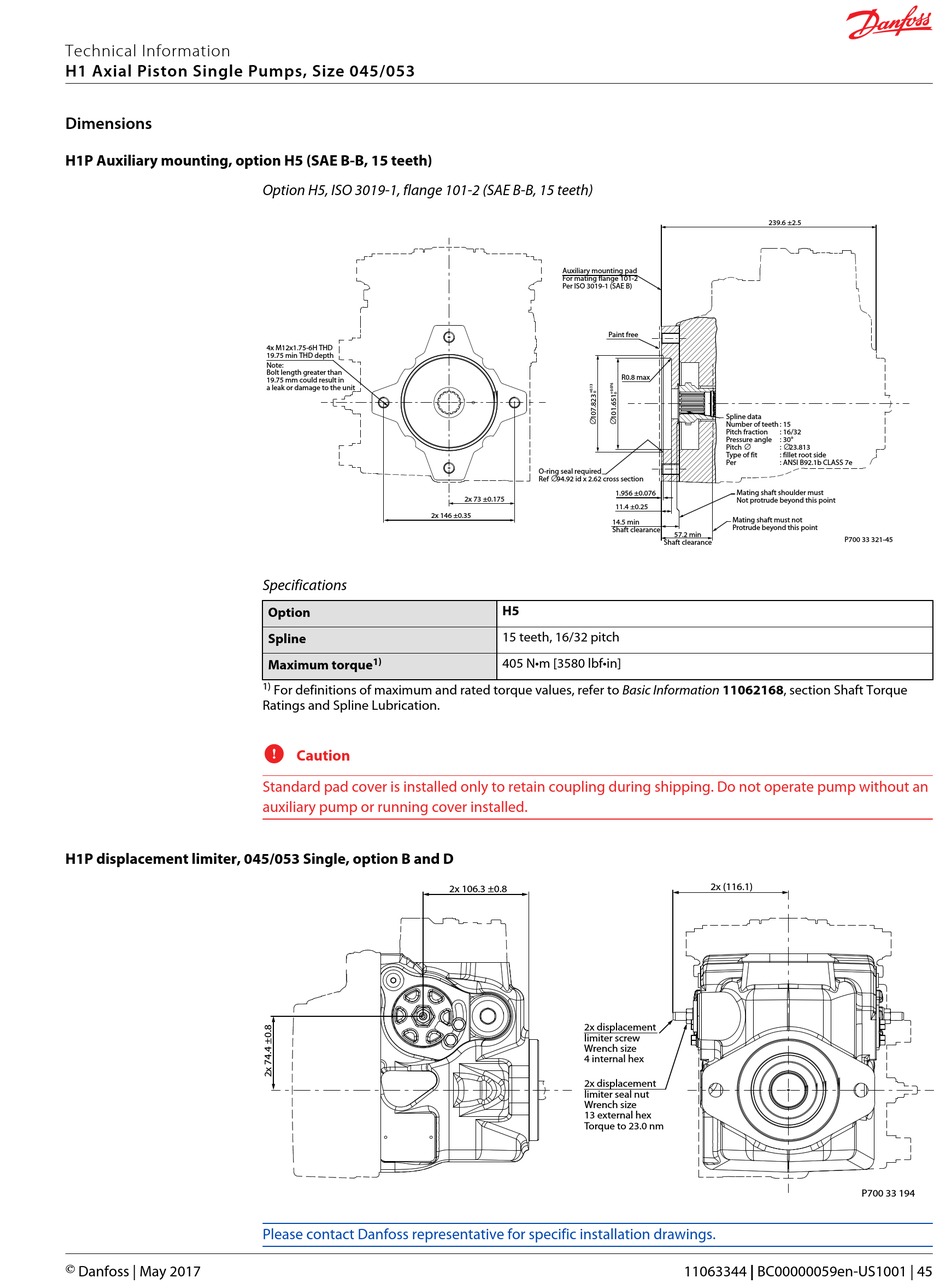

H1P Auxiliary mounting, option H5 (SAE B-B, 15 teeth)

H1P displacement limiter, 045/053 Single, option B and D

© Danfoss | May 2017
Option H5, ISO 3019-1, flange 101-2 (SAE B-B, 15 teeth)
4x M12x1.75-6H THD
19.75 min THD depth
Note:
Bolt length greater than
19.75 mm could result in
a leak or damage to the unit
2x 146 ±0.35
Specifications
Option
Spline
1)
Maximum torque
1)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
Please contact Danfoss representative for specific installation drawings.
Auxiliary mounting pad
For mating flange 101-2
Per ISO 3019-1 (SAE B)
Paint free
R0.8 max
O-ring seal required
Ref ∅94.92 id x 2.62 cross section
1.956 ±0.076
2x 73 ±0.175
11.4 ±0.25
14.5 min
Shaft clearance
H5
15 teeth, 16/32 pitch
405 N•m [3580 lbf•in]
2x 106.3 ±0.8
2x displacement
limiter screw
Wrench size
4 internal hex
2x displacement
limiter seal nut
Wrench size
13 external hex
Torque to 23.0 nm
239.6 ±2.5
Spline data
Number of teeth : 15
Pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅23.813
Type of fit : fillet root side
Per : ANSI B92.1b CLASS 7e
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
57.2 min
Shaft clearance
2x (116.1)
11063344 | BC00000059en-US1001 | 45
P700 33 321-45
P700 33 194
