Technical Information
H1 Axial Piston Single Pumps, Size 045/053

Dimensions

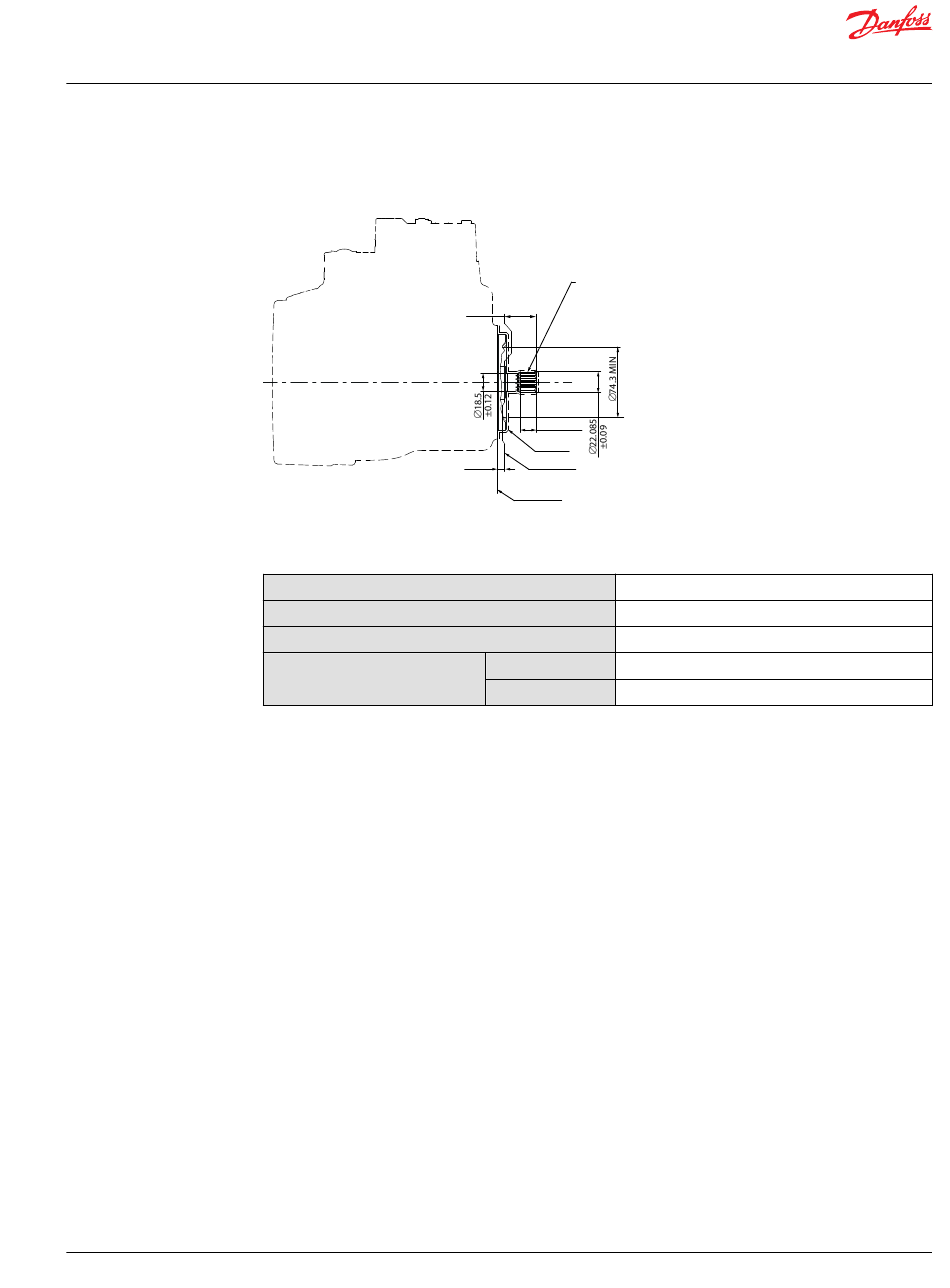

H1P input shaft, Option G4 (SAE B, 13 teeth)

© Danfoss | May 2017
Option G4, ISO 3019-1, Flange Outer dia 22 mm-4 (SAE B, 13 Teeth)
Specifications
Option
Spline
1)
Min. active spline length
2)
Torque rating
1)
Minimum active spline length for the specified torque ratings.
2) For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
Spline data
Number of teeth : 13
Pitch fraction
Pressure angle : 30°
33 ±0.68
Pitch ∅
Type of fit
Per
16. 5 ±0.15
Paint free
8 ±0.8 Mating coupling
Must not protrude
Beyond this point
Mounting flange
Flange 101-2
Per ISO 3019-1 (SAE B)
G4
13 teeth, 16/32 pitch
16.5 mm [0.65 in]
180 N•m [1600 lbf•in]
Rated
222 N•m [1970 lbf•in]
Maximum
: 16/32
: ∅20.6375
: fillet root side
: ansi b92.1b class 6e
P700 33 266
11063344 | BC00000059en-US1001 | 39
