Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Controls

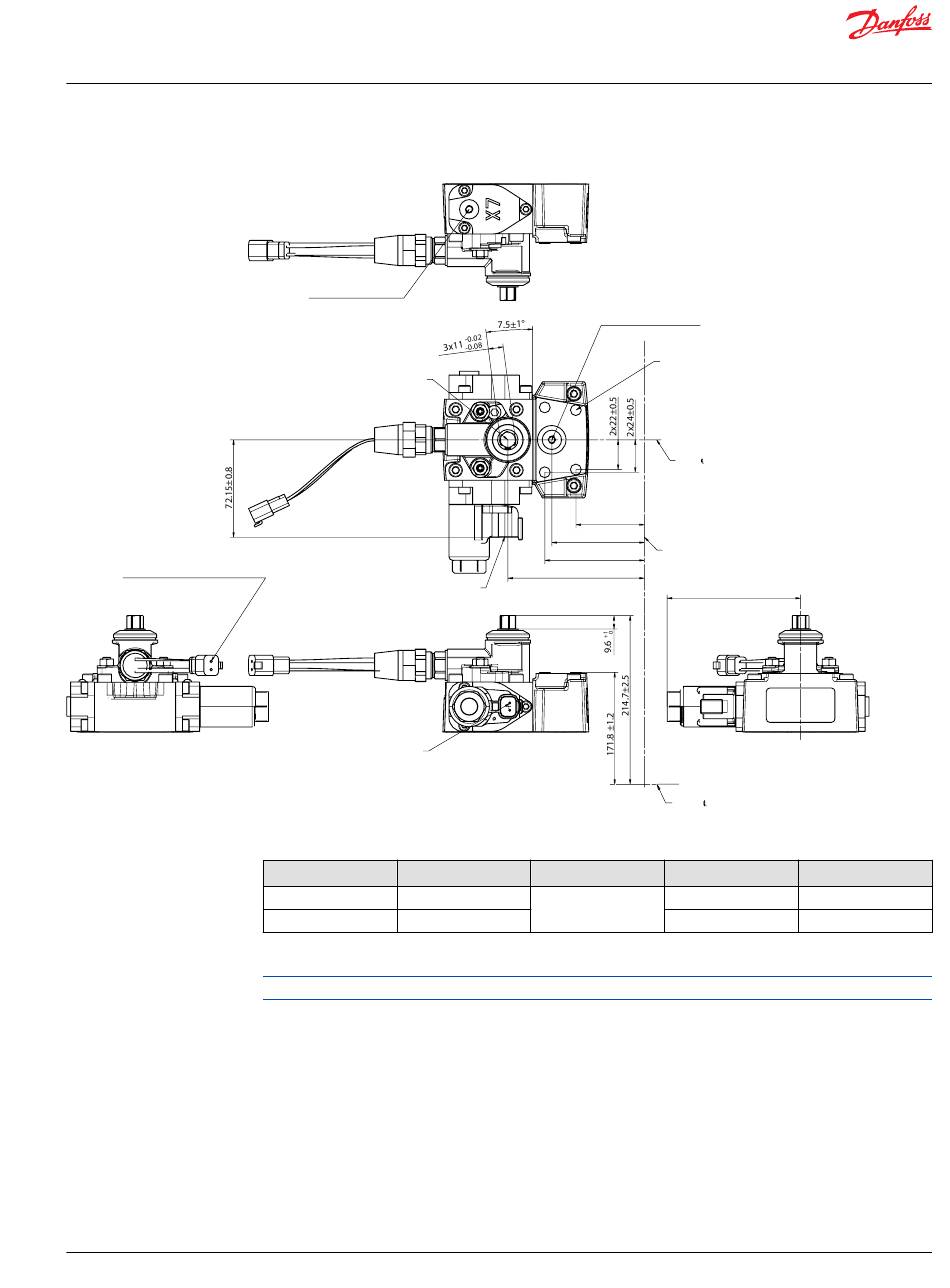

H1P 045/053 Manual Displacement Control (MDC) with NSS and CCO, option M5, M6

Neutral Start Switch connector:
Deutsch DT04-2P
paint free
© Danfoss | May 2017
Brake gauge port X7
ISO 11926-1 -7/16-20
Control handle shaft
Control Cut Off connector C4:
Deutsch DT04-2P
paint free
Control Cut Off connector C4:
Deutsch DT04-2P
paint free
Neutral Start Switch connector / Control Cut Off connector C4:
Pin Assignment
1 Supply
2 Ground
Please contact Danfoss representative for specific installation drawings.
Case gauge port M14
ISO 11926-1 -7/16-20
4x M6x1-6H thd.
9 min. full thd. depth
paint free
Shaft
31.5±0.8
49.3±0.8
Mounting flange
54.5±0.8
81.9±1.2
98.774±1.5
Shaft
Pin
OR 1
2
11063344 | BC00000059en-US1001 | 57
045/053_70102283-D13
Assignment
Ground
Supply
