Fan Drive Control (Fdc), Option F1 (12V) / F2 (24V) - Danfoss H1P 045 Technical Information

Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Controls

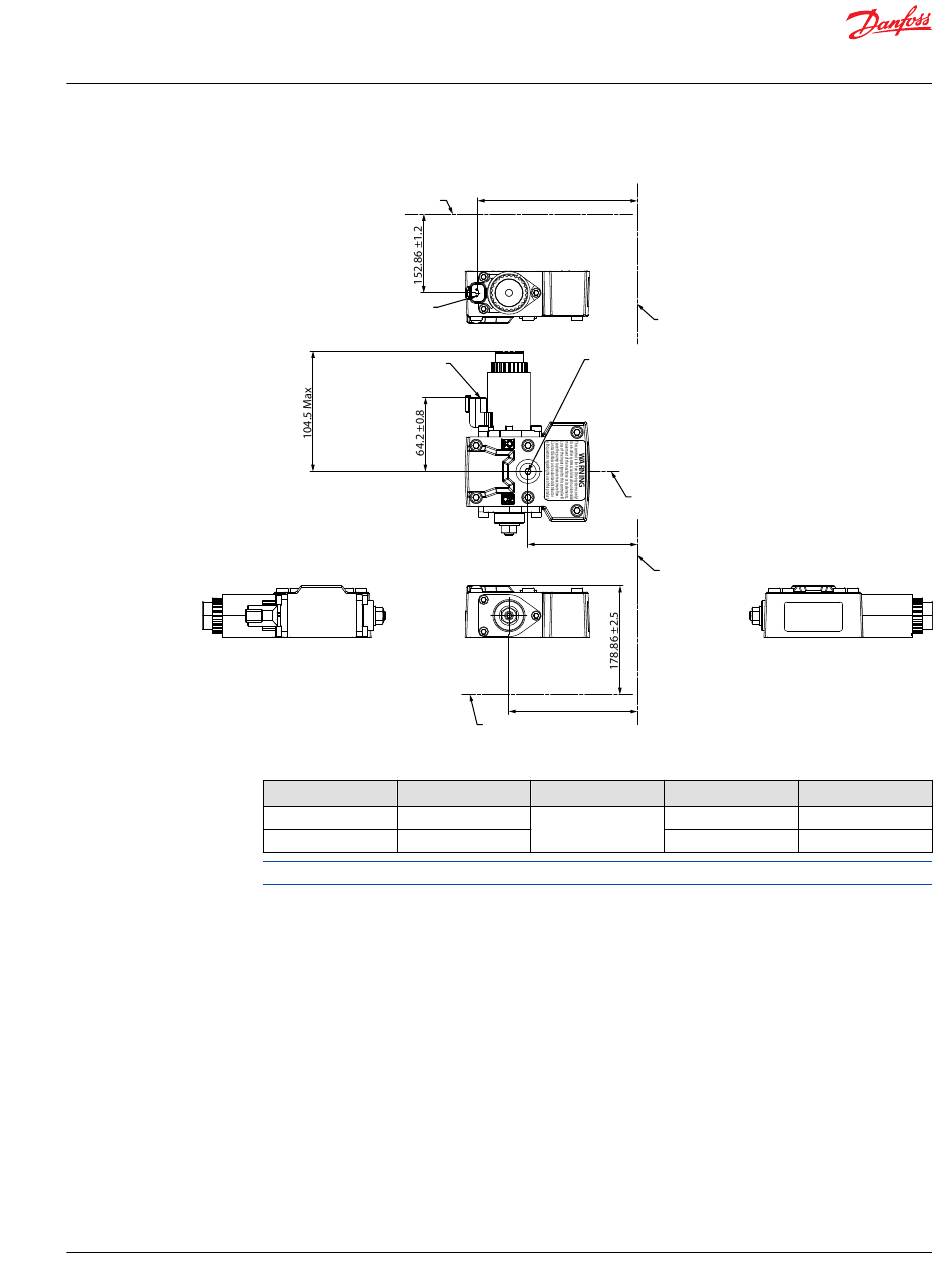

Fan Drive Control (FDC), option F1 (12V) / F2 (24V)

© Danfoss | May 2017
Shaft C L
Control solenoid connector "C1"
Deutsch DT04-2P
Paint free
Control solenoid connector "C1"
Deutsch DT04-2P
Paint free
Control solenoid connector C1 and C2:
Pin Assignment
1 Supply
2 Ground
Please contact Danfoss representative for specific installation drawings.
138.29 ±1.2
Mounting flange
Case gauge port "M14"
Port ISO 1926-1 - 7/16-20
Shaft C L
94.7 ±0.8
Mounting flange
110.9 ±1.2
Shaft C L
Alternative
OR
P700 52 604_D09
Pin Assignment
1 Ground
2 Supply
11063344 | BC00000059en-US1001 | 61
