H1P Auxiliary Mounting, Option H5 (Sae B-B, 15 Teeth) - Danfoss H1 Technical Information

Technical Information
H1 Axial Piston Single Pumps, Size 060/068
Dimensions

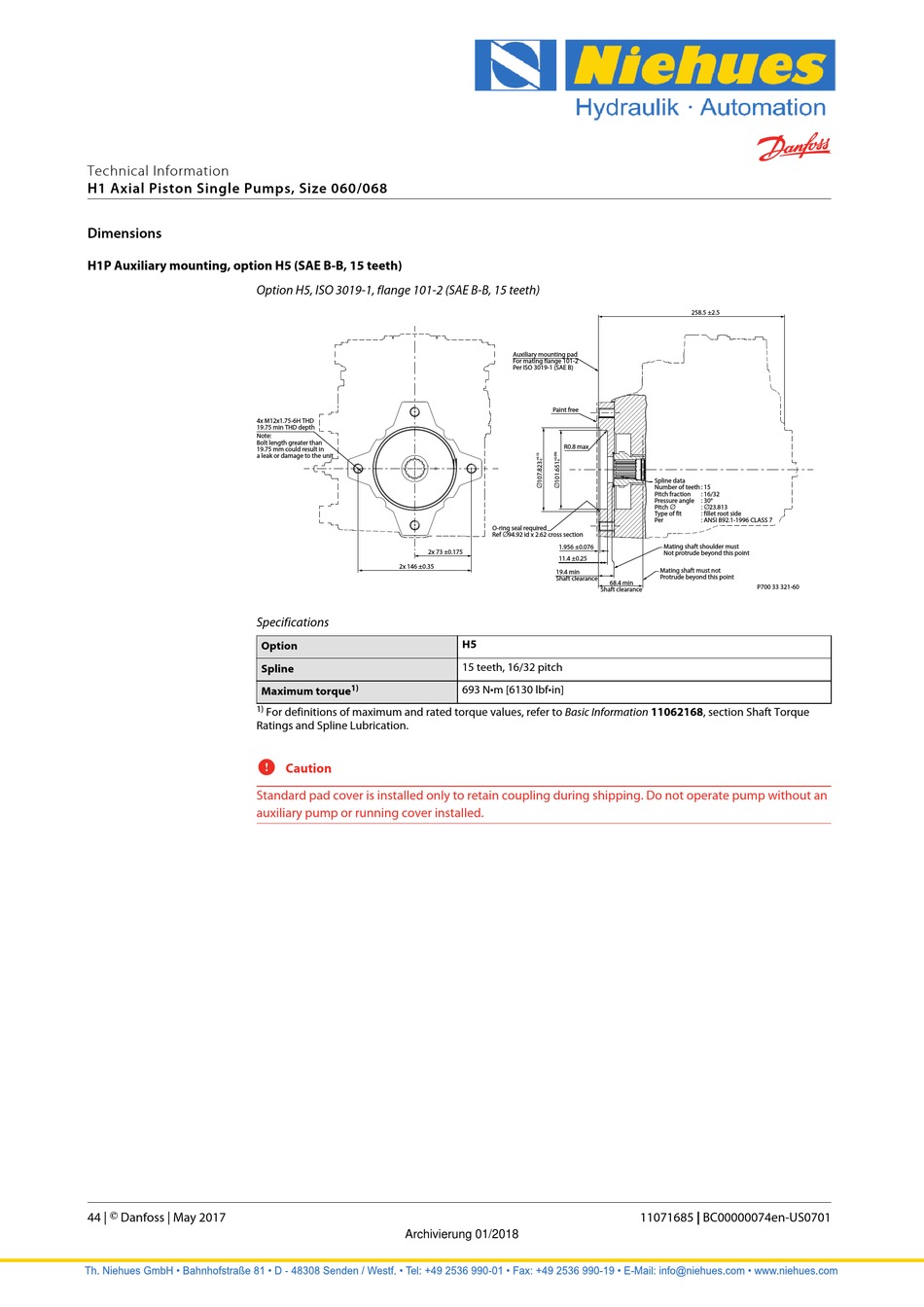

H1P Auxiliary mounting, option H5 (SAE B-B, 15 teeth)

Option H5, ISO 3019-1, flange 101-2 (SAE B-B, 15 teeth)
4x M12x1.75-6H THD
19.75 min THD depth
Note:
Bolt length greater than
19.75 mm could result in
a leak or damage to the unit
Specifications
Option
Spline
Maximum torque
1)
Ratings and Spline Lubrication.
C
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
44 | Danfoss | May 2017
2x 73 ±0.175
2x 146 ±0.35
1)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Caution
Archivierung 01/2018
Auxiliary mounting pad
For mating flange 101-2
Per ISO 3019-1 (SAE B)
Paint free
R0.8 max
O-ring seal required
Ref ∅94.92 id x 2.62 cross section
1.956 ±0.076
11.4 ±0.25
19.4 min
Shaft clearance
68.4 min
Shaft clearance
H5
15 teeth, 16/32 pitch
693 N•m [6130 lbf•in]
258.5 ±2.5
Spline data
Number of teeth : 15
Pitch fraction : 16/32
Pressure angle : 30°
Pitch ∅ : ∅23.813
Type of fit : fillet root side
Per : ANSI B92.1-1996 CLASS 7
Mating shaft shoulder must
Not protrude beyond this point
Mating shaft must not
Protrude beyond this point
P700 33 321-60
11071685 | BC00000074en-US0701
