ZYNQ FPGA Development Board AC7010/AC7020 User Manual

Part 3: Power Supply

The power input voltage of the development board is DC5V, The
schematic diagram of the power supply design on the AX7010 FPGA
development board is shown in Figure 3-1
Power input: The core board supply voltage is DC5V. When the core board
works alone, connect the USB cable to the USB port of the computer to supply
power to the core board. When working with carrier board together, the core
board can also be powered through the carrier board. If the AC7010/AC7020
core board is powered by the carrier board, remove the 0Ω resistor (R161) on
the board. Please do not use other specifications of the power supply to avoid
damage to the core board.
follows:
The development board is powered by +5V, and is converted into +1.5V,
8 / 40
The power supply design on the core board is as

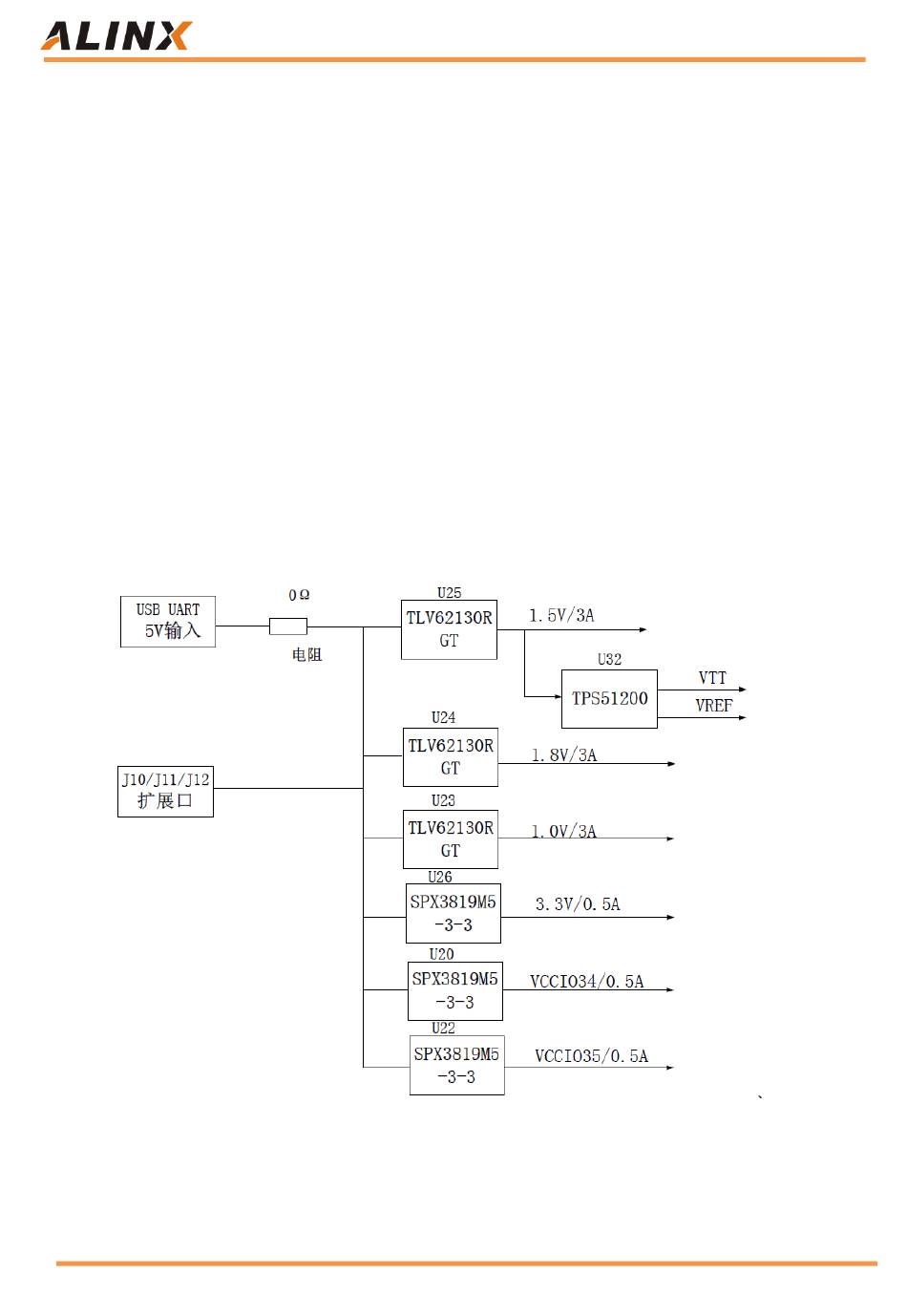

Figure 3-1: Power Supply Schematic
