ZYNQ FPGA Development Board AC7010/AC7020 User Manual
In the PCB design, an 8-layer PCB is used, and a separate power supply
layer and GND layer are reserved, so that the power supply of the entire
development board has very good stability.

Part 4: ZYNQ Chip

The Core development board uses Xilinx's Zynq7000 series chip, AC7010
chip
model
XC7Z020-2CLG400I). The chip's PS system integrates two ARM CortexTM-A9
processors, AMBA® interconnects, internal memory, external memory
interfaces and peripherals. These peripherals mainly include USB bus interface,
Ethernet interface, SD/SDIO interface, I2C bus interface, CAN bus interface,
UART interface, GPIO etc. The PS can operate independently and start up at
power up or reset. Figure 4-1 detailed the Overall Block Diagram of the
ZYNQ7000 Chip.
10 / 40

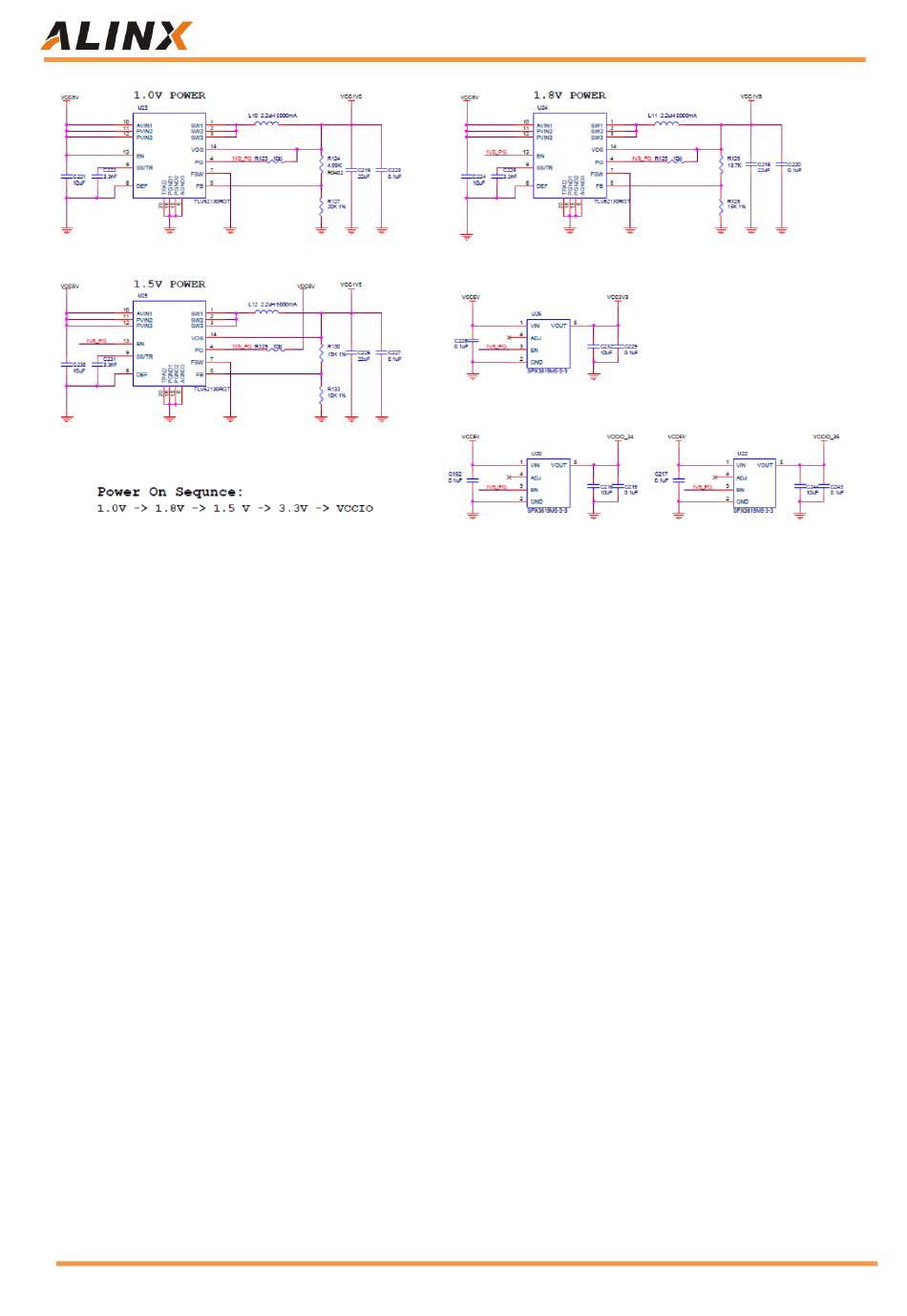

Figure 3-2: Core Board Power Supply Circuit
is
XC7Z010-1CLG400C
Amazon Store: https://www.amazon.com/alinx
(AC7020
chip
model
is
