ZYNQ FPGA Development Board AC7010/AC7020 User Manual

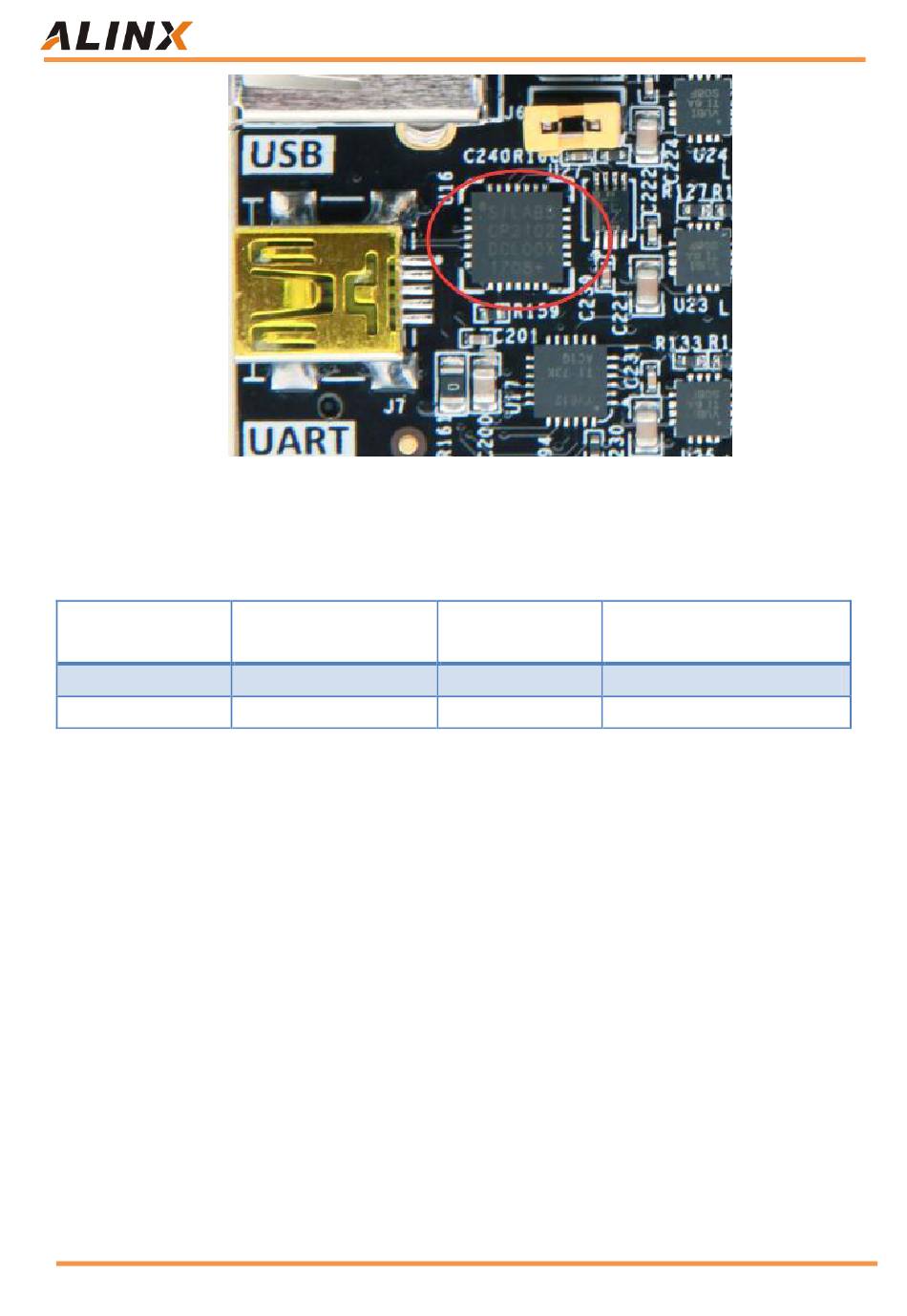

Figure 6-9: CP2102GM chip on the FPGA Core Board
USB to serial port ZYNQ pin assignment:
Signal name
UART_TX
UART_RX
Silicon Labs provides virtual COM port (VCP) drivers for host PCs. These
drivers allow the CP2102GM USB-UART bridge device to be displayed as a
COM port in communications application software, such as TeraTerm or
HyperTerminal. The VCP device driver must be installed before the PC host
establishes communication with the AC7010/AC7020 FPGA core board.

Part 6.6: SD Card Slot

The AC7010/AC7020 core board contains a Micro SD card interface to
provide user access to the SD card memory, the BOOT program for storing the
ZYNQ chip, the Linux operating system kernel, the file system and other user
data files.
The SDIO signal is connected to the IO signal of the PS BANK501 of
ZYNQ. Since the VCCMIO of the BANK is set to 1.8V, but the data level of the
28 / 40
ZYNQ Pin Name
PS_MIO48_501
PS_MIO49_501
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin
Number
B12
C12
Description
Uart data input
Uart data output
