ZYNQ FPGA Development Board AC7010/AC7020 User Manual
The main parameters of the PL logic part are as follows:
 Logic Cells: 28K
 Look-up-tables (LUTs): 17600
 Flip-flops: 35200
 18x25MACCs:80
 Block RAM:240KB
 Two AD converters for on-chip voltage, temperature sensing and up
to 17 external differential input channels, 1MBPS
XC7Z010-1CLG400C (or XC7Z020-2CLG400I) chip, package is BGA, 400
pins, the pin pitch is 0.024 inch. Again, let's talk about the BGA pin. When we
use the BGA package chip, the pin name becomes in the form of
numbers, such as E3, G3, etc., Therefore, when we look at the schematic, we
see the form of the

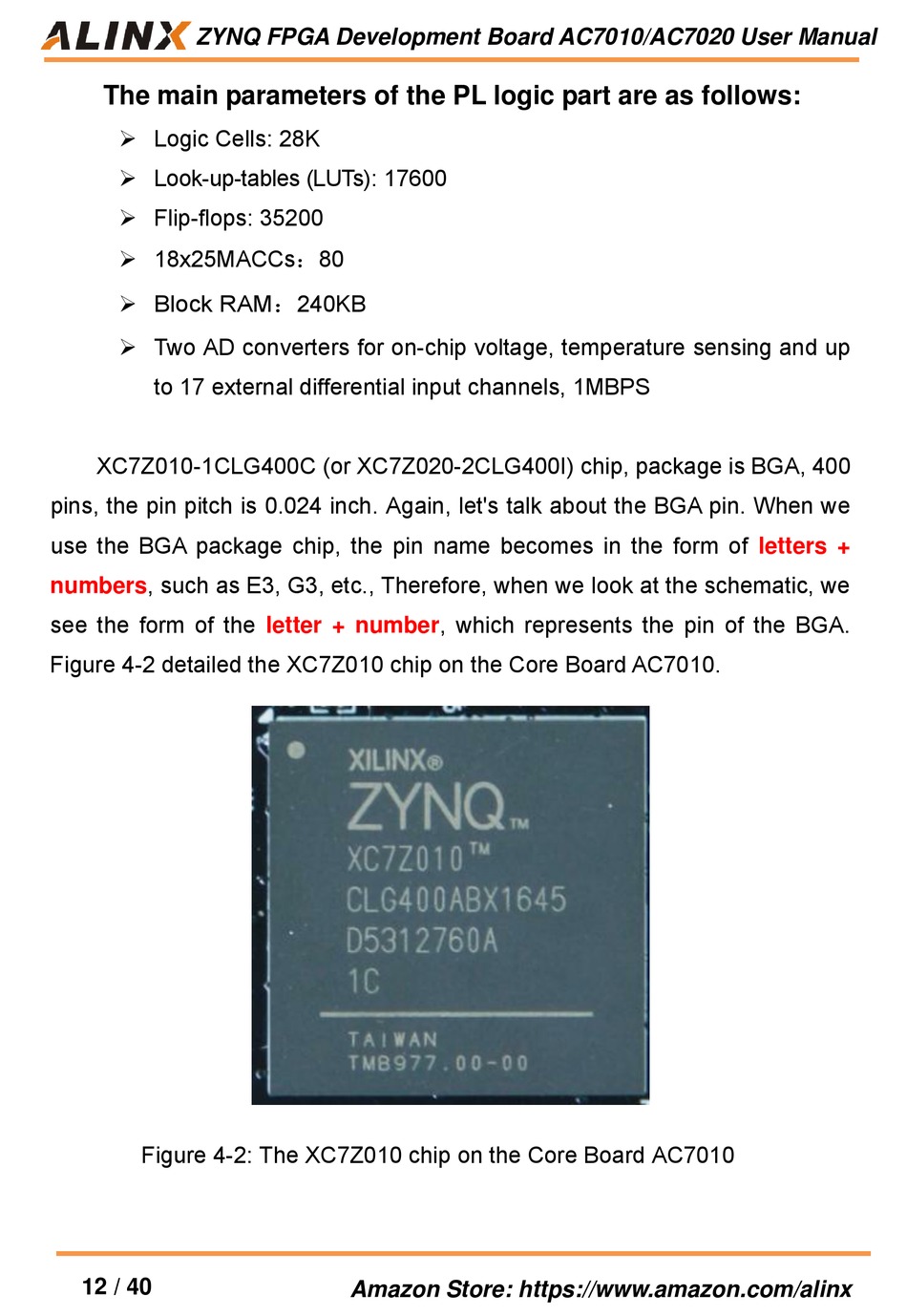

Figure 4-2 detailed the XC7Z010 chip on the Core Board AC7010.
Figure 4-2: The XC7Z010 chip on the Core Board AC7010
12 / 40
number, which represents the pin of the BGA.
letter +
