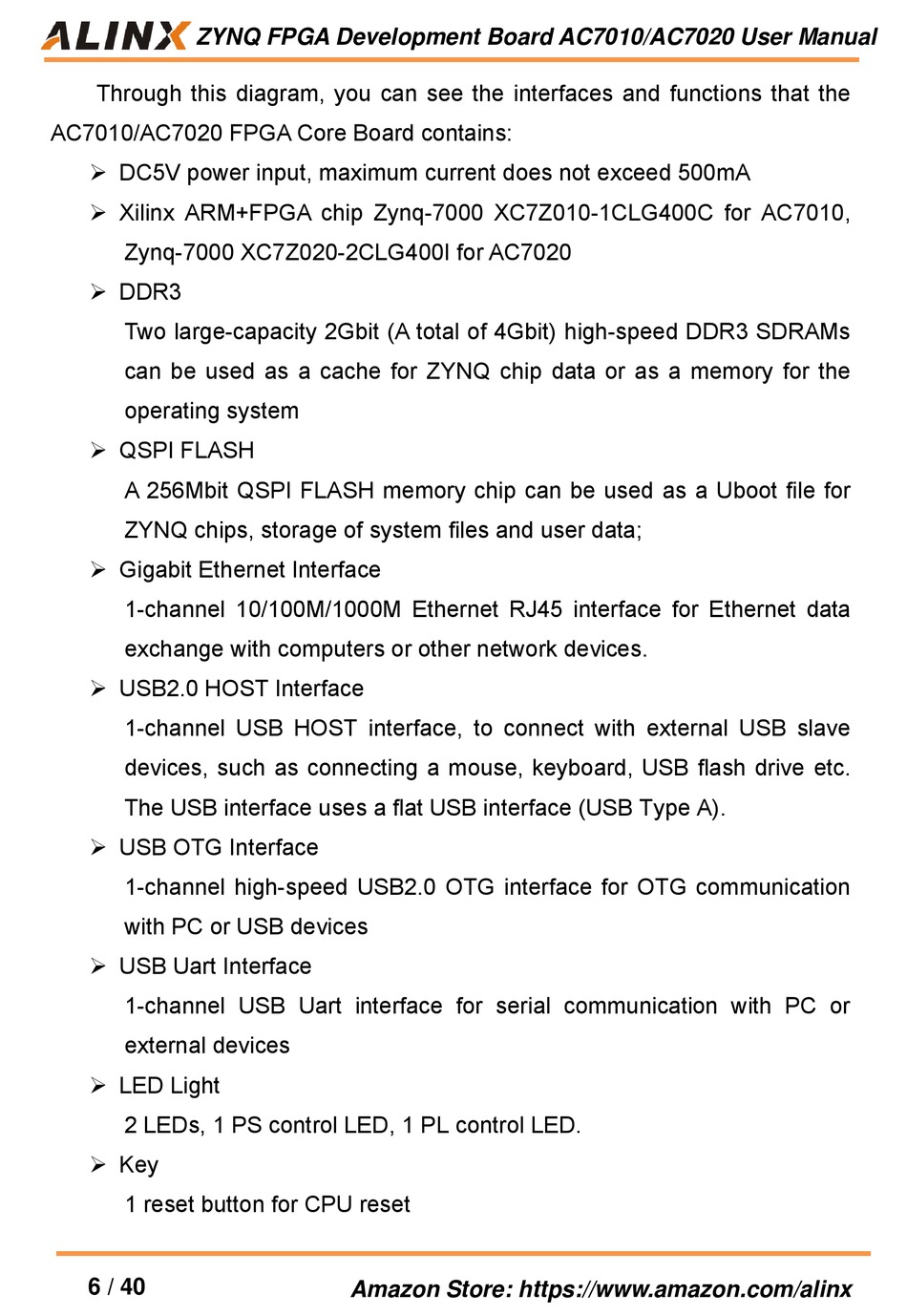

ZYNQ FPGA Development Board AC7010/AC7020 User Manual
Through this diagram, you can see the interfaces and functions that the
AC7010/AC7020 FPGA Core Board contains:
 DC5V power input, maximum current does not exceed 500mA
 Xilinx ARM+FPGA chip Zynq-7000 XC7Z010-1CLG400C for AC7010,
Zynq-7000 XC7Z020-2CLG400I for AC7020
 DDR3
Two large-capacity 2Gbit (A total of 4Gbit) high-speed DDR3 SDRAMs
can be used as a cache for ZYNQ chip data or as a memory for the
operating system
 QSPI FLASH
A 256Mbit QSPI FLASH memory chip can be used as a Uboot file for
ZYNQ chips, storage of system files and user data;
 Gigabit Ethernet Interface
1-channel 10/100M/1000M Ethernet RJ45 interface for Ethernet data
exchange with computers or other network devices.
 USB2.0 HOST Interface
1-channel USB HOST interface, to connect with external USB slave
devices, such as connecting a mouse, keyboard, USB flash drive etc.
The USB interface uses a flat USB interface (USB Type A).
 USB OTG Interface
1-channel high-speed USB2.0 OTG interface for OTG communication
with PC or USB devices
 USB Uart Interface
1-channel USB Uart interface for serial communication with PC or
external devices
 LED Light
2 LEDs, 1 PS control LED, 1 PL control LED.
 Key
1 reset button for CPU reset
