ZYNQ FPGA Development Board AC7010/AC7020 User Manual
design, when the reset key is pressed, the reset signal is low, and the ZYNQ
chip is reset. When the key is released, the ZYNQ chip starts to work normally.

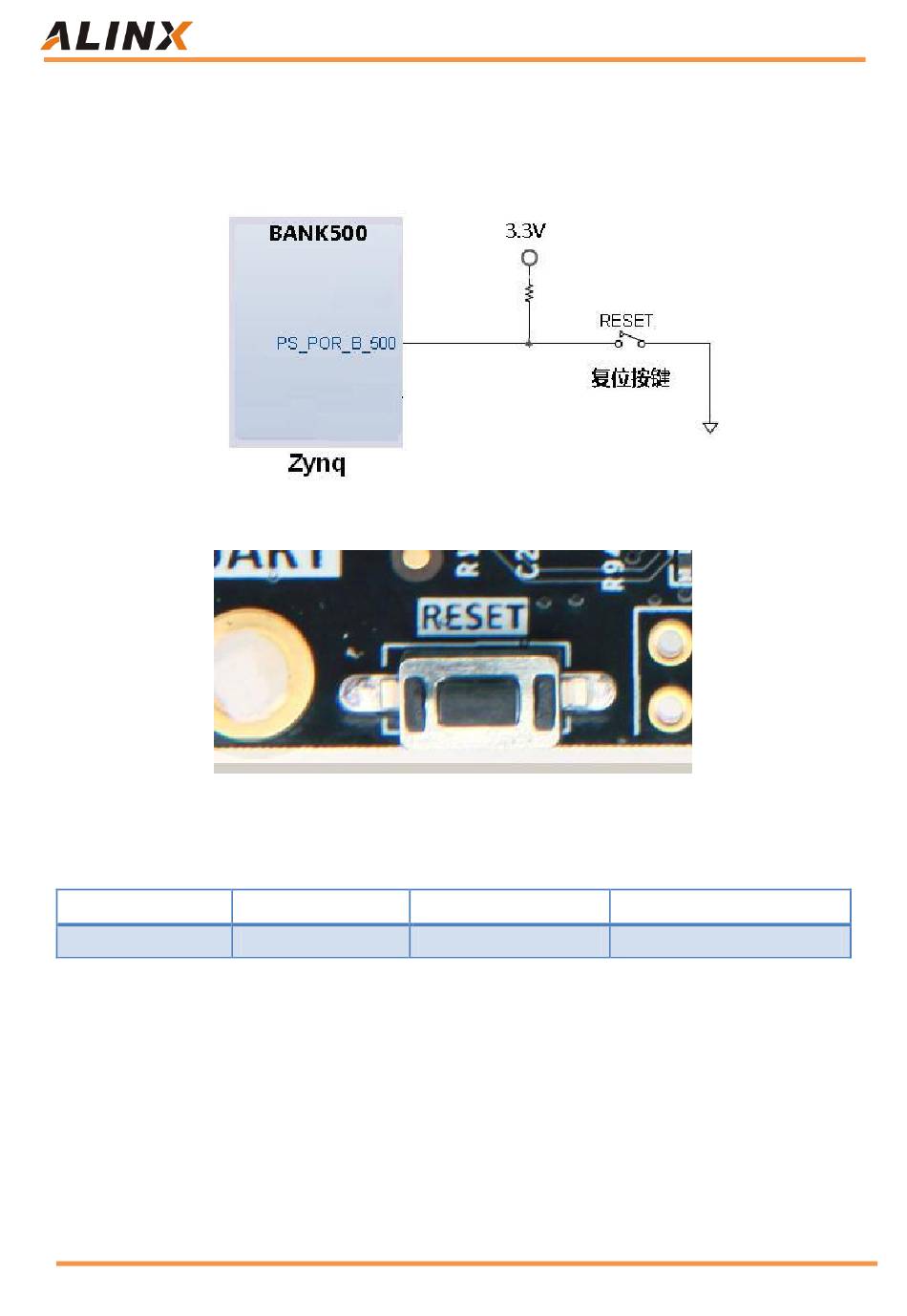

Figure 6-16 shows the reset key connection:
Figure 6-14: Zynq-7000 and PS Key connection diagram
Figure 6-15: PS Reset Key on the FPGA Board
PS Reset Key pin assignment:
Signal Name ZYNQ Pin Name ZYNQ Pin Number Description
PS_POR_B PS_POR_B _500 C7 PS Reset Key
Part 7：ZYNQ PL Peripherals

Part 7.1: User LEDs

The PL part of the AC7010/AC7020 FPGA core board is also connected to
one LED light-emitting diode. The schematic diagram is shown in Figure 7-1,
The LED signal is connected to the IO of the PL part BANK34. When the IO
31 / 40
