ZYNQ FPGA Development Board AC7010/AC7020 User Manual

Part 1: Introduction

Here, a brief introduction to the ZYNQ7000 core board AC7010/AC7020 is
provided.
The core board uses Xilinx's Zynq7000 series of chips, the AC7010 uses
the Zynq7000's XC7Z010-1CLG400C chip, and the AC7020 uses the
Zynq7000's XC7Z020-2CLG400I chip, both of which are 400-pin FBGA
packages. The ZYNQ7000 chip can be divided into a processor system part
processor system (PS) and a programmable logic part Programmable Logic
(PL).
On the AC7010/AC7020 core board, the PS part of the ZYNQ7000 is
equipped with a wealth of external interfaces and devices for user convenience
and function verification. The IO ports on the PL side are all led to the 2.54mm
connector on the board for user expansion. In addition, there is a 7 x 2 JTAG
connector on the core board that can be downloaded and debugged via the
ALINX Xilinx USB Cable Downloader. Figure 1-2 shows the structure of the
entire AC7010/AC7020 system:

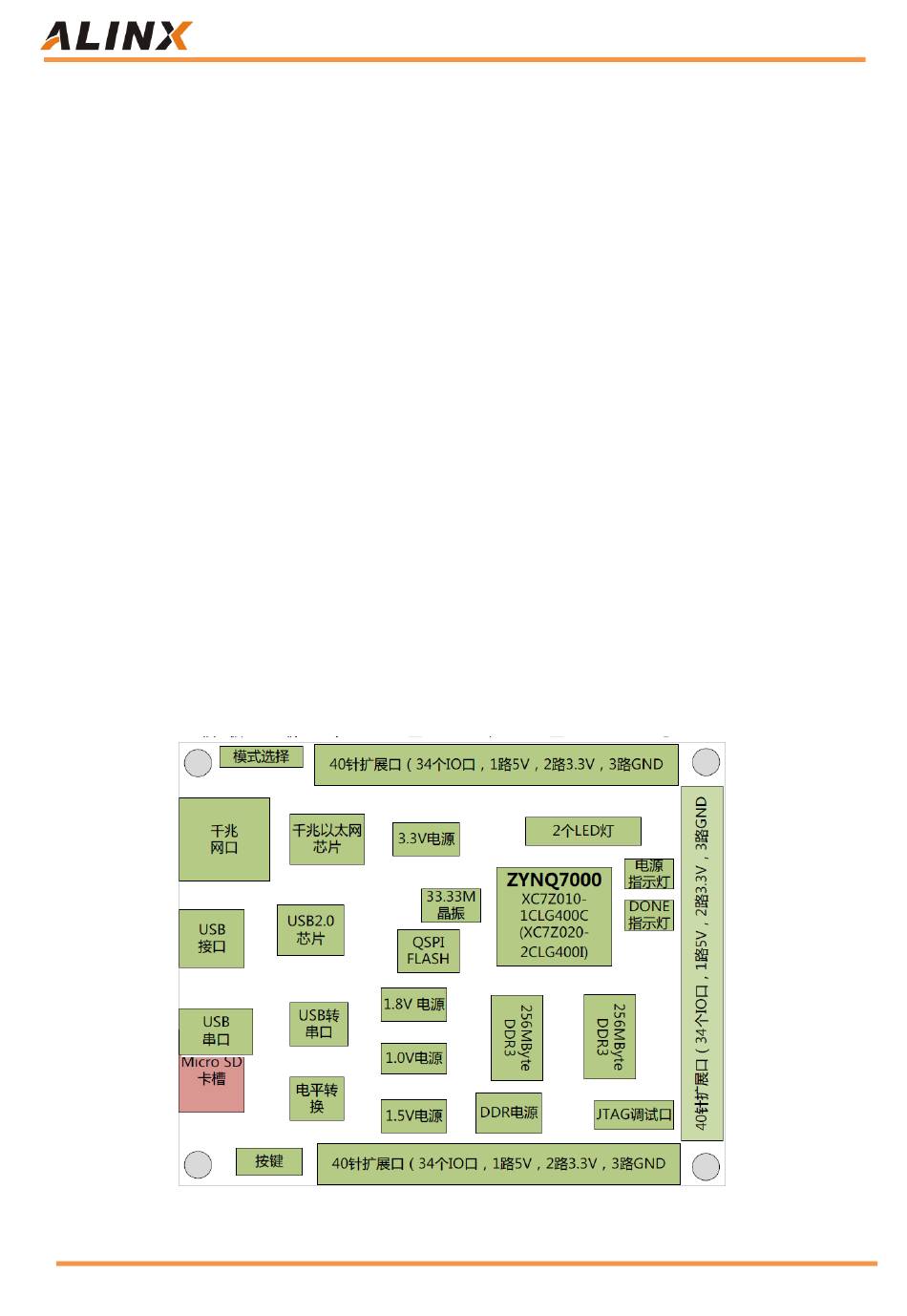

Figure 1-1: The Schematic Diagram of the AC7010/AC7020
5 / 40
