ZYNQ FPGA Development Board AC7010/AC7020 User Manual

Part 6.7: User LEDs

On the AC7010/AC7020 core board, one LED light-emitting diode is

connected to the BANK500 IO of the PS part, and the user can use this LED

light to debug the program. When the BANK500 IO voltage is high, the LED

light is off, and when the BANK500 IO voltage is low, the LED will be

illuminated. Figure 6-14 shows the connection between ZYNQ BANK500 IO

and LED lights.

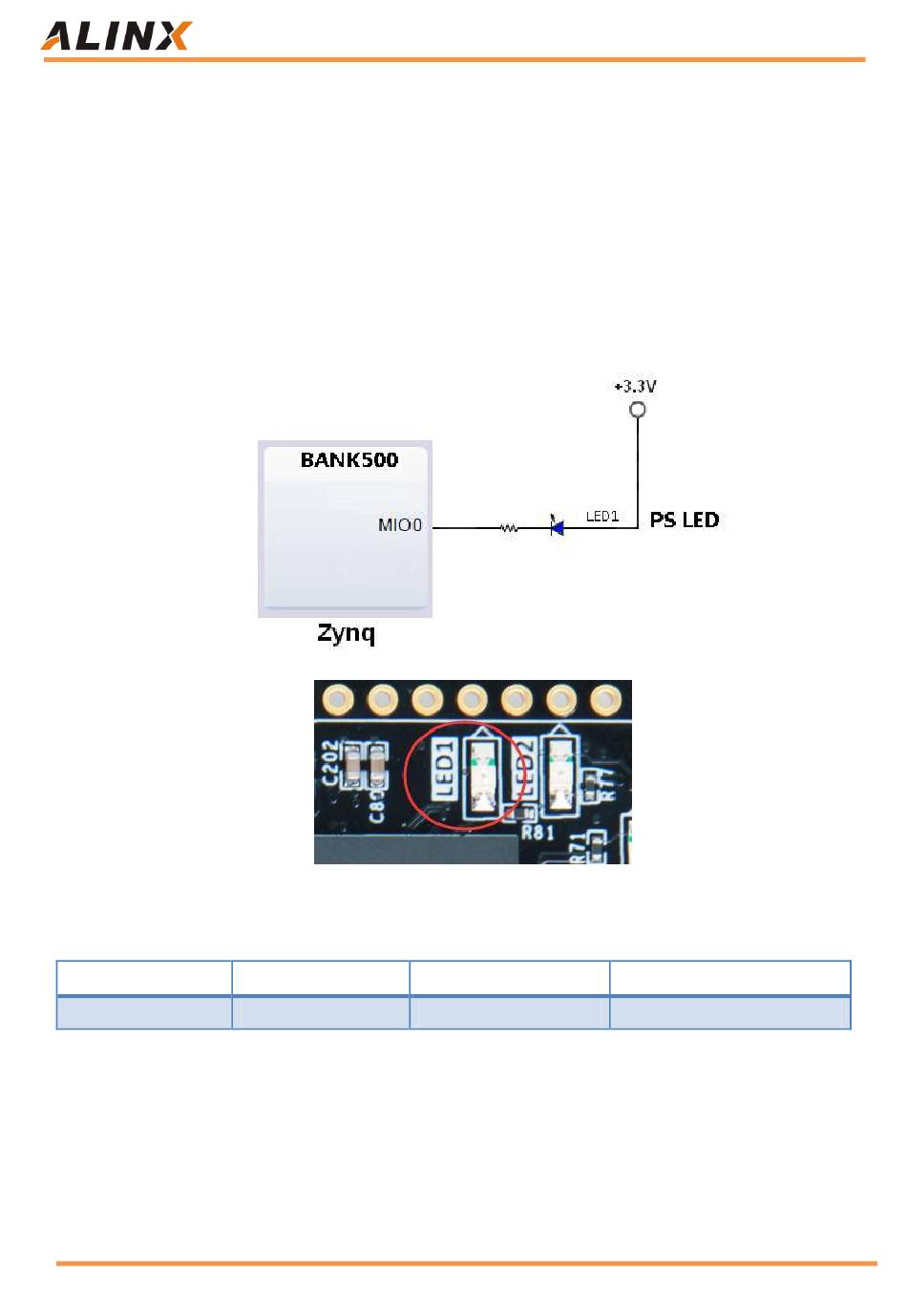

Figure 6-12: Zynq-7000 and LED connection diagram

Figure 6-13: PS User LEDs on the FPGA Core Board

PS User LEDs pin assignment:

Signal Name

MIO0_LED

On the AC7010/AC7020 core board, the entire ZYNQ system is reset by a

RESET key, and the reset signal is connected to the PS pin's reset pin

PS_POR_B_500. The user can use this user key to manually reset. In the

30 / 40

ZYNQ Pin Name

ZYNQ Pin Number

PS_MIO0_500

Amazon Store: https://www.amazon.com/alinx

Description

PS User LED LED1
