Part 4.1: JTAG Interface

First, let's talk about the JTAG debug interface (J14) of the
AC7010/AC7020 core board. Users can debug and download the ZYNQ
program by connecting the ALINX Xilinx USB Cable downloader. Figure 4-3

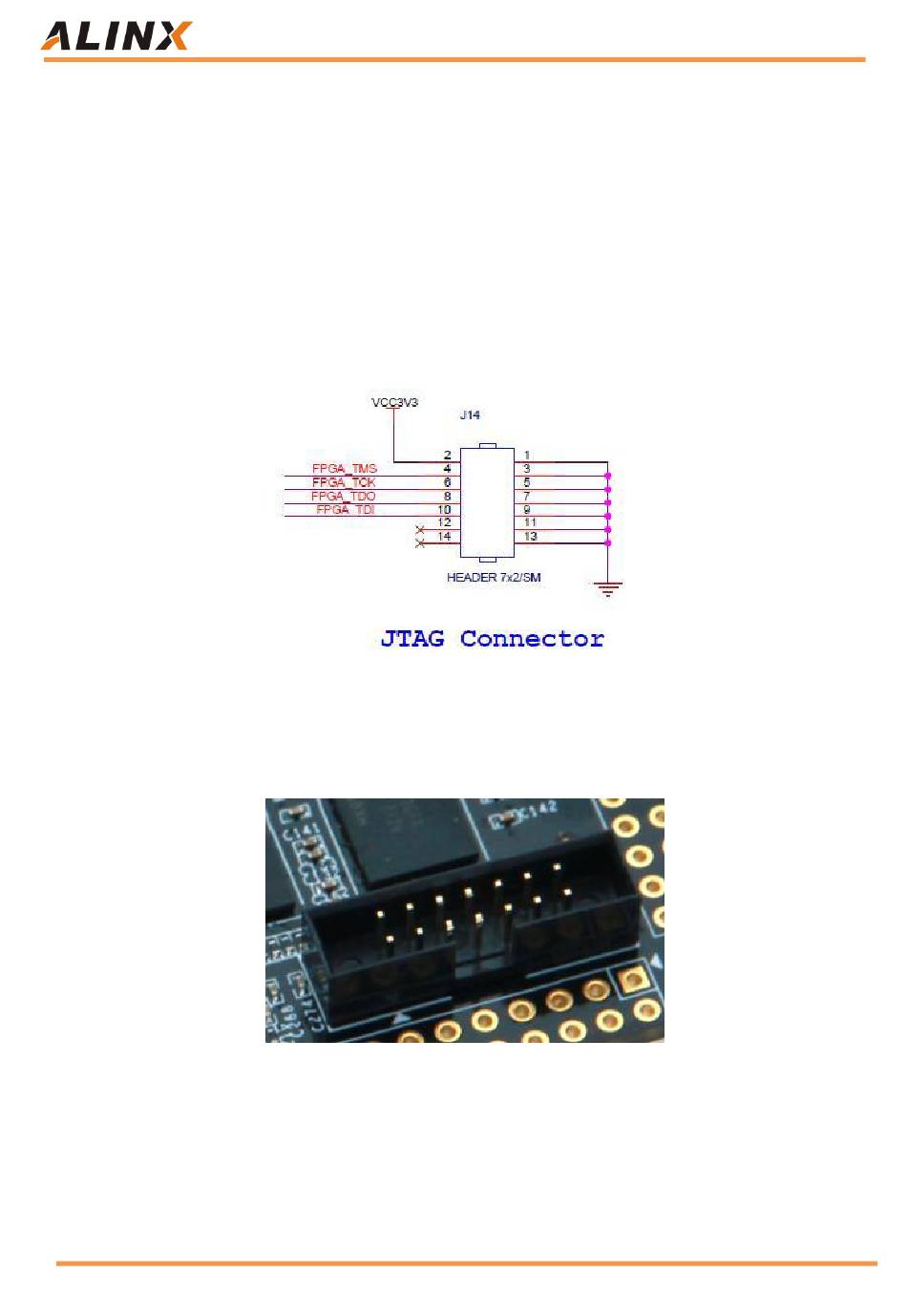

shows the schematic part of the JTAG port, which involves four signals, TCK,
TMS, TDO, and TDI. These four signals are connected to the JTAG pins of
BANK0 of the Zynq7010 (Zynq7020) chip (TCK_0, TMS_0, TDO_0 and TDI_0)
The JTAG interface uses a 14-pin 0.06 inch standard connector, and
Figure 4-4 detailed JTAG interface on the core board.
Figure 4-4: The JTAG on the FPGA Core Board

Part 4.2: FPGA Power System

The power supply of the ZYNQ chip is divided into the PS system part and
the PL logic part, and the two parts of the power supply work independently.
13 / 40
Figure 4-3: The JTAG port schematic
