Series 800 Maintenance Manual

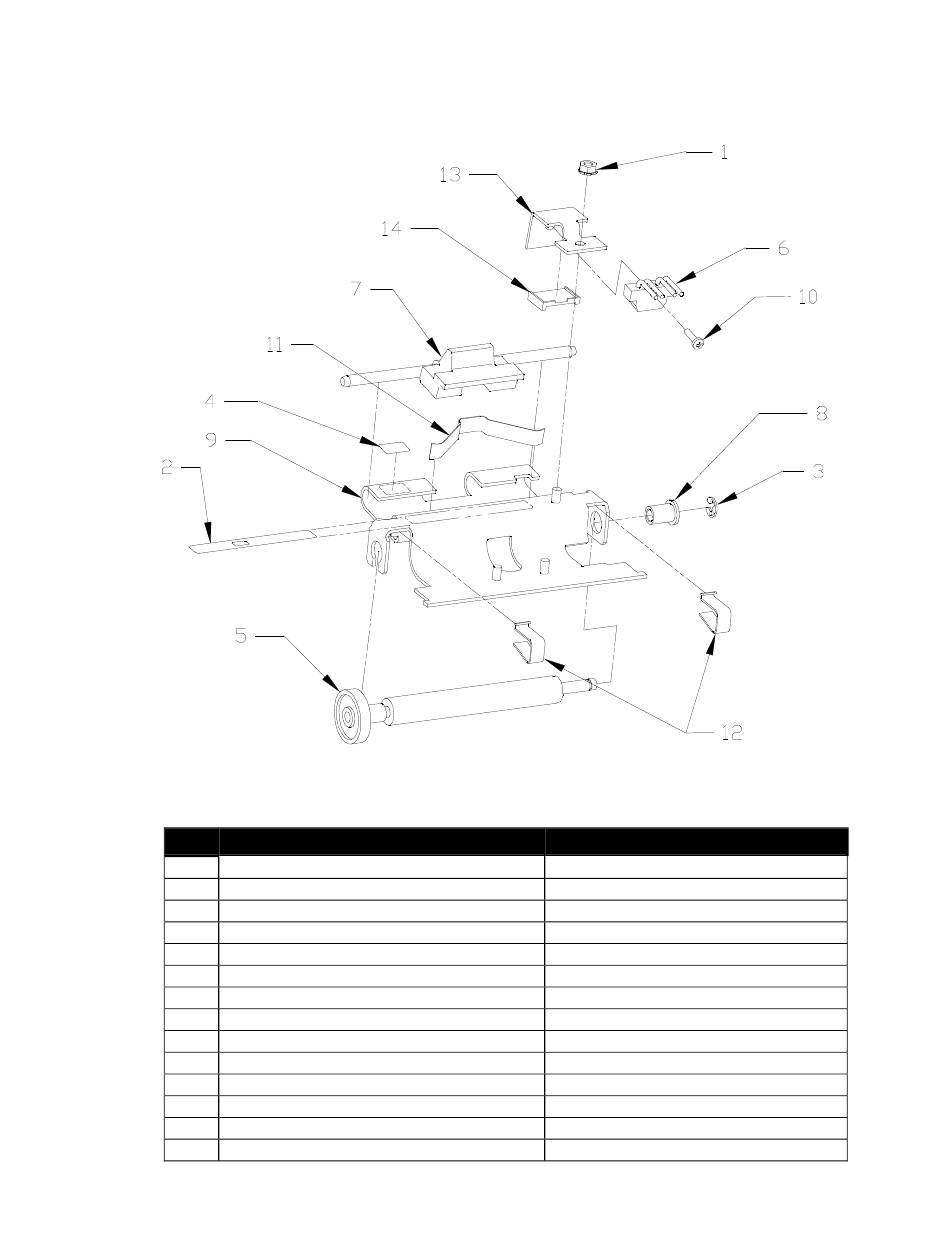

Cover and Platen Assembly
No. Description (standard parts)
1 Nut-M3 Hex
2 Label-Press To Open
3 Retainer-'E' Ring
4 Label-Green Dot
5 Assy-Platen and Gear
6 Assy-Top of Form Sensor
7 Assy-Latch Shaft
8 Bearing-platen
9 Bracket-Pivot
10 Screw-M2X8MM Ph
11 Spring-Leaf Latch
12 Clip-Spring
13 Bracket-Top of Form
14 Locator-Sensor
Page
36
Confidential Information: Not for Distribution.
Part No. (History)
98-0621*
85-00549*
520-9800003
85-00550*
RM034651-01
RM034657-01
M034660-01
M068263-01
M068270-03*
M068306-01*
M068316-01
M068317-01
M068318-01*
85-04169
* Not available as a spare part
Rev C
Assembly/Disassembly
Mar-03
