Chapter 8: Parts Lists

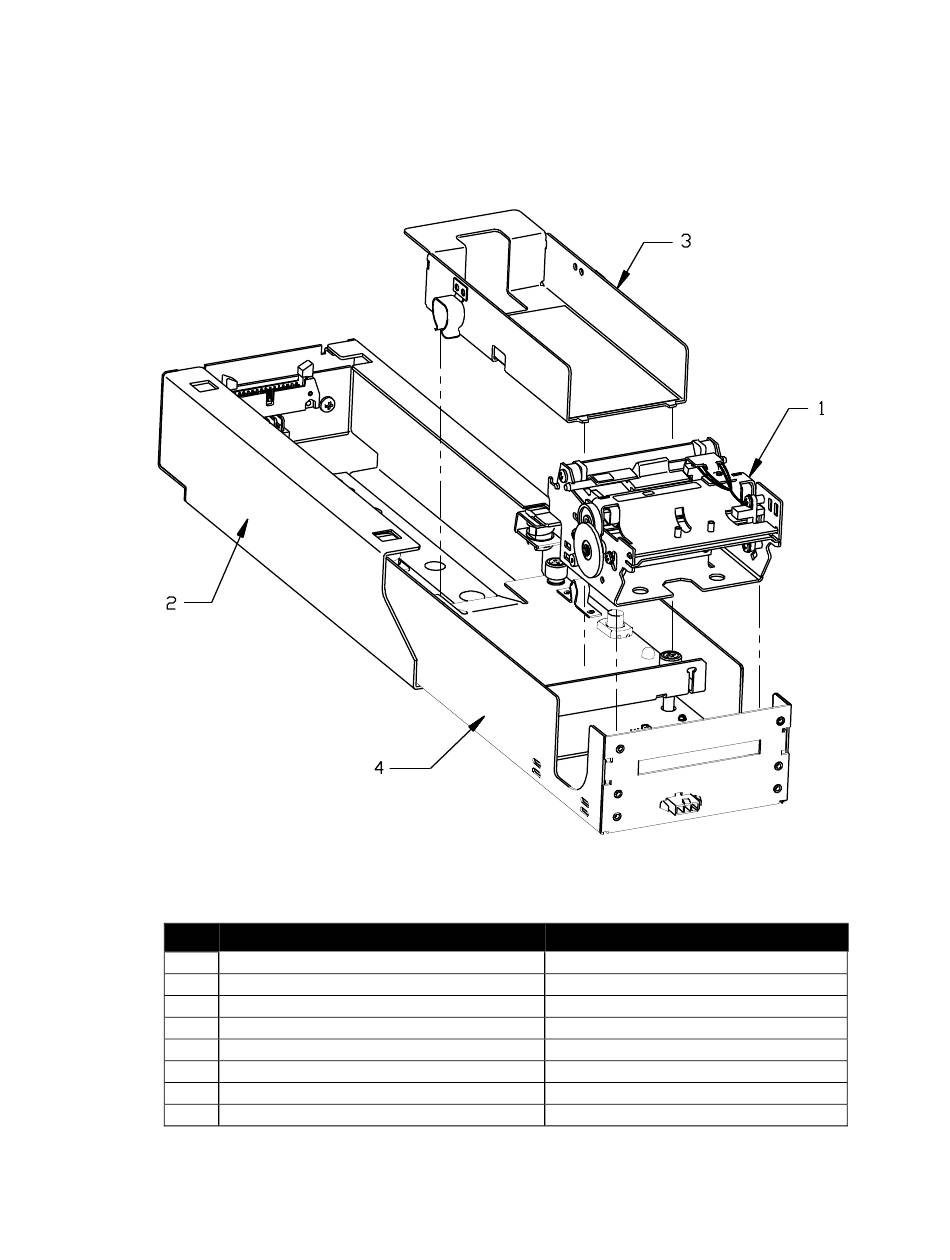

Complete 850 Assembly
No.
Description (standard parts)
1
Print Mech Assy-STD
1
Print Mech Assy-RAP
2
Assy-Serial Outer Slide
2
Assy-Netplex Outer Slide
3
Tray-200 Ticket w/Label
3
Tray-400 Ticket w/Label
3
Tray-600 Ticket w/Label
4
Assy-Inner Slide
Mar-03
Confidential Information: Not for Distribution.
Part No. (History)
RM034647-01
R85-00525
R85-00524
RM034648-01
85-03672
85-03673
85-03674
85-03675*
* Not available as a spare part
Rev C
Series 800 Maintenance Manual
Page
31
