Series 800 Maintenance Manual
Removing the Ticket Tray from the Main Printer Assembly

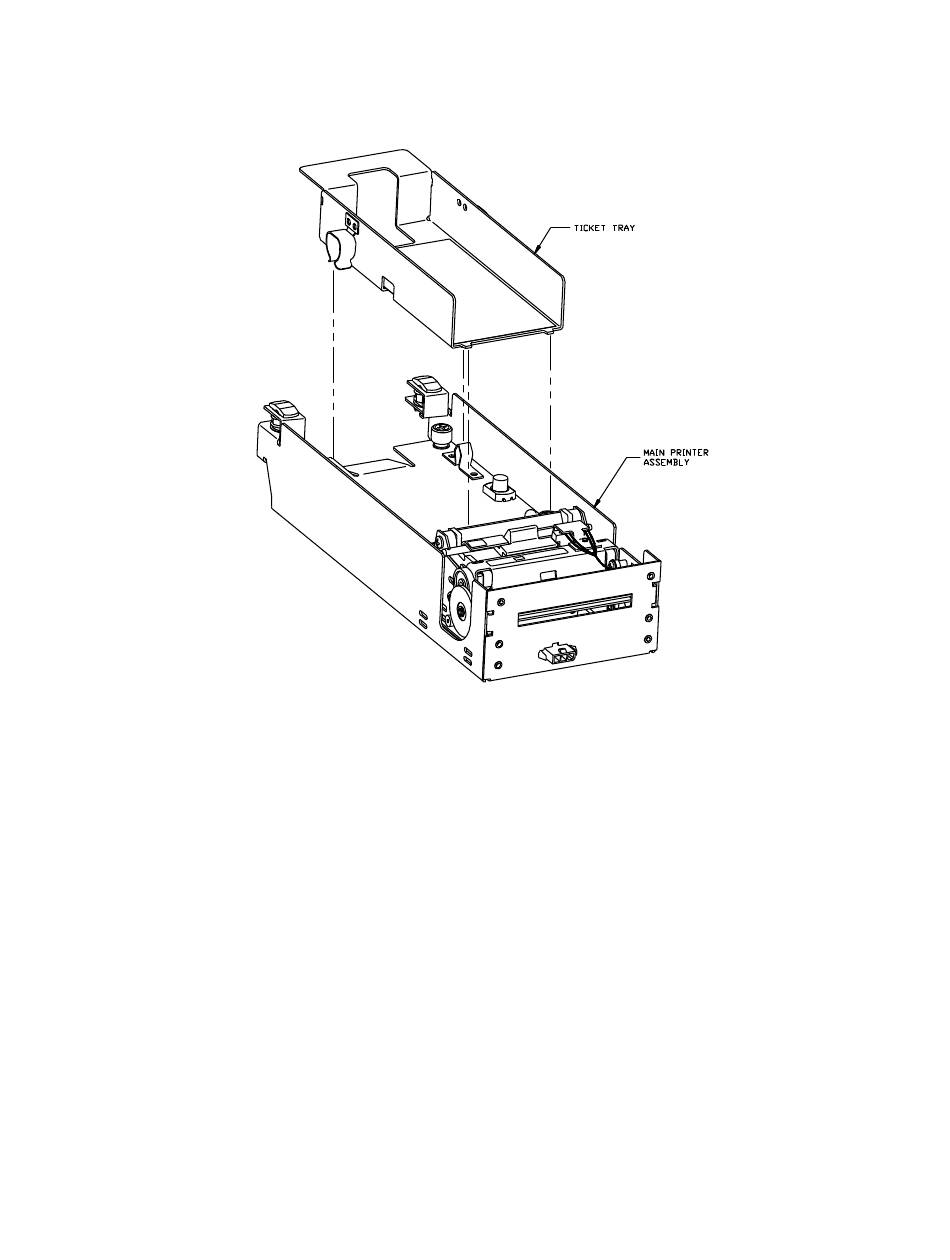

Figure 18: Removing Ticket Tray
1.
Lift on back of Ticket Tray to remove it. It will unsnap from the printer without the need for tools.
2.
To re-install the Ticket Tray, insert the two front tabs of the Ticket Tray into the provided slots, and
rotate the rear end of the tray, and re-sanp it back into place.
Page
26
Confidential Information: Not for Distribution.
Rev C
Assembly/Disassembly
Mar-03
