Summary of Contents for TransAct EPIC TR80

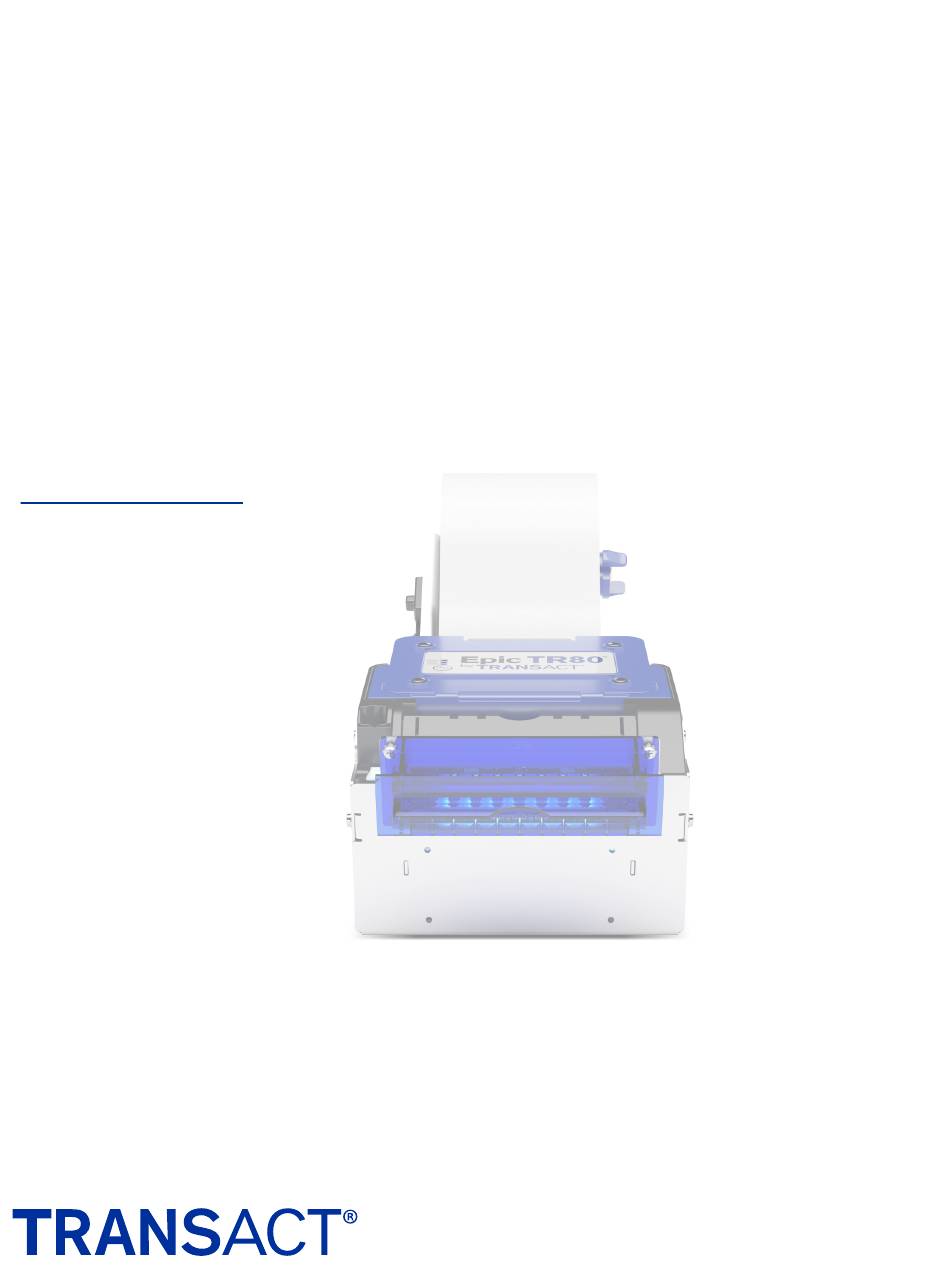

- Page 1 EPIC TR80 EPIC TR80 Quick Start Guide...
- Page 2 Epic TR80 Quick Set Up This document is intended to provide a basic guide for the setup of the Epic-TR80 printer. For more detailed information, refer the Epic TR80 OEM Integration Manual. Paper Roll Support • Confirm that the spindle mounting bracket is correctly oriented and adjusted for the required paper type.
- Page 3 Technologies Incorporated Note: The core adaptor must be used with 82.5mm paper. Failure to do so will result in incorrect printing and paper jams. Paper Core Adaptor 80mm Guide P/N 88-20205 Rev 1.1.2...
- Page 4 Technologies Incorporated Connect the Printer Install the printer in the host system. • Connect the communication cable. • Connect the paper low harness from the spindle arm. • Connect the power cable. • Install the rear paper guide • Ensure that the paper exit is not blocked. Paper Low Rear Paper Guide Power...
- Page 5 Technologies Incorporated Load Paper • Insert the paper roll on the spindle support arm. Paper should exit the top of the roll. • Apply power to the printer. The printer will beep and display a fault indication on the top cover LEDs. •...
- Page 6 Technologies Incorporated www.transact-tech.com ©2024 TransAct Technologies, Inc. P/N 88-20205 Rev 1.1.2...
