Electrical Connections

Electrical Connections

Serial Communications Interface PCB

All power and communications are supplied through the Serial Communications PCB located at the rear of
the printer. The interface connector is a 14 position Molex Minifit Jr®., part number 39-30-1400, and will
mate with Molex part number 39-01-2140 or equivalent . Refer to Table 3 for pin connections.

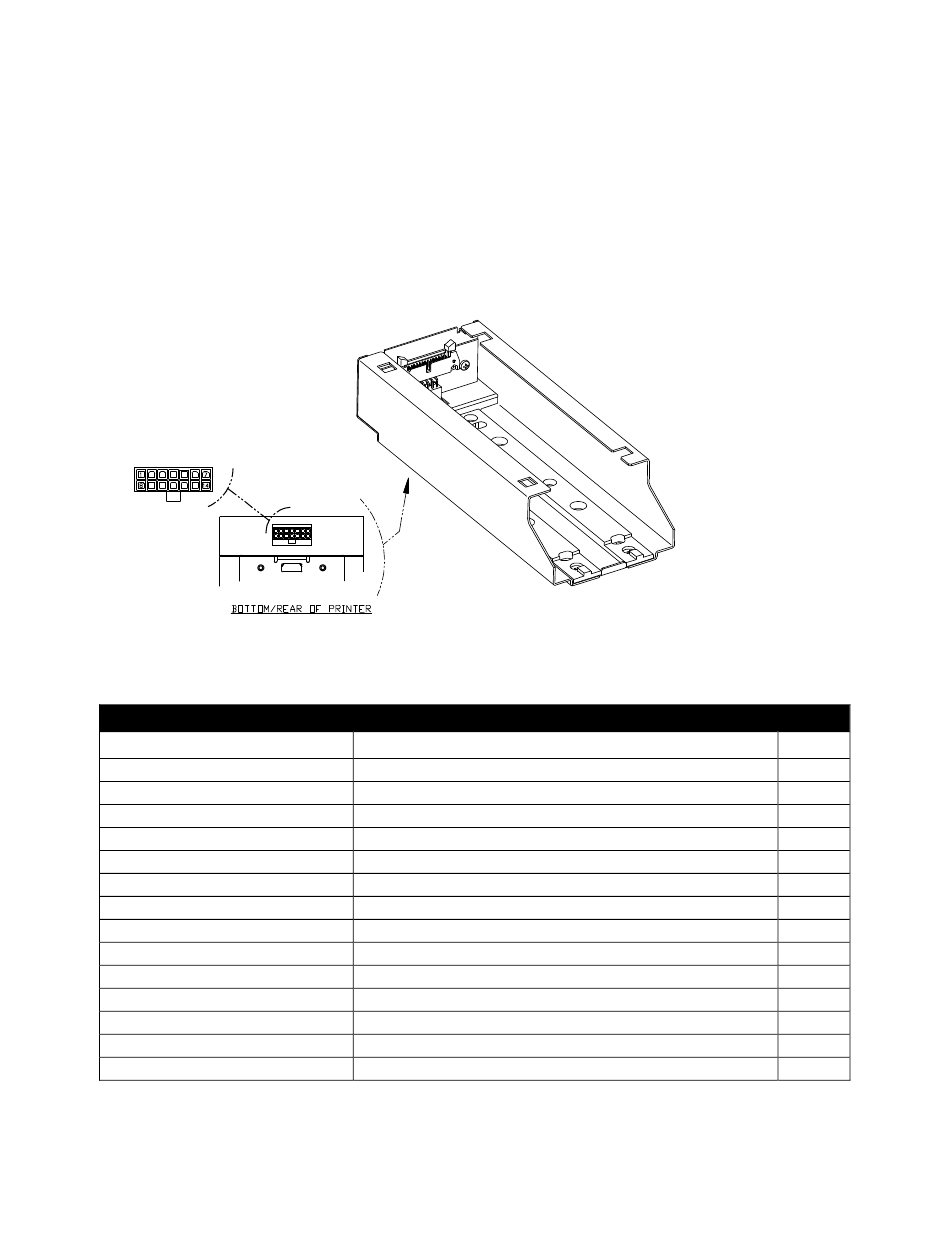

Figure 10 Serial Communication PCB Location and Connector Info

Serial Communication PCB Pin-Outs
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Table 3 Serial Communication PCB Pin-Outs

Mar-03
Confidential Information: Not for Distribution.
FUNCTION
MRESET
Not Connected
+12 VDC
Not Connected
GND
+24VDC
GND
+24VDC
Bezel Lamp – Switched +24VDC
GND
RS232 RXD
RS232 TXD
DTR
RTS
Rev C
Series 800 Maintenance Manual
I/O
I
N/C
I
N/C
-
-
-
-
O
-
I
O
O
O
Page
17
