TransAct Ithaca 800 Series Maintenance Manual page 42

Series 800 Maintenance Manual

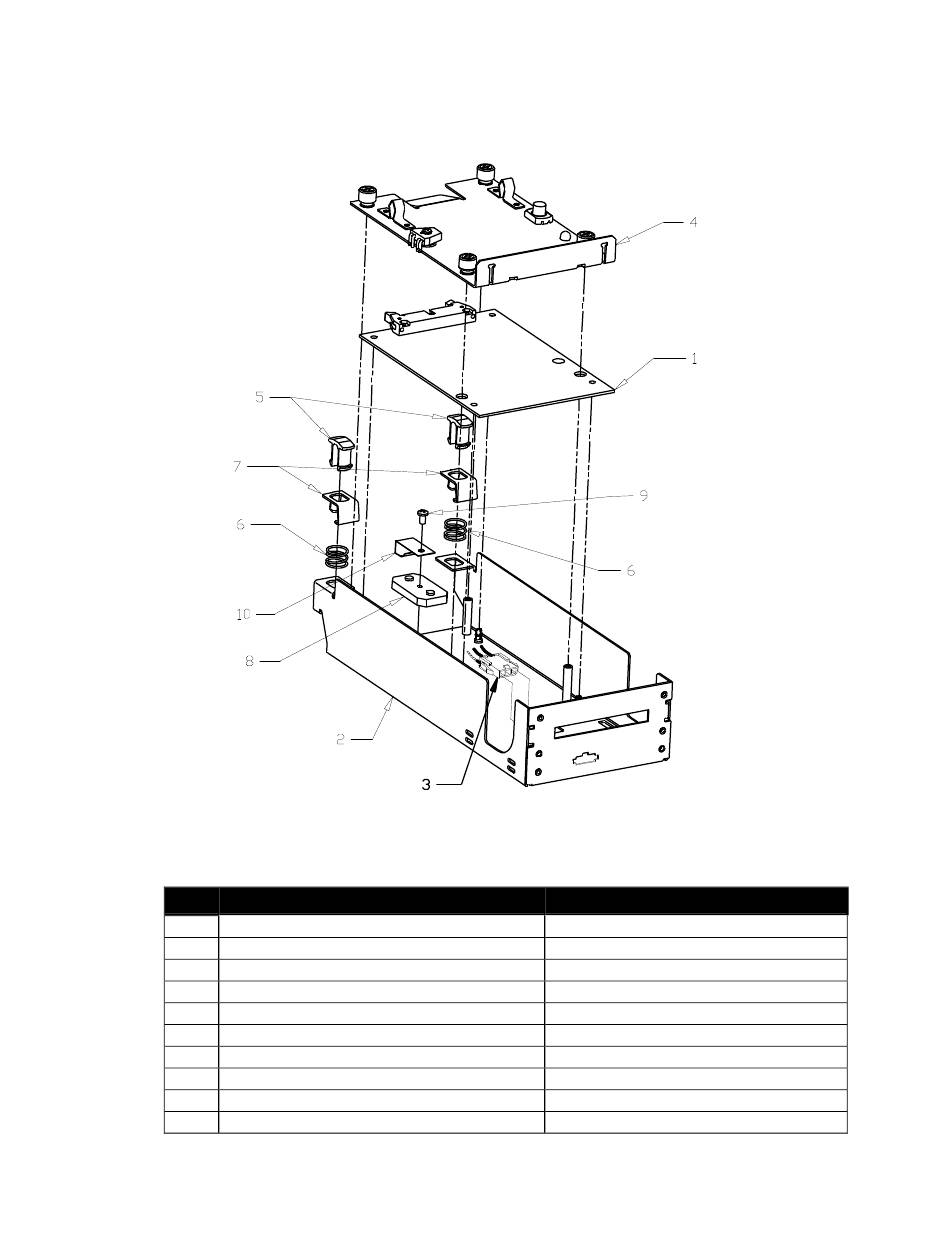

Inner Slide Assembly
No. Description (standard parts)
1 Assy-Controller PCB
2 Chassis-Inner Slide
3 Harness Assy-3/3 Straight
4 Assy-PCB Cover Plate
5 Plunger-Slide
6 Spring-Compression-Plunger
7 Shield-Plunger Guide
8 Stop-Slide Block
9 Screw-6-18X1/4 Ph Selftap
10 Strap-Ground Slide
Page
34
Confidential Information: Not for Distribution.
Part No. (History)
E030063-01
M068259-02
M034653-01
R85-03677
M068262-01
85-03552
85-03532
M068274-01
M067883-03
M068323-01
* Not available as a spare part
Rev C
Assembly/Disassembly
Mar-03
