Specifications and Requirements
Reliability
Printer Life:
Mean time between failures:
Printer electronics:
Printhead Life:
Flex ribbon (sliding module):
Power Requirements
24 Vdc ± 5%.
2.2 Amps max. @ 24 Vdc @ 25% print ratio.
Test Standards
FCC 47CFR, Part 15, Class A.
EN 55022, Class A.
ESD IEC 1000-4-2, 6kv direct discharge and 8kv air discharge.
Radiated RF IEC 1000-4-3, 3 v/m from 27 MHz to 1 GHz.
Fast transit (burst) IEC 1000-4-4, 2kv powerline, 1kv I/O lines (level 3, Industrial environment).
Accoustic Noise:
Mechanism Characteristics
Drawer Slide Force:
Opening Distance:
Drawer Holding Force:

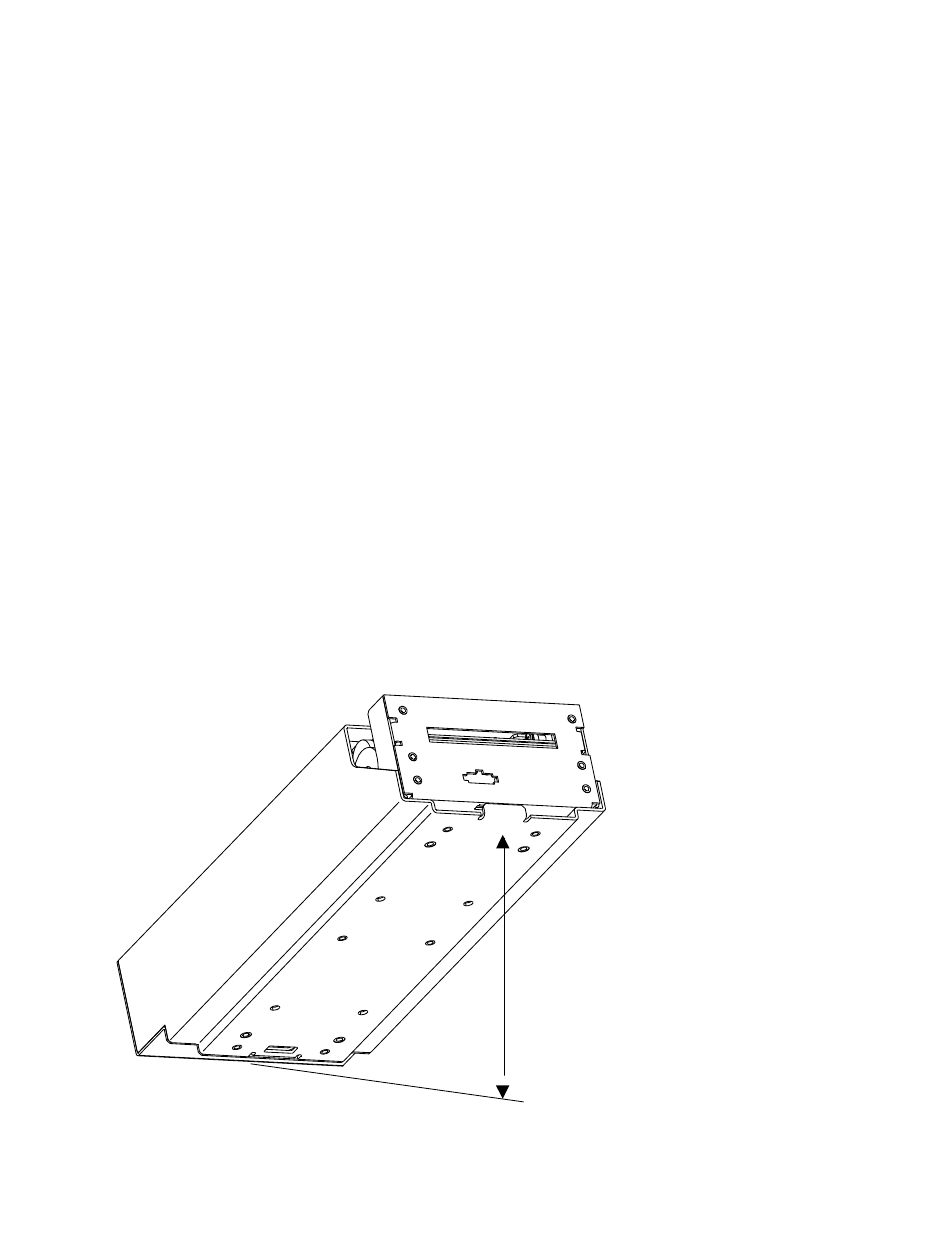

Mechanism Operating Angle:
Mar-03
Confidential Information: Not for Distribution.
20 million print lines.
45,000 hrs. @ 25% duty cycle.
250,000 hrs.
50Km min.
1,500 cycles min.
Sound pressure level: 60 decibels max.
(measured in 10 positions @ operator level with distance of 1 meter).
2 lbs. max.
200mm (8") (approximate )
4 lbs. (out of detents)
Horizontal to 45º inclination (ticket exit slot up).
45°
