Operational Procedures

Cleaning the Print Head

Once the unit is opened, the ticket path is accessible for cleaning or clearing tickets. Use a soft brush to
clean the paper dust from inside the printer and chassis area. The paper dust should also be removed from
the sensor optics. If streaking on the printed ticket is evident, the thermal print head may need to be cleaned.
This can be done by inserting a thermal printer cleaning card.

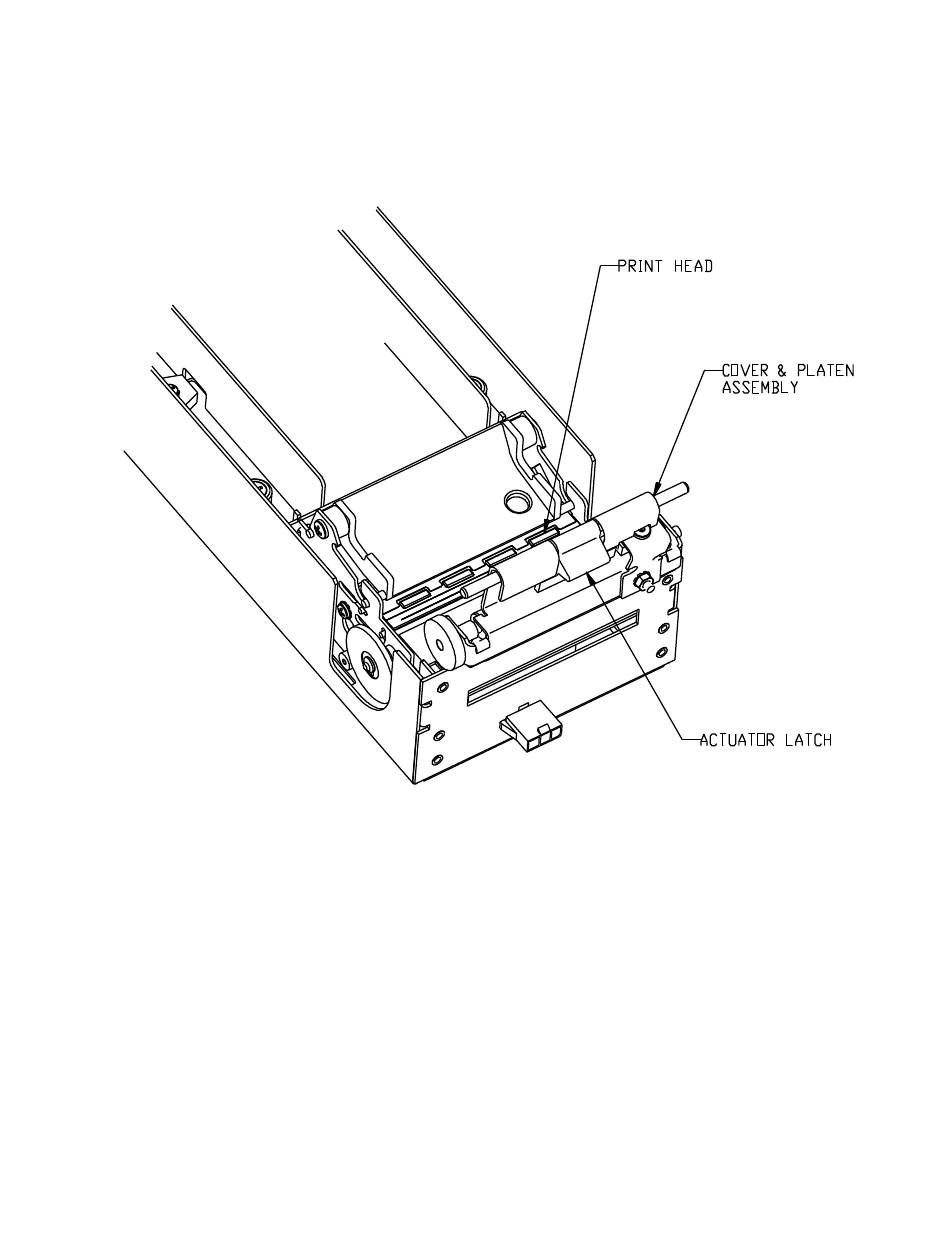

Figure 16 Cleaning the Printhead

1. Press the feed button, or open the plastic actuator latch and remove all tickets from ticket feed path to
expose the print head.
2. Press the green label to relatch the platen assembly.
3. Open cleaning card pouch and remove cleaning card.
4. Insert cleaning card into feed path.
5. The cleaning card will automatically be drawn into the feed path.
6. Repeat process if necessary.
7. Properly dispose of used cleaning card.
Cleaning cards are available through TransAct or can also be purchased direct from Enefco International
Ltd. at (888) 578-0141.
Description:
2.5" x 6" Thermal Cleaning Card (box of 25)
2.5" x 6" Thermal Cleaning Card (box of 25)
Mar-03
Confidential Information: Not for Distribution.
Series 800 Maintenance Manual
Part Number:
100-03322 (TransAct)
GTP250PB (Enefco)
Rev C Page
23
