Series 800 Maintenance Manual
Operational Procedures
Loading Tickets into Feeding Mechanism
When loading new ticket stacks, be sure that the printer mechanism assembly has been unseated from the
outer slide chassis's racking retainers, and there is power to the printer. The first ticket of the stack must be
inserted into the printer by hand. The Series 800 Printers' Ticket Supply Box is integrated with a guide to
direct the ticket into the printer mechanism. Once the leading ticket enters the TOP OF FORM sensor, the
ticket will be automatically fed into the Printer Mechanism Assembly.

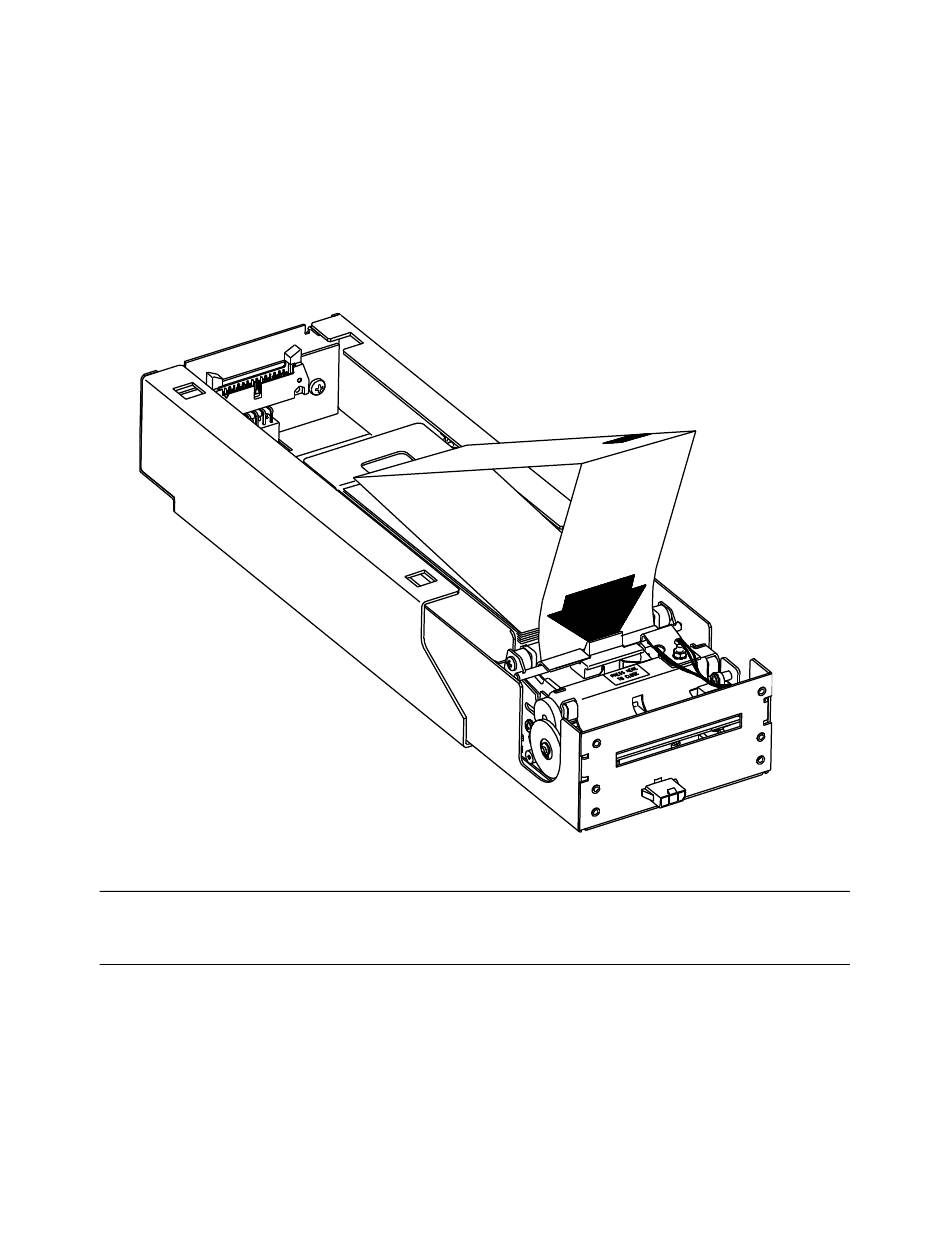

Figure 13 Ticket Loading and Ticket Feed Mechanism
Loading tickets into the ticket supply box: (Refer to the label on printer)
•
Load tickets into the ticket supply box sensitized side down (make sure Black Dot is facing you).
•
Orientate the tickets so that the Black Dot is towards the leading edge of the ticket.
Feeding tickets into the Printer Mechanism Assembly: (Refer to the label on printer)
1.
Check to ensure that the tickets have been placed in the ticket supply box with the proper black dot
orientation.
2.
Insert the leading ticket into the Printer Mechanism Assembly's insertion guide area. The ticket should
be fed about a ½" into the mechanism; at this time, the machine automatically completes the feeding
process.
Page
20
Confidential Information: Not for Distribution.
Rev C
Operational Procedures
Mar-03
