Sensors
Open/Close Position Sensor/Audible Alarm
The printer has an OPEN/CLOSE POSITION sensor to determine if the Printer Mechanism Assembly is in
the full-racked position. If the Printer Mechanism Assembly is not in the fully racked position, then the
printer status LED will blink indicating the printer is not ready.
1. Open/Close Position Sensor (Sliding Module).
2. Audible Alarm Buzzer (PIEZO - game controlled).

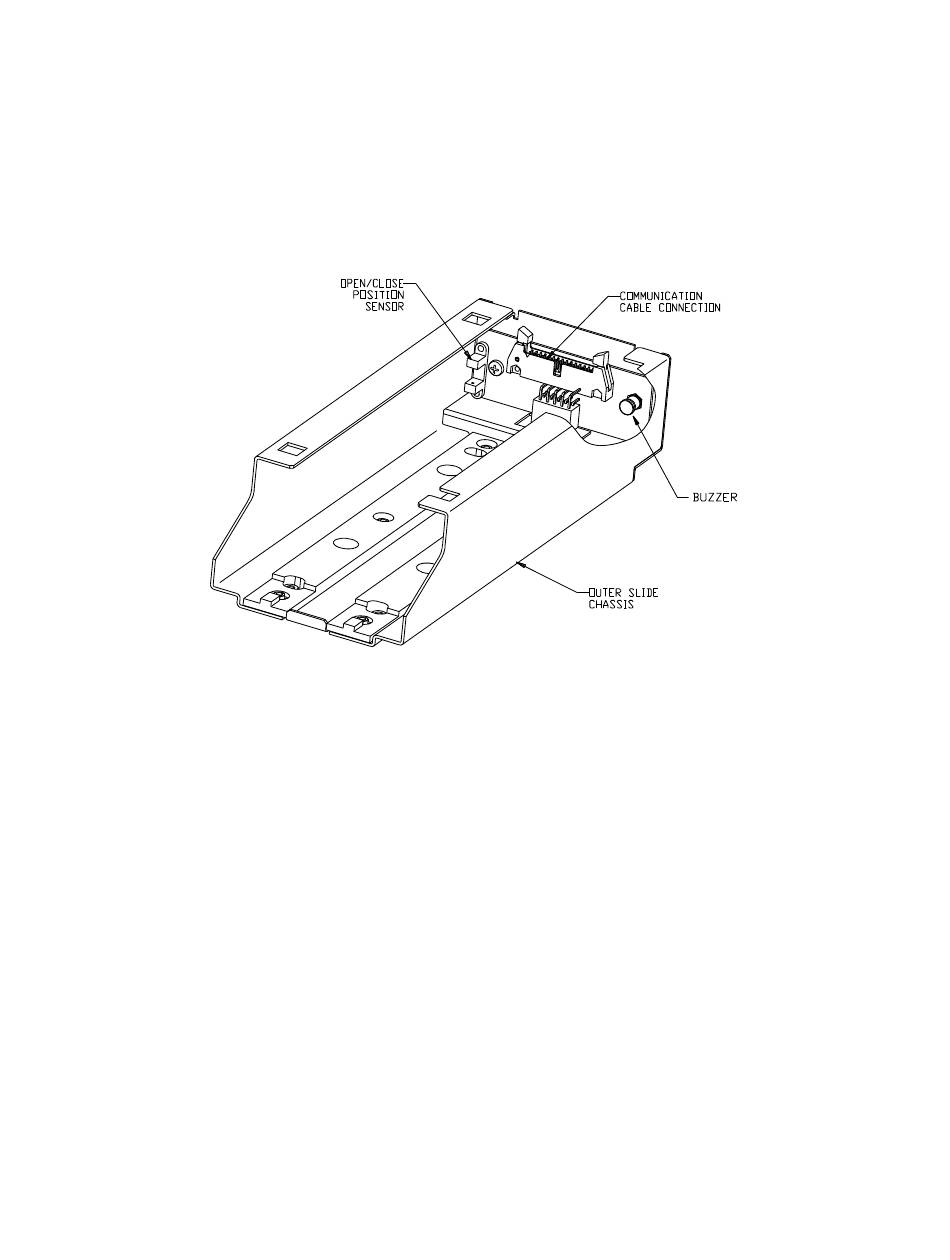

Figure 9 Open/Close Position/Audible Alarm
Mar-03
Rev C
Page
15
