Series 800 Maintenance Manual
Mounting Requirements
Custom Bezel Specifications and Recommendations
Custom Bezel to Printer Mechanism Mounting points
Series 800 printers are designed to accomodate a customer supplied bezel assembly that is mounted

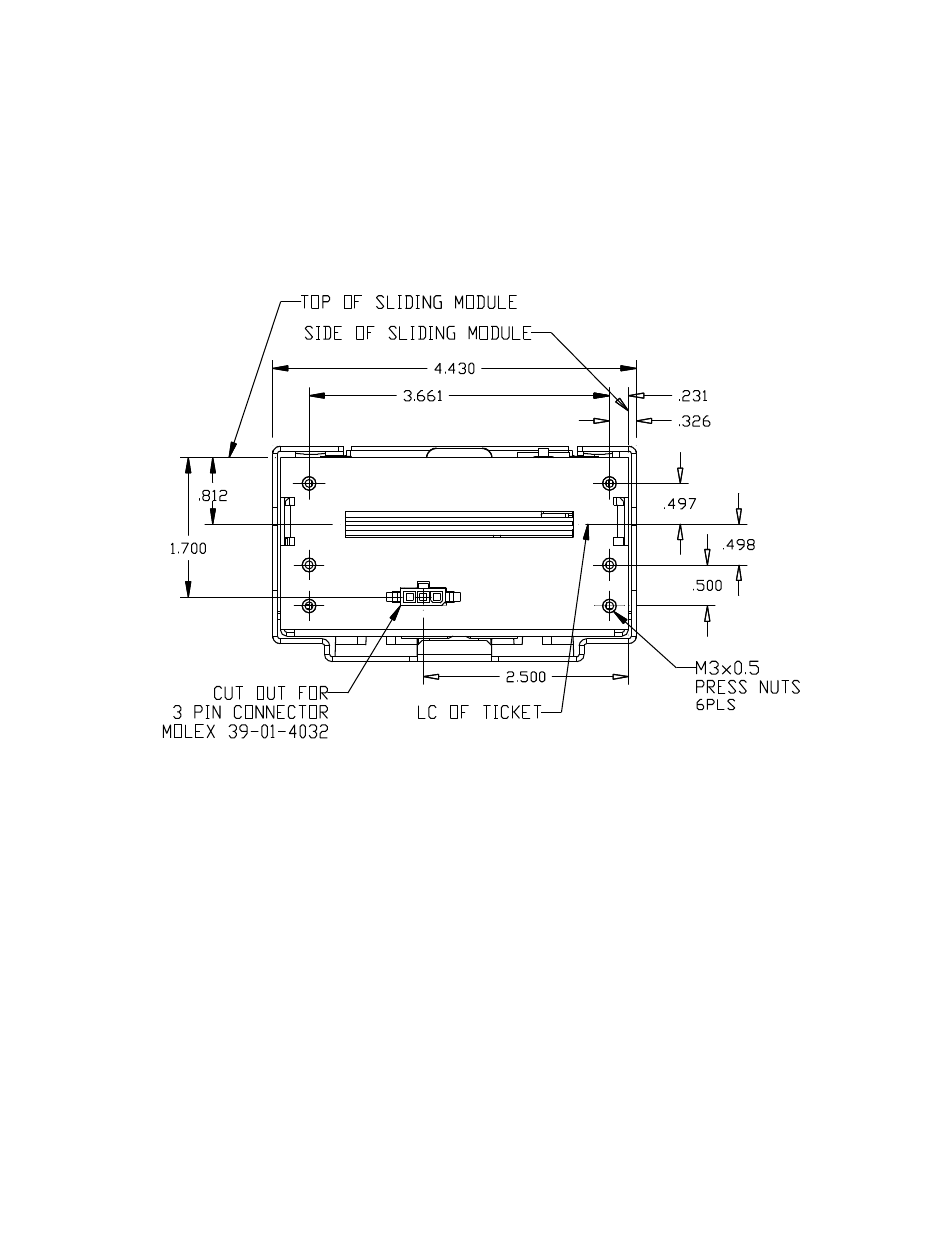

following the hardware and mounting dimensions as listed. The following drawing shows the positioning
and dimensions of the Series 800 printer's mounting points.
Front:
6x M3x 0.5 press nuts and interface with custom bezel
Figure 7 Custom Bezel Mounting and Hardware Requirements
Mar-03
Rev C
Page
13
Confidential Information: Not for Distribution.
