Series 800 Maintenance Manual

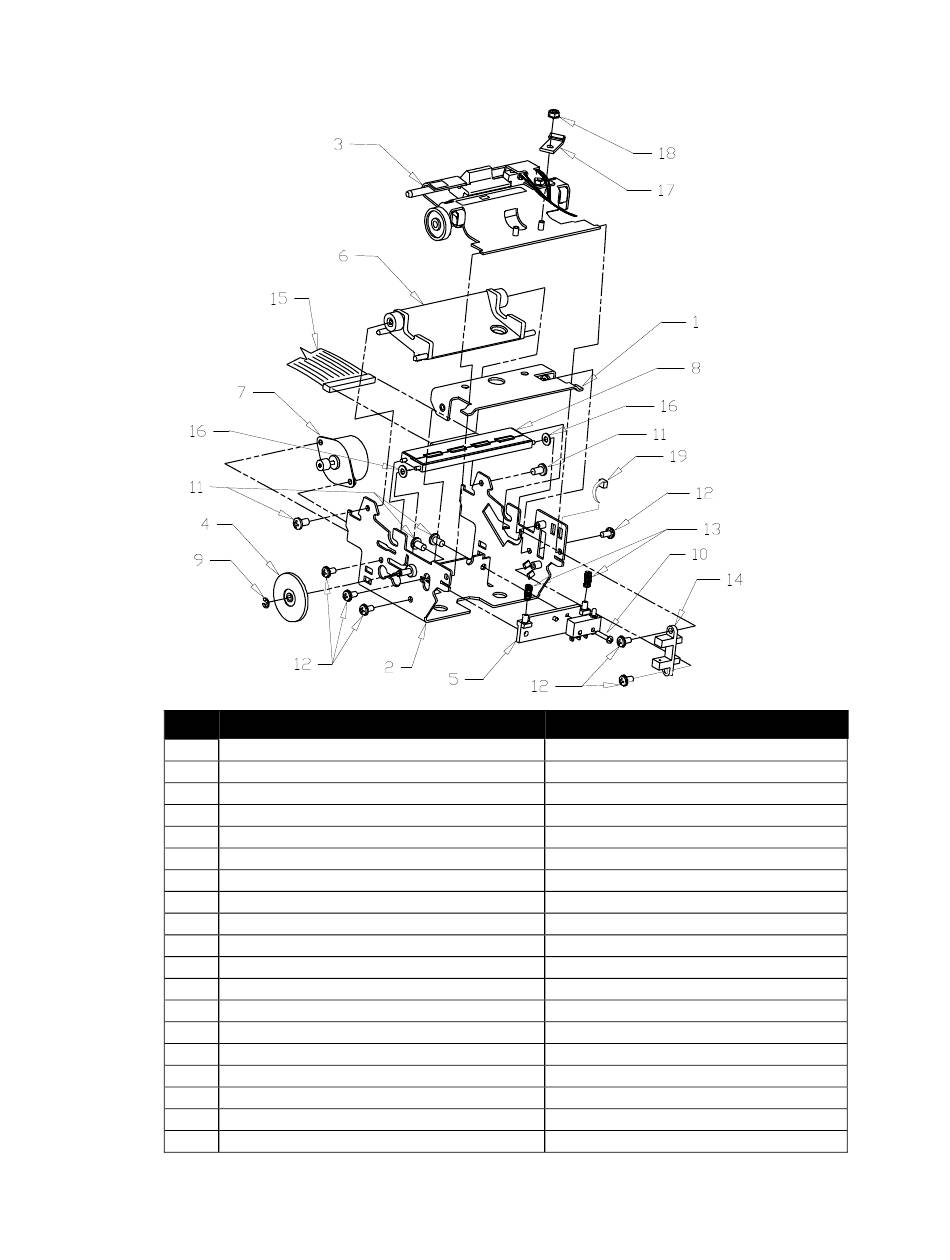

Print Mechanism Assembly
No. Description (standard parts)
1 Bracket-Front Lower-Paper
2 Chassis-Printhead
3 Cover & Platen Assembly
4 Gear-54/16 Tooth
5 Guide-Printhead Spring
6 Guide-Rear-Paper
7 Harness Assy-Motor and Switch
8 Printhead-Thermal
9 Ring-Retaining
10 Screw-2-28X7/16 Ph Phl Selftap
11 Screw-6-18X1/4 Ph Phl Selftap
12 Screw-M3X0.5X6 Ph Phl Sem
13 Spring-Compression-Printhead
14 Switch Assy-Ticket Taken
15 Harness Assy-16 Pos.
16 Spacer-Pivot Pin
17 Clip-Wire Harness WHC-125-01
18 Nut-M3 Hex w/Lockwasher
19 Tywrap
Page
32
Confidential Information: Not for Distribution.
Part No. (History)
M068278-02
M068266-02
RM034656-01
M068272-01
M068271-01
M068312-02
RM034654-01
M067832-03
520-9800002
M067908-01
M067883-03
98-02215
M068279-01
RM034659-01
M034650-01
09-1283
98-03559
98-0621
98-0941
* Not available as a spare part
