Series 800 Maintenance Manual
Printing Specifications
Print Method:
Ticket Handling:
Print Speed:
Paper advance speed:
Resolution:
Dot Pitch-Horizontal:
Dot Pitch-Verticle:
Line Feed Pitch:
Characters per line:
No. of Elements:
Print Width:
Data Buffer:
Memory:
Ticket Specifications

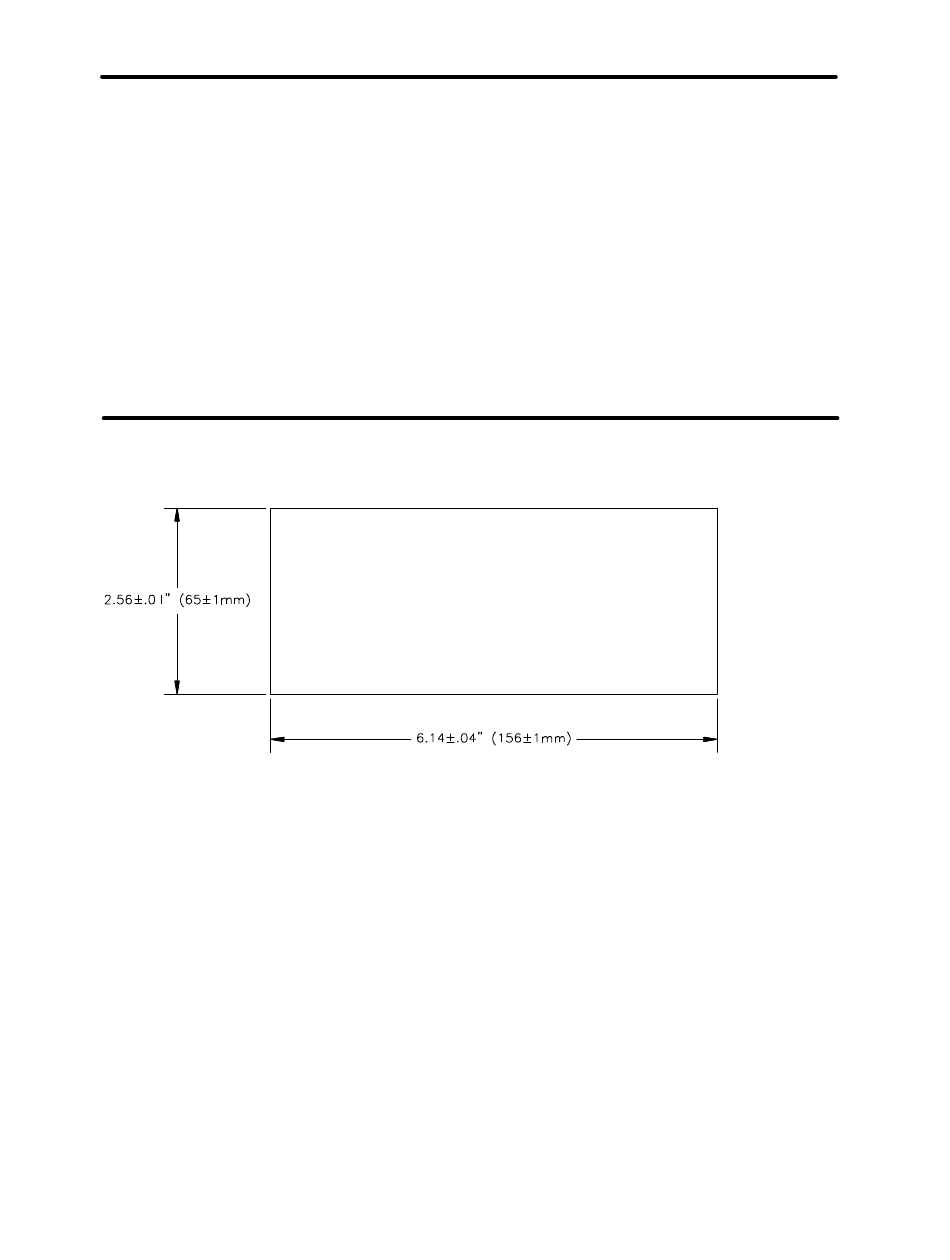

Dimension: (same size as US dollars)
Ticket Width:
Ticket Length:
Ticket Thickness:
Ticket Weight:
Reading Code:
Minimum Bar Width:
W : N Ratio:
Letter Quantity:
PCS Value:
Printing Ink:
Optical Reflection Level:
Amplitude Level:
Waveform Distortion:
Transmission Level:
Page
8
Confidential Information: Not for Distribution.
Thermal Sensitive Line Dot System.
Straight. Entire path is accessible.
125 mm/sec. (5" per sec.) max. (in text mode)
125 mm/sec. (5" per sec.) min.
203dpi x 203dpi and 136dpi x 203dpi.
0.125 mm (8 dots/mm)
0.125 mm (8 dots/mm)
3.2 mm (.125")
30 min.
500 dots in-line
62.5 mm (2.46")
8K
256K EPROM & 128K RAM
65 ± .75mm (2.56" ± .03")
156 ± 1mm (6.14" ± .04") between perforations
4.5 mils (114 microns)(.0045 inches)
2
27# (102 g/m
) Ave.
Interleaved. 2 of 5
0.5 mm min./0.6 max.
3 : 1
6 min./18 max.
0.6 min.
BLACK: (visible light absorbtion: 600 ~ 700 nm)
White thick bar: 3.0V min. Black thick bar: 2.0V max.
0.5V (white and black bar).
0.3V max.
Level 1: 1.3V max. Level 2: 0.5V min.
Rev C
Specifications and Requirements
Mar-03
