Default Communication Settings

The RS-232C interface default configuration settings are:
Baud Rate:
Data Bits:
Parity:
Stop Bits:
Handshaking:
Receive Error:
Input Buffer
These communications settings may be altered only through the use of special printer configuration
software. Contact TransAct for availability.

Bezel Lamp Connector

The bezel connector is a Molex Minifit Jr®, part number 39-01-4032 and will mate with a Molex part
number 39-01-4030 or equivalent.

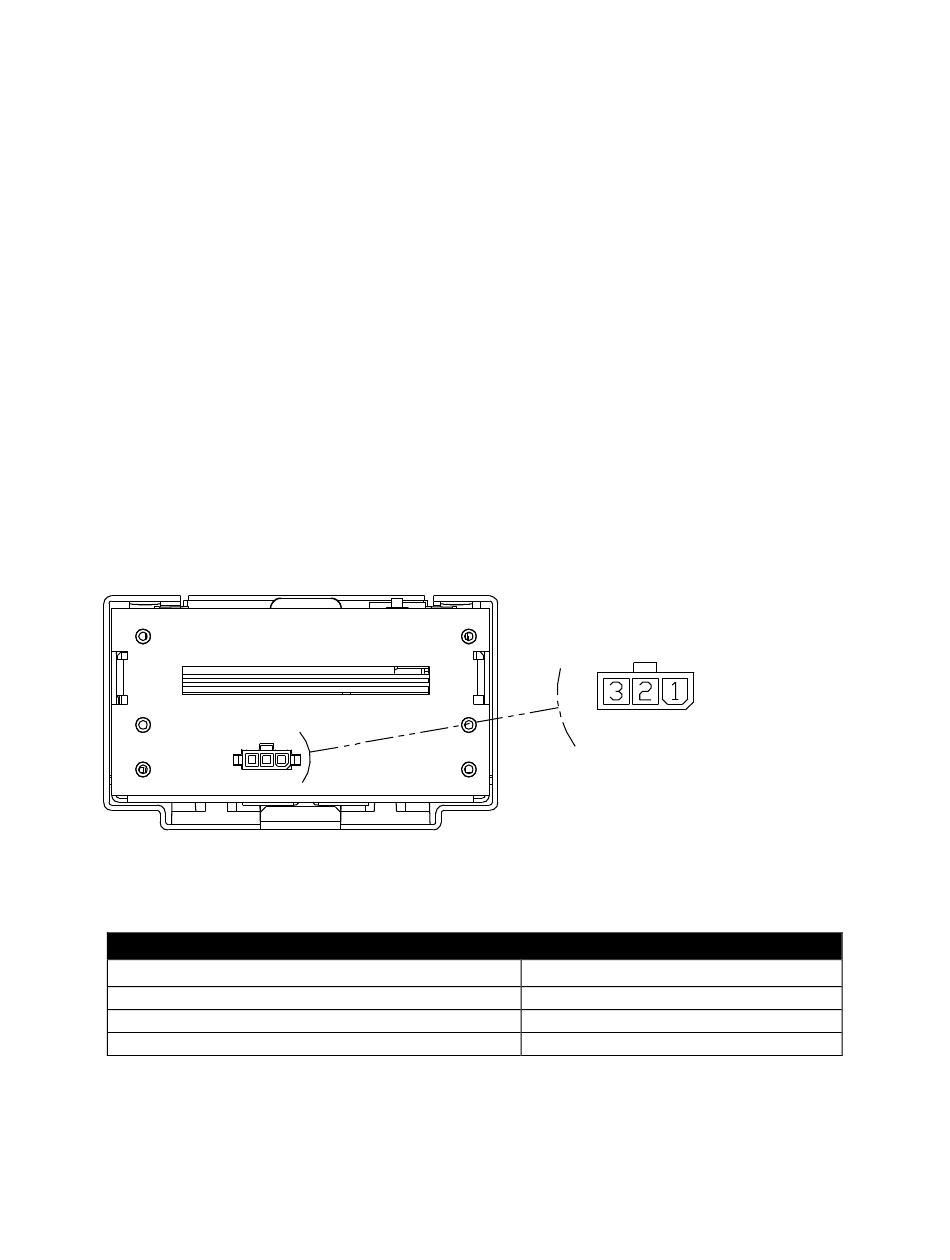

Figure 11 Bezel Lamp Connector Location and Connector Information

Bezel Lamp Connector Pin-Outs
PIN #
1
2
3

Table 4 Bezel Power Connector Pin-Outs

Page
18
Confidential Information: Not for Distribution.
9600 BPS
8 Bits
None
1
XON/XOF
Prints '?'
8,192 bytes
Rev C
Electrical Connections
FUNCTION
Modulated +24VDC
Not Connected
GND
Mar-03
