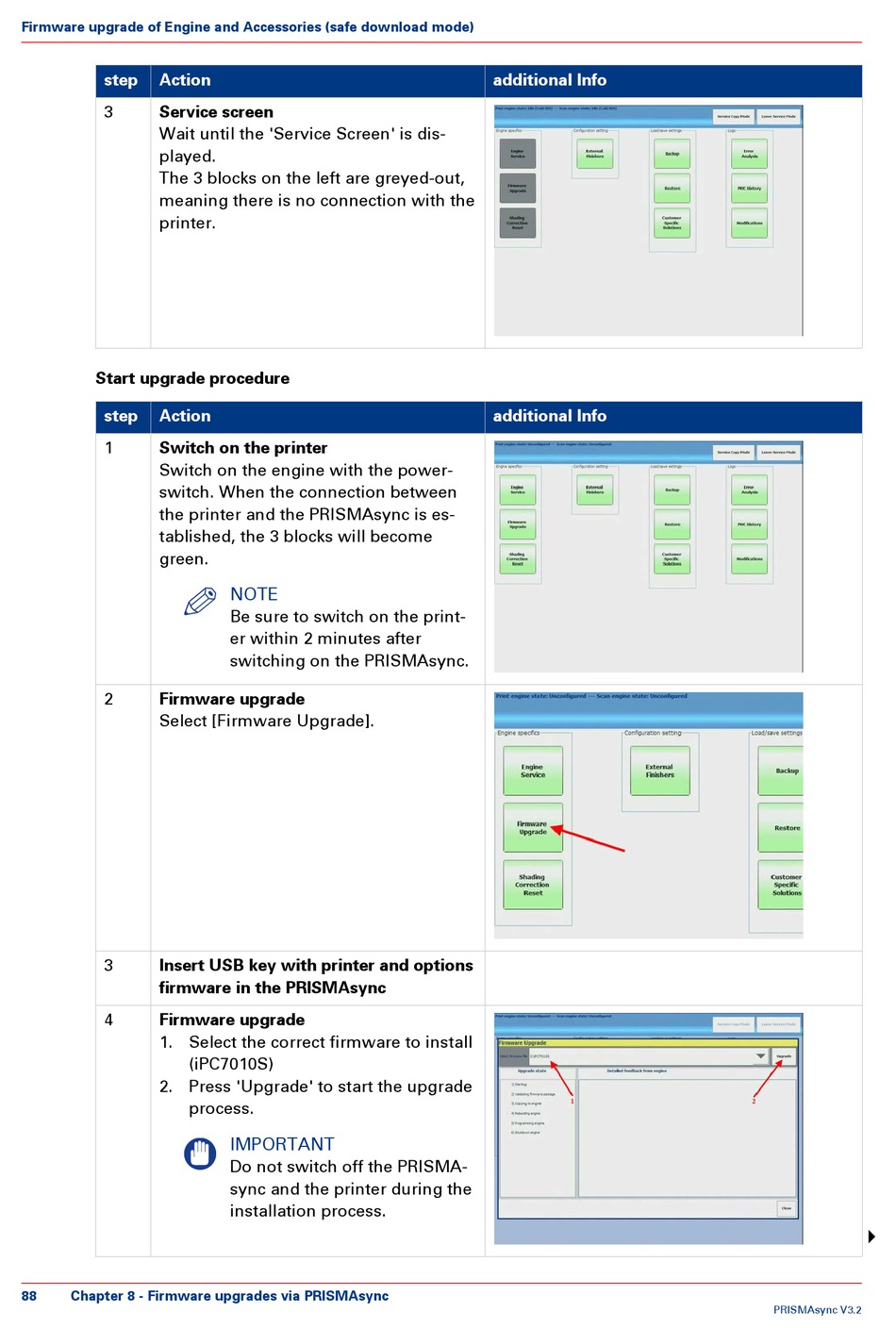

Canon PRISMAsync v3.2 Technical & Service Manual page 88

Firmware upgrade of Engine and Accessories (safe download mode)
step Action
Service screen
3
Wait until the 'Service Screen' is dis-
played.
The 3 blocks on the left are greyed-out,
meaning there is no connection with the
printer.
Start upgrade procedure
step Action
1 Switch on the printer
Switch on the engine with the power-
switch. When the connection between
the printer and the PRISMAsync is es-
tablished, the 3 blocks will become
green.
2 Firmware upgrade
Select [Firmware Upgrade].
Insert USB key with printer and options
3
firmware in the PRISMAsync
Firmware upgrade
4
1. Select the correct firmware to install
(iPC7010S)
2. Press 'Upgrade' to start the upgrade
process.
88 Chapter 8 - Firmware upgrades via PRISMAsync
NOTE
Be sure to switch on the print-
er within 2 minutes after
switching on the PRISMAsync.
IMPORTANT
Do not switch off the PRISMA-
sync and the printer during the
installation process.
additional Info
additional Info
4
PRISMAsync V3.2
