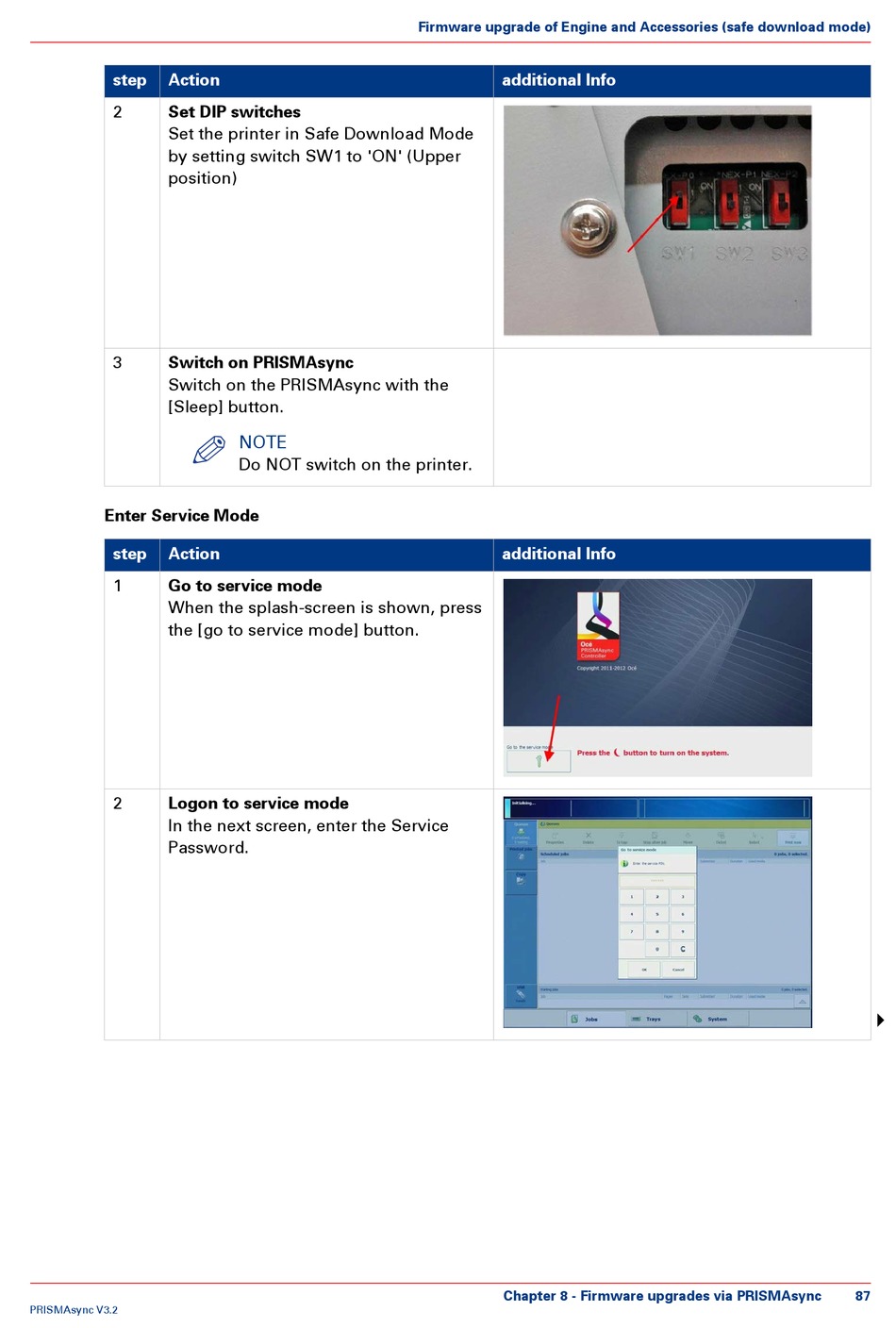

Canon PRISMAsync v3.2 Technical & Service Manual page 87

step Action
Set DIP switches
2
Set the printer in Safe Download Mode
by setting switch SW1 to 'ON' (Upper
position)
Switch on PRISMAsync
3
Switch on the PRISMAsync with the
[Sleep] button.
Enter Service Mode
step Action
Go to service mode
1
When the splash-screen is shown, press
the [go to service mode] button.
2 Logon to service mode
In the next screen, enter the Service
Password.
PRISMAsync V3.2
NOTE
Do NOT switch on the printer.
Firmware upgrade of Engine and Accessories (safe download mode)
additional Info
additional Info
Chapter 8 - Firmware upgrades via PRISMAsync
4
87
